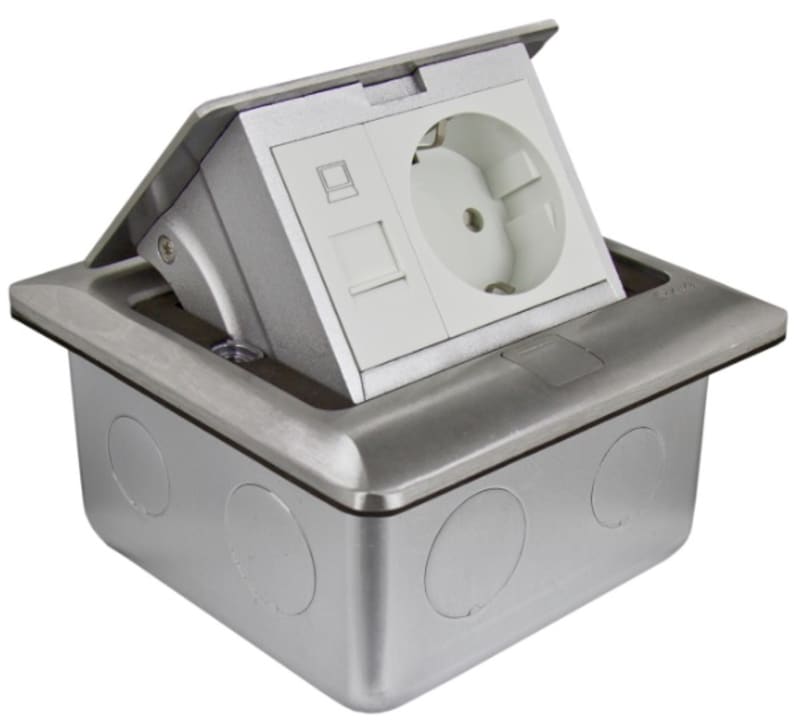

Floor Box with 1 Schuko Socket and RJ45, IP44, Metal
Pricing
Request a quote
We reply within 24 hours
Product Description
Square floor box, spring-loaded, with 1 Schuko outlet and 1 RJ45 outlet, IP44, metal construction.
Technical Specifications
- Manufacturer part number (MPN)
- INS52172
- EAN / GTIN
- 3606489938307
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Colour
- Silver
- Outer diameter
- 120 mm
- Number of device cups
- 1
- Built-in diameter
- 142 mm
- Housing material
- Stainless steel
- Material
- Aluminium die-cast
- Number of inlets
- 8
- Suitable for concrete installation
- Yes
- With opening carpeting
- No
- Protective frame carpeting
- No
- Width outside dimension
- 120 mm
- Width built-in dimension
- 100 mm
- Length external dimension
- 120 mm
- Length built-in dimension
- 100 mm
- Min. built-in depth
- 62 mm
- Suitable for wet cleaning
- Yes
- Depth of flooring recess
- 62 mm
- Material cover
- Stainless steel
- Degree of protection (IP)
- IP44
- Suitable for subfloor duct
- No
- Suitable for hollow floor
- Yes
- Suitable for double floor built-in
- Yes
- Cover model
- Square
- Suitable for indoor installation
- Yes
- Suitable for outdoor installation
- No
- Surface protection cover
- Untreated
- Surface treatment cover
- Brushed
- With cable outlet in cover
- No
- Suitable for floors in computer rooms
- Yes
- Lockable cover
- Yes
- Cover load
- 6.5 kN
- Surface protection housing
- Untreated
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489938307
- SAP 1200458093
- Code 82532892
