Schneider Electric Mureva Styl MUR35033 Surface Switch 2-Pole 1-Way 16 AX IP55
Pricing
Request a quote
We reply within 24 hours
Product Description

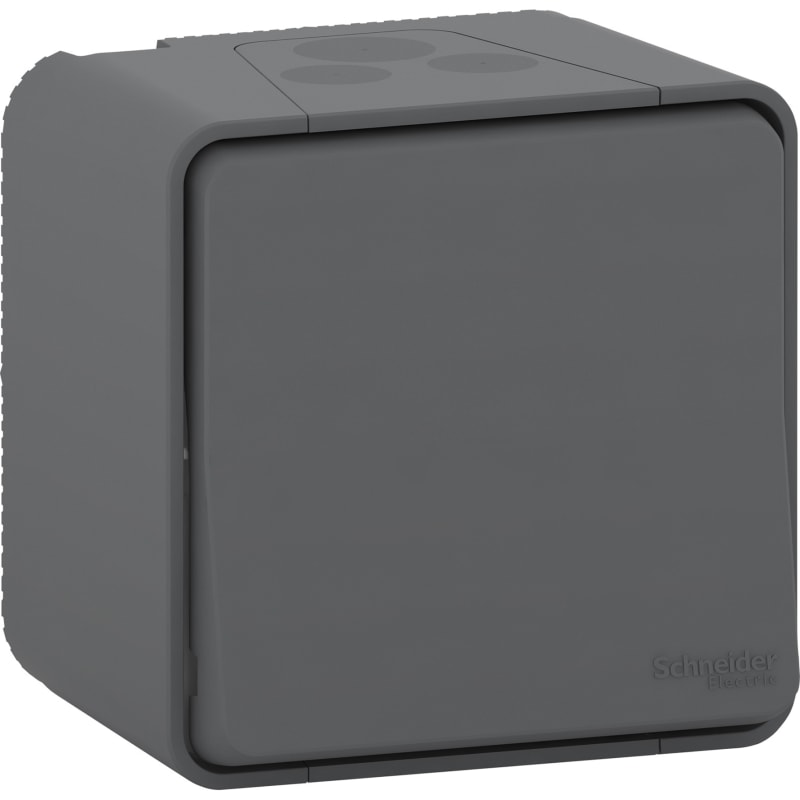

Schneider Electric Mureva Styl MUR35033 is a surface-mounted 2-pole 1-way switch rated 16 AX at 250 V with electromechanical rocker actuation. The anthracite (RAL 7016) housing is rated IP55 / IK08 for indoor and outdoor installation.
Technical Specifications
- Manufacturer part number (MPN)
- MUR35033
- EAN / GTIN
- 3606480789175
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 2
- Range
- Mureva Styl
- Range of product
- Mureva Styl
- Product or component type
- Switch
- Colour tint
- Anthracite (RAL 7016)
- Device presentation
- Complete product
- Device mounting
- Surface
- surface treatment
- Untreated
- Surface finish
- Matt
- Switch function
- 2-pole 1-way
- [Ue] rated operational voltage
- 250 V
- Marking
- 0 - 1
- Rated current
- 16 AX
- Technology type
- Electromechanical
- fixing mode
- By screws
- Load type
- Load for energy saving lamps with ballast: 200 W
- Number of rocker
- 1
- Actuator
- Rocker
- Cable entry
- Easy valve access diameter: 6…20 mm
- Clamping connection capacity
- 1.5...2.5 mm² for rigid cable(s); 1.5...2.5 mm² for stranded cable(s); 1.5...2.5 mm² for flexible cable(s)
- Connections - terminals
- Screwless terminals
- Width
- 76 mm
- Height
- 76 mm
- Depth
- 64 mm
- Projecting depth
- 64 mm
- Material
- ABS (acrylonitrile butadiene-styrene); SEBS; Brass
- Condition of use
- Indoor/outdoor
- Wire stripping length
- 13 mm
- Chemical and detergent products resistance
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- Quality labels
- EAC; AENOR; NF; CE
- IP degree of protection
- IP55
- IK degree of protection
- IK08
- Flame retardance
- Self-extinguishing 650 °C conforming to IEC 60695-2-1
- Standards
- EN 60669-1
- Ambient air temperature for operation
- -5…40 °C
- Ambient air temperature for storage
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480789175
- SAP 1200200570
- Code 82136937
