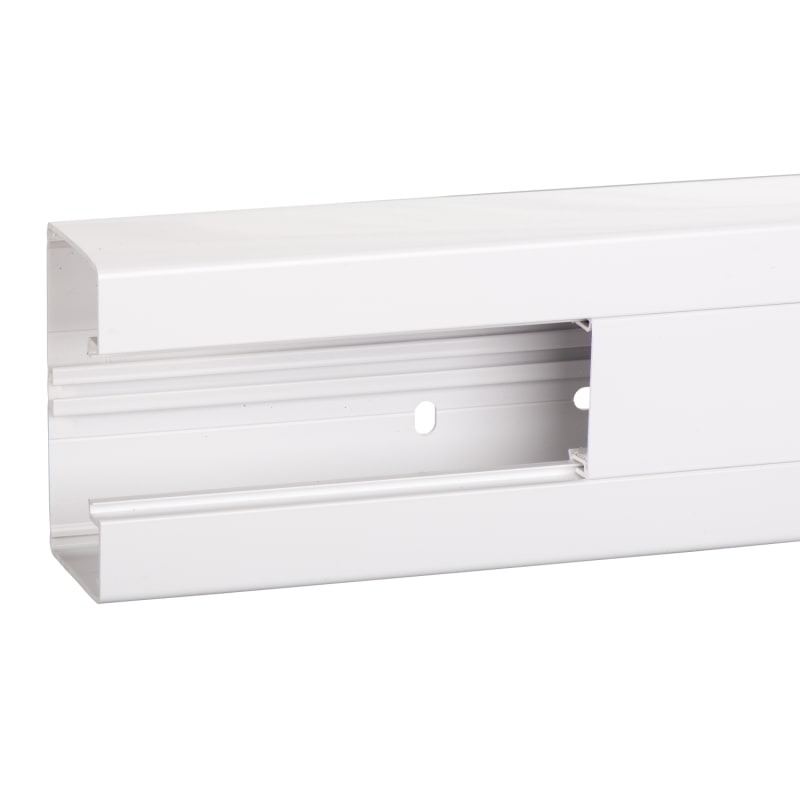

Schneider Electric ISM10200P OptiLine 45 - installation trunking - 95X55 mm - PVC - polar white - 2000 mm
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric ISM10200P OptiLine 45 - installation trunking - 95X55 mm - PVC - polar white - 2000 mm is listed under Control & Automation / Conduit & Trunking. Sales unit: m; Package quantity: 6 m; Range of product: OptiLine 45; Cabling installation system: Trunking; Product or component type: Installation trunking; Colour tint: Polar white (RAL 9003).
Technical Specifications
- Manufacturer part number (MPN)
- ISM10200P
- EAN / GTIN
- 3606480681585
- Sales unit
- m
- Package quantity
- 6 m
- Range of product
- OptiLine 45
- Cabling installation system
- Trunking
- Product or component type
- Installation trunking
- Colour tint
- Polar white (RAL 9003)
- Quantity per set
- 12 m
- Trunking material
- Plastic
- Trunking dimension
- 95 x 55 mm
- Compartment partitioning
- 1 compartment
- Mounting location
- Internal
- fixing mode
- By screws
- Front opening size
- 45 mm
- Material
- PVC (polyvinyl chloride)
- Length
- 2000 mm
- Height
- 95 mm
- Width
- 55 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-2-1:2002; NF C 68-102
- Ambient air temperature for operation
- -25…60 °C
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.500 cm
- Package 1 Width
- 9.500 cm
- Package 1 Length
- 200.000 cm
- Package 1 Weight
- 1.934 kg
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 6
- Package 2 Height
- 12.500 cm
- Package 2 Width
- 28.500 cm
- Package 2 Length
- 204.000 cm
- Package 2 Weight
- 12.748 kg
- Unit Type of Package 3
- PAL
- Number of Units in Package 3
- 96
- Package 3 Height
- 64.000 cm
- Package 3 Width
- 120.000 cm
- Package 3 Length
- 210.000 cm
- Package 3 Weight
- 229.000 kg
- Warranty (in months)
- 18
- Depth
- 55 mm
- Number of covers
- 1
- Covers included
- Yes
- Cover width 1
- 45 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Material quality
- Polyvinyl chloride (PVC)
- Halogen free
- No
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Colour
- White
- RAL-number
- 9003
- Construction rear wall (inner side)
- Continuous other profile
- With protective foil
- Yes
- Number of plug-in partitions
- 1
- With duct connector
- No
- Bottom perforation
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Usable cross section
- 4505 mm²
- Degree of protection (IP)
- IP40
- Impact strength
- IK07
- Operating temperature
- -5–60 °C
- Country of origin
- United Kingdom
