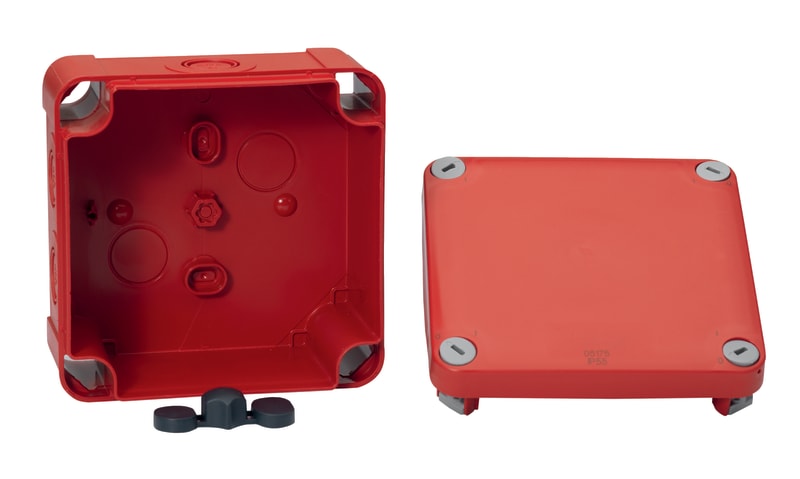

Schneider Electric Mureva BOX - security junction box - knock-out - 105X105X55 mm ENN05175
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ENN05175 Mureva Box - boîte dérivation 960° rouge -7x20/25 -int 105x105x55 ext 116x116x62.
Technical Specifications
- Manufacturer part number (MPN)
- ENN05175
- EAN / GTIN
- 3295150051751
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Dimensions
- 105×105×55
- product range
- Mureva BOX
- product type
- Junction box for security circuits
- quantity per package
- 5 pieces
- Main colour tint
- Red
- Mounting
- Surface
- cable entry
- Knock-out
- Fixing mode
- Screw-fixed: cover
- Inner dimensions
- 105 x 105 x 55 mm
- number of cable entries
- 4 x M16/20; 2 x M20/25; 7 x M12/16
- Material
- PP (polypropylene): body and cover
- Electrical insulation class
- Class II conforming to IEC 536
- Height
- 87 mm
- Width
- 121 mm
- Depth
- 121 mm
- Product weight
- 0.118 kg
- Colour tint
- Red (RAL 3000)
- operating temperature
- -25…40 °C
- IP-Class
- IP55 conforming to IEC 60529
- IK-Class
- IK07 conforming to EN 50102
- glow wire temperature
- 960 °C
- Standards
- EN 60670; CE
- Environmental characteristic
- Slightly halogenated
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
- Model
- Junction box
- RAL-number (similar)
- 3000
- Max. conductor cross section
- 16 mm²
- Shape
- Square
- Mounting method
- Wall-/ceiling mounting
- For tube diameter
- 20/25 mm
- Length
- 87 mm
- Number of inlets
- 13
- Type of housing feed-through
- Preembossing
- Surface protection
- Untreated
- Colour
- Red
- Degree of protection (IP)
- IP55
- Cover model
- Blind cover
- Cover attachment
- Screwed
- Circuit integrity
- None
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3295150051751
- SAP 1000758372
- Code 8518581
Product Documentation
More from Schneider Electric
Schneider Electric

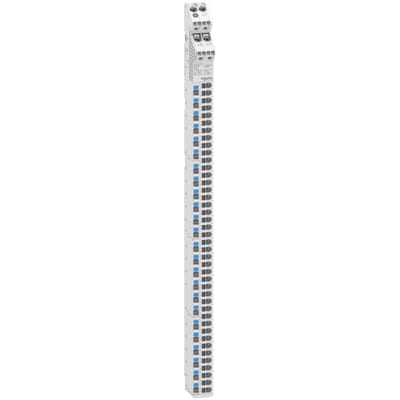

Schneider Electric Vertical distribution block, ACTI9 VDIS, 3L+N, 125A, 250/440VAC, 66 connection points A9XPK714
Schneider Electric

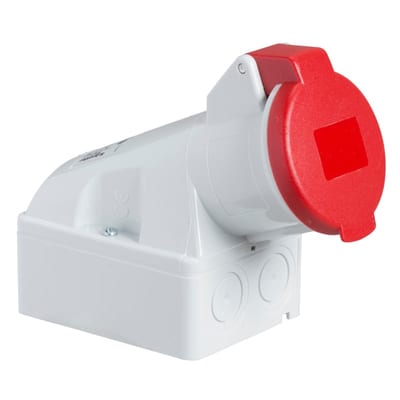

PratiKa Wall-Mounted Socket Outlet, Large, 32 A 4P+E 400 V (83121)
Schneider Electric

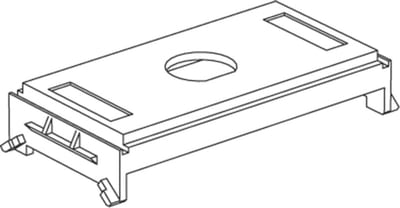

CYB-DP Keystone insert 2XDUPLEX SC59717
5971731
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 140A, 208 to 690V AC, control supply 110 to 230V AC ATS480C14Y
Schneider Electric

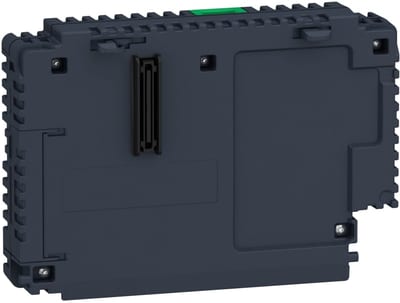

HMIGTU Prem BOX, Univ. Panel
HMIG3U
Schneider Electric

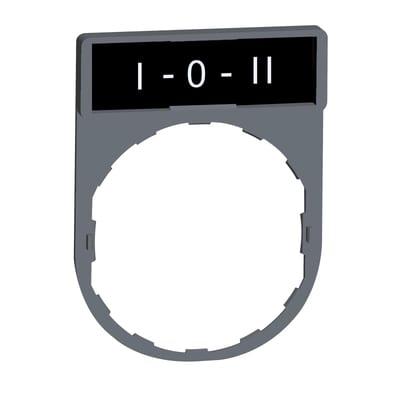

Sign Frame grey with sign+text (ZBY2186C0)
Schneider Electric

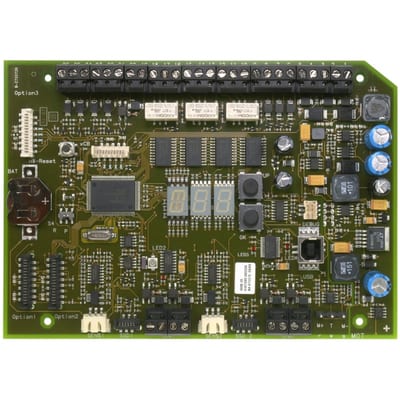

ASD 535 -1 and -3 hovedkort. AMB35-1
FFS06432585
Schneider Electric

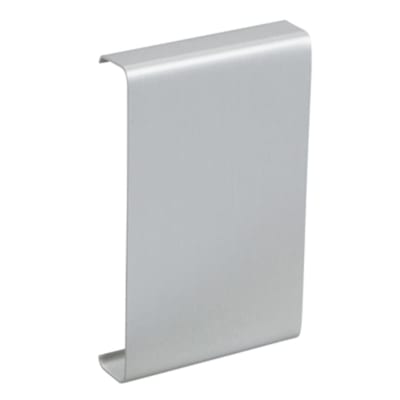

Schneider Electric TTI-US101 AN Joint Cover for INKA Aluminium Trunking
