HMIGTU Prem BOX, Univ. Panel

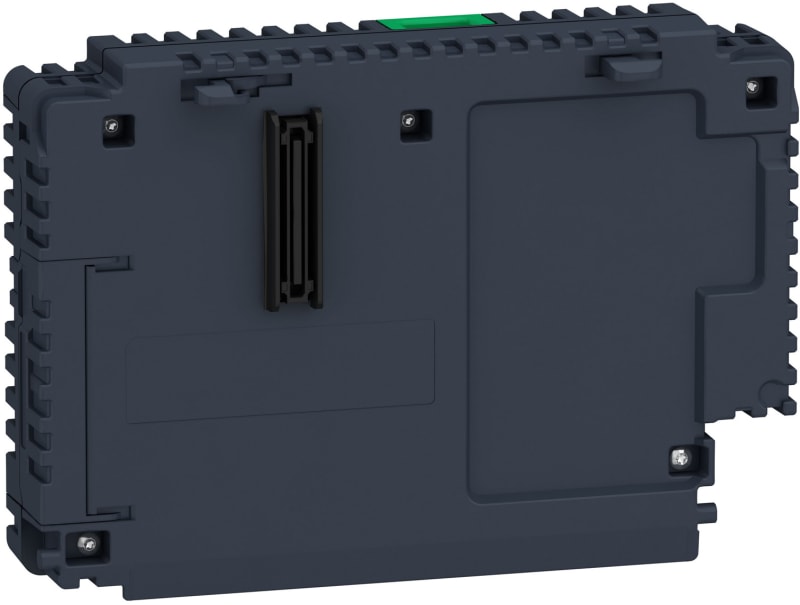

Schneider Electric HMIG3U HMIGTU BOX, Universal Panel.

Manufacturer part number (MPN)

HMIG3U

EAN / GTIN

3606480687204

Sales unit

pcs

Range of product

Harmony GTU

Product or component type

Base unit

Device short name

Premium Box

Range compatibility

Harmony GTU

[Us] rated supply voltage

12...24 V DC power supply

Integrated connection type

Ethernet TCP/IP with 2 RJ45; COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s; COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s; COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s; COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s; Auxiliary port terminal block; Expansion unit fieldbus card; USB 2.0 port with 2 USB type A; USB 2.0 port mini B USB

Communication port protocol

Modbus; Modbus TCP/IP; Uni-Telway

Software package

Vijeo Designer

Processor name

ARM Cortex-A9

Data storage equipment

1 GB SD card

Port Ethernet

10BASE-T/100BASE-TX/1000BASE-T

Memory description

256 MB RAM internal (2 x 13 mm board); 512 KB NVRAM backup memory

Type of cooling

Natural convection

Width

188 mm

Height

131 mm

Depth

45 mm

Product weight

0.9 kg

Standards

CSA C22.2 No 142; ANSI/ISA 12-12-01; UL 508; Class I division 2 CSA C22.2 No 213; IEC 61132-2

Product certifications

CE; CULus; ATEX; IEC-Ex; RCM; GL; KC; CUL; EAC; ABS; BV; CCS; DNV; LR; RINA; UKCA; UKEX

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-20…60 °C

Pollution degree

2 conforming to IEC 61131-2 ed.3

Relative humidity

10…90 % non-condensing

Operating altitude

2000 m

Vibration resistance

3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

14.500 cm

Package 1 Width

21.500 cm

Package 1 Length

26.500 cm

Package 1 Weight

1.196 kg

Unit Type of Package 2

S04

Number of Units in Package 2

4

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

5.943 kg

Unit Type of Package 3

P06

Number of Units in Package 3

16

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

32.772 kg

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

2

Number of HW-interfaces USB

2

With SW interfaces

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

TFT

Colour display

Yes

Usable project memory/user memory

256000 kByte

With numeric keyboard

No

With alpha numeric keyboard

No

Touch technology

Resistive touch

With touch screen

No

With message indication

No

With message system (incl. buffer and confirmation)

No

Process value representation (output) possible

Yes

Process default value (input) possible

No

With recipes

Yes

With printer output

Yes

Number of online languages

10

Additional software components, loadable

No

Degree of protection (IP), front side

IP67

Operating temperature

0–60 °C

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Suitable for safety functions

No

Width of the front

188 mm

Height of the front

131 mm

Built-in depth

45 mm

HS Code

8537.10

• EAN 3606480687204
• SAP 1000641236
• Code 8174861
