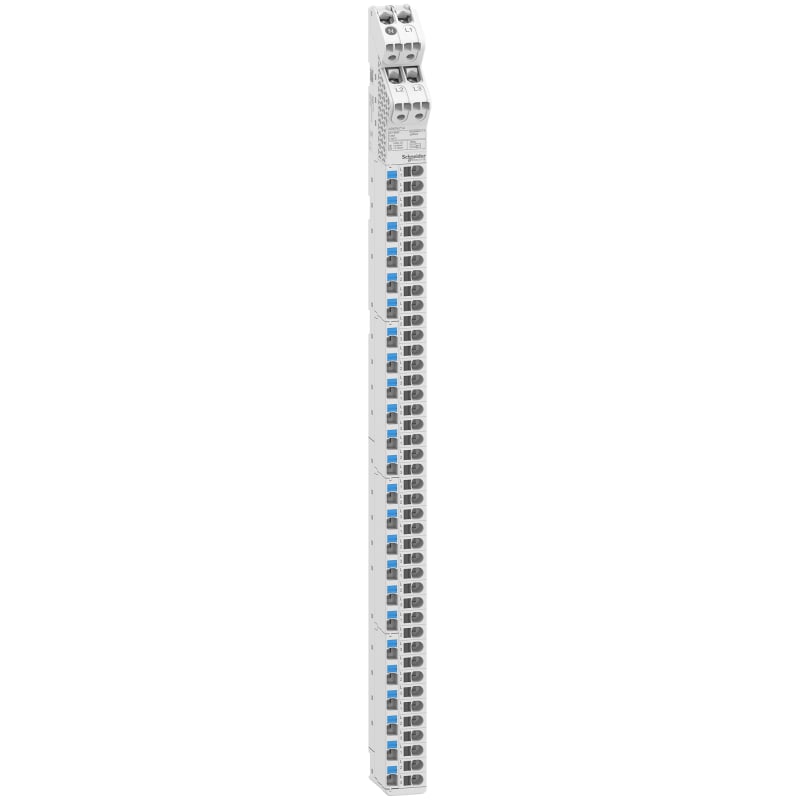

Schneider Electric Vertical distribution block, ACTI9 VDIS, 3L+N, 125A, 250/440VAC, 66 connection points A9XPK714

Schneider Electric A9XPK714 Acti 9 VDIS vertical distribution block 66 hole.

Manufacturer part number (MPN)

A9XPK714

EAN / GTIN

3606489667580

Sales unit

pcs

Range

Acti9

Product name

Acti9 VDIS

Product or component type

Vertical distribution block

Range compatibility

Pragma; Prisma G; Prisma Pack 250; Prisma Pack 160; PrismaSeT S

Lines description

3L + N

[In] rated current

125 A

[Ue] rated operational voltage

250/440 V

Network type

AC

Network frequency

50/60 Hz

[Ui] rated insulation voltage

500 V

[Uimp] rated impulse withstand voltage

6 kV

Number of terminal blocks

1 with 66 outgoers

Connections - terminals

Supply: tunnel type terminals10…35 mm²; Distribution: push-in spring terminals1.5…10 mm² (rigid) ; Distribution: push-in spring terminals4…16 mm² (stranded) ; Distribution: push-in spring terminals1.5…16 mm² (flexible) ; Distribution: push-in spring terminals1.5…16 mm² (flexible with ferrule)

Distribution block outgoers

14 holes for per phase; 24 holes for neutral

Pollution degree

3

Height

680 mm

Depth

71.5 mm

Width

40.5 mm

Product weight

2.04 kg

IP degree of protection

IPxx B

Number of Units in Package 1

1

Number of Units in Package 2

54

Warranty (in months)

18

Nominal current

125 A

Mounting method

DIN rail

Connection type

Without screws

Number of inputs

4

Number of outputs

66

Number of poles

4

Contact safe

Yes

Suitable for fine strand conductors

Yes

Suitable for solid conductors

Yes

Suitable for stranded conductors

Yes

Suitable for fine strand conductors without cable end sleeve

Yes

Suitable for extra fine-strand conductors

Yes

Conductor cross section, input

10–35 mm²

Conductor cross section, output

1.5–16 mm²

Country of origin

China

HS Code

8536.90
