End feed 25A left-hand white
Pricing
Request a quote
We reply within 24 hours
Product Description

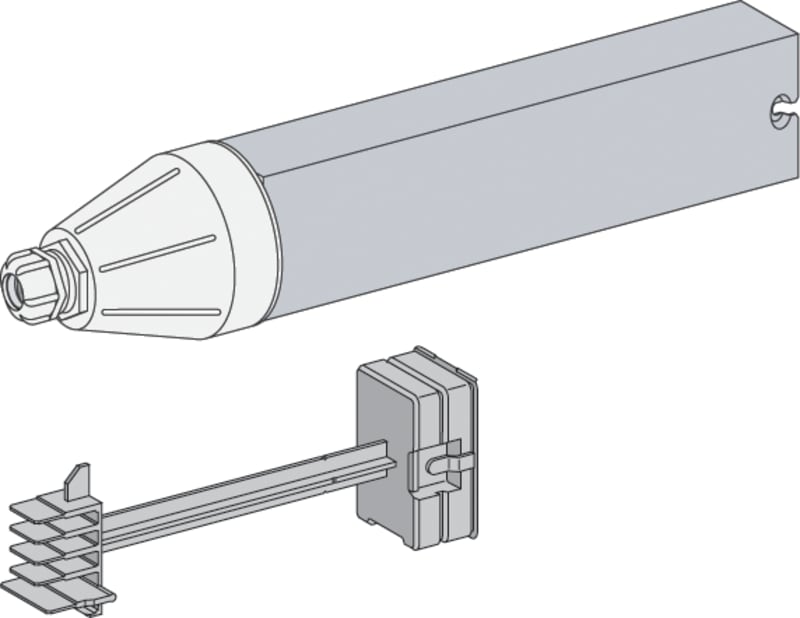

Schneider Electric KBA25ABG4W End feed 25A Left-hand White.
Technical Specifications
- Manufacturer part number (MPN)
- KBA25ABG4W
- EAN / GTIN
- 3606480498695
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Rated current
- 25 A
- Range of product
- Canalis
- Device short name
- KBA
- Product compatibility
- Canalis KBA busbar trunking 25 A
- Offer type
- Classic; Control system
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 25 A
- [Ue] rated operational voltage
- 230...400 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Communicating
- Communication port protocol
- DALI
- Colour
- White (RAL 9003)
- Provided equipment
- End cover
- Mounting location
- Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Connections - terminals
- Terminal block - Pg 16 - screw clamp connector for 4 mm²
- Width
- 273 mm
- Depth
- 57 mm
- Height
- 57 mm
- Product weight
- 200 g
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- Country of origin
- CZ
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9003
- Number of poles
- 5
- Length
- 273 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–400 V
- Rated current AC 50 Hz
- 25 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480498695
- SAP 1000470853
- Code 8932430
Product Documentation
More from Schneider Electric
Schneider Electric

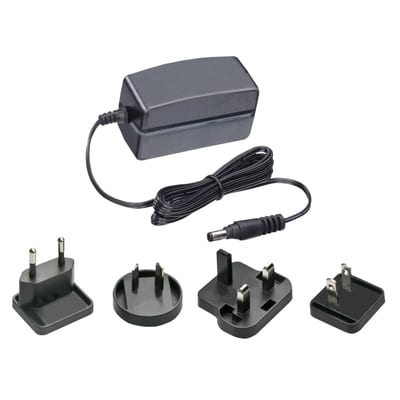

Schneider Electric Multicharger Power Supply (6W) 5 V DC/1.2A ZARC701
Schneider Electric

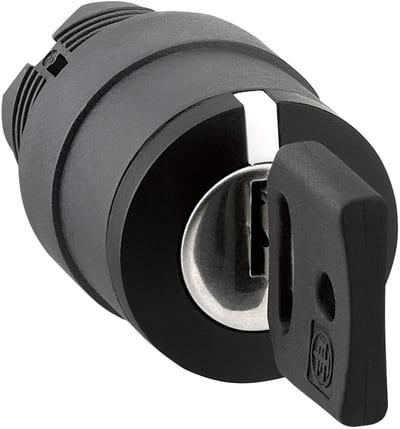

Schneider Electric Key selector switch head, Harmony XB5, plastic, black, 22mm, key 455, 3 positions, stay put ZB5AG3
Schneider Electric

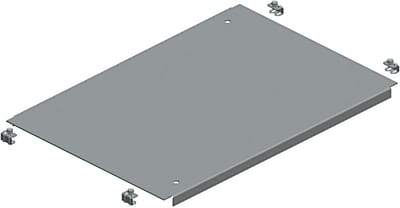

Gland Plate 8X5 (NSYEC85)
Schneider Electric
Mod insert 48M for 54X27PLS
NSYDLS48
Schneider Electric

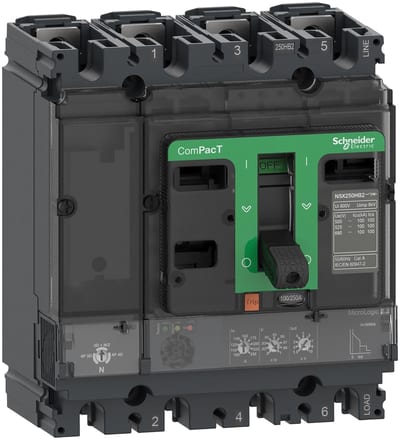

Schneider Electric Circuit breaker, ComPacT NSX250HB2, 100KA/690VAC, 4 poles, MicroLogic 2.2 trip unit 100A C25W42D100
Schneider Electric
WALL-Mount Cabinet S3D without PL 4X6X2,5
NSYS3D4625
Schneider Electric

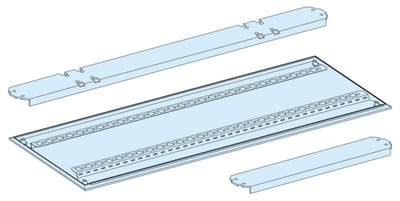

Extension Enclosure PrismaSeT G, IP55, 15 Modules, W 600 mm
LVS08314
Schneider Electric

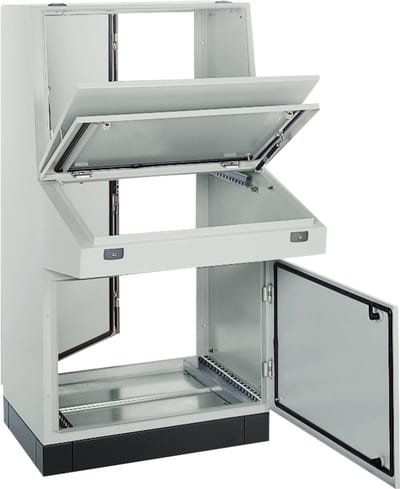

Schneider Electric PanelSeT SD Control desk with console - H1400XW1200XD1045 - IP55 NSYSDF1210
