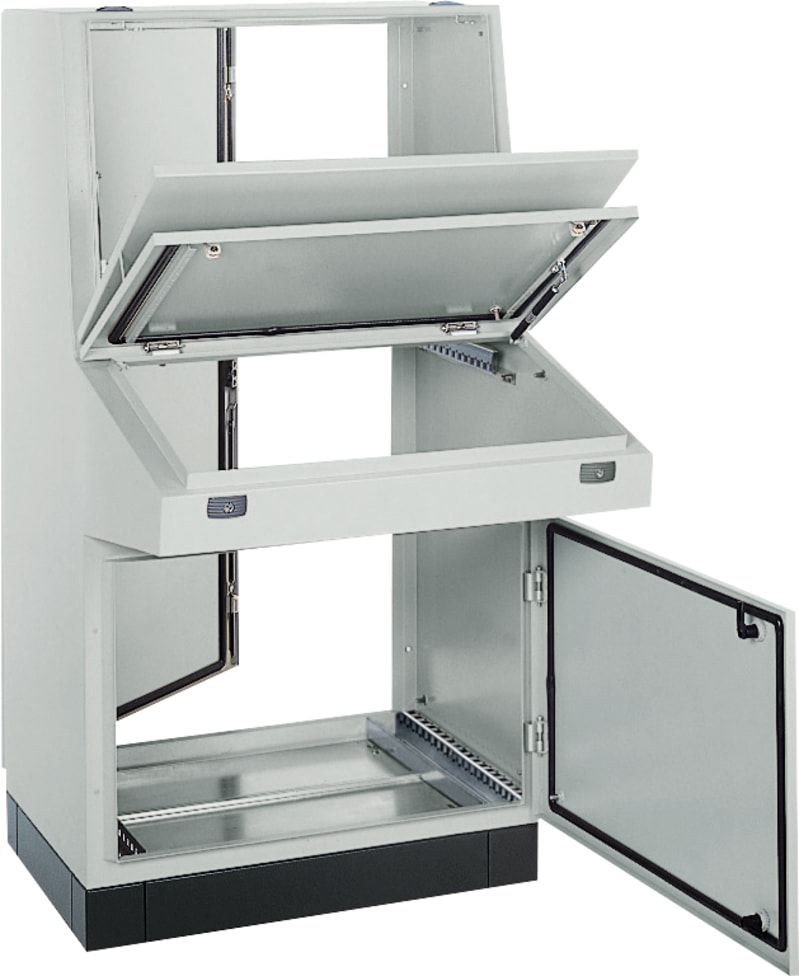

Schneider Electric PanelSeT SD Control desk with console - H1400XW1200XD1045 - IP55 NSYSDF1210
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDF1210 Control desk 1200X630.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDF1210
- EAN / GTIN
- 3606480162978
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SD
- Enclosure type
- Multi-purpose
- Category
- Control desk with console and desk
- Nominal height
- 1400 mm
- Nominal width
- 1200 mm
- Nominal depth
- 1045 mm
- Product installation
- Floor-standing
- Device composition
- 1 structure; 4 adjustment rail; 1 cable gland plate; 2 pneumatic stay: desk lid; 1 front console door; 1 desk lid; 2 mechanical stay: front console door; 6 lock: front door; 1 handle lock: rear door; 2 front door; 2 rear door
- Body type
- Single piece structure folded and welded
- Door type
- Plain
- Number of doors
- Front: 2 door(s); Rear: 2 door(s)
- Door opening side
- Reversible 120 ° front and rear doors; Folding 75 ° desk lid and console cover
- Lock type
- 2 points lock, 3 mm double-bar; Handle lock, 5 mm double bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- 1 entry plate
- Accessibility for operation
- Rear; Front
- Removable parts
- Desk lid by hinges; Cable gland plate by clipping screws; Front door by hinges; Front console door by hinges; Rear door by hinges
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- thickness
- 1.5 mm
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 168.910 cm
- Package 1 Width
- 124.460 cm
- Package 1 Length
- 120.140 cm
- Package 1 Weight
- 124.012 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 1400 mm
- Depth
- 1045 mm
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Component of the desk system
- Desk console
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480162978
- SAP 1000089760
- Code 8840487
Product Documentation
More from Schneider Electric
Schneider Electric

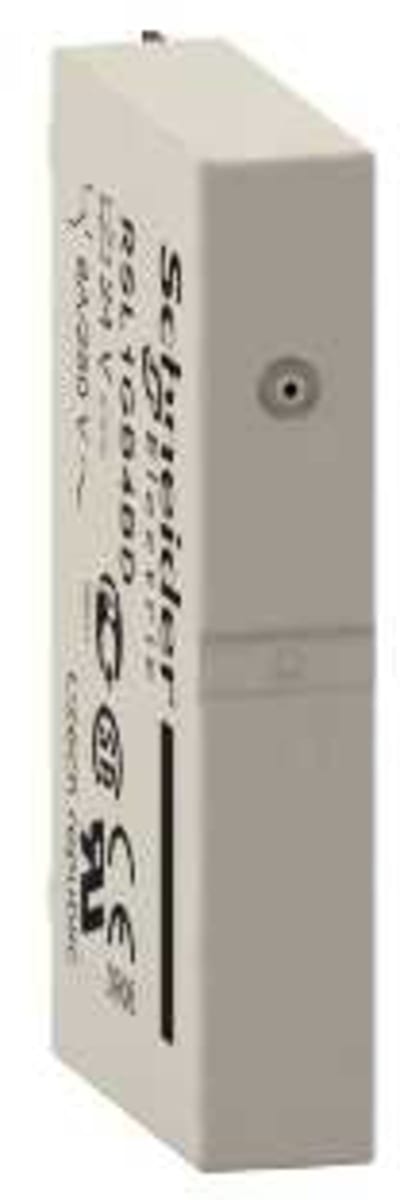

Schneider Electric Slim interface plug-in relay, 6 A, 1 CO, standard, 60 V DC RSL1AB4ND
Schneider Electric

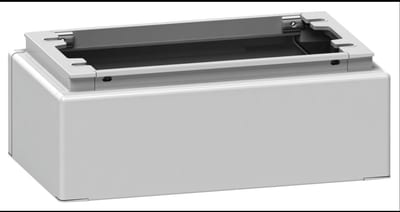

Plinth 7035 PLAZ 200X1035X410
NSYZZ2104G
Schneider Electric

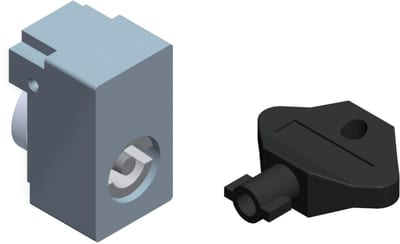

Schneider Electric Shape insert - lock 6.5 mm triangular insert NSYINT61
Schneider Electric

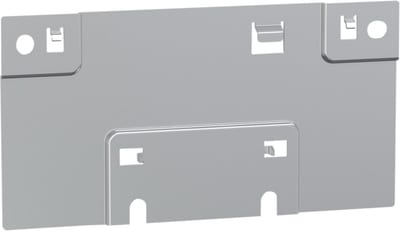

Mounting plate f/ LR9G630-800
LA9G3653
Schneider Electric

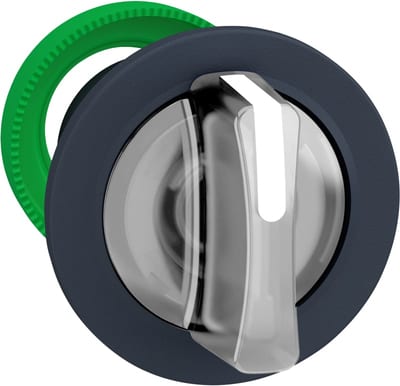

Selector switch flush for LED 3 pos white (ZB5FK1313)
Schneider Electric

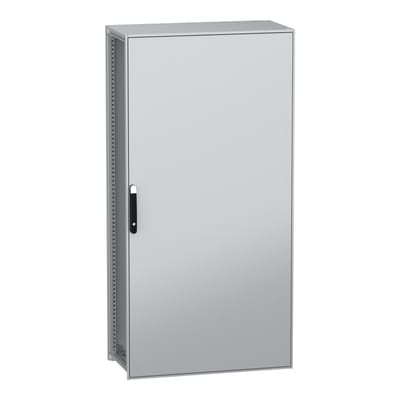

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1000X500MM, IP55 NSYSFN201050
Schneider Electric

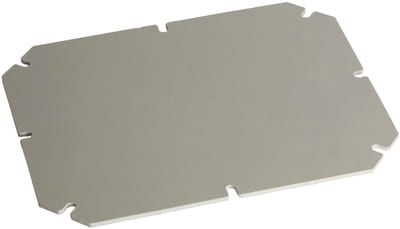

08004 MOUNTING PLATE 275X325 Metal
NSYAMPM3429TB
Schneider Electric

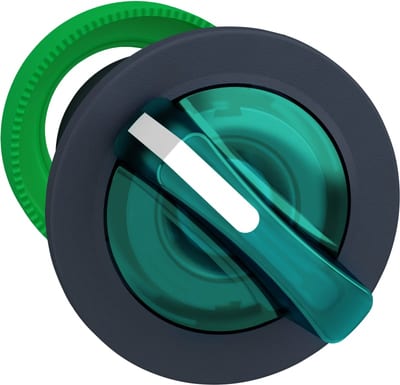

Selector switch flush for LED 2 pos green (ZB5FK1233)
