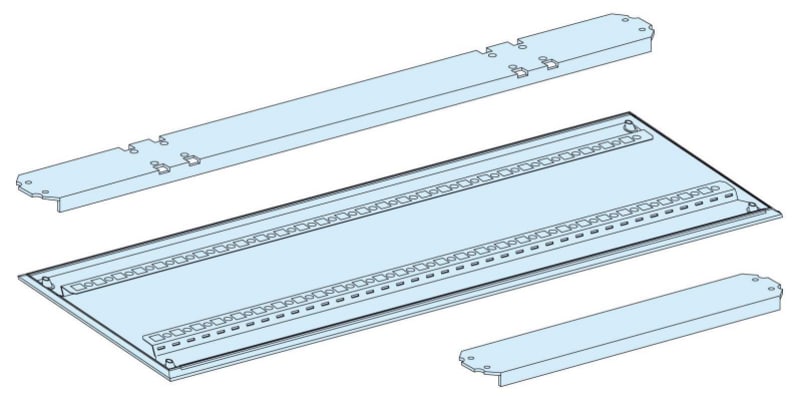

Extension Enclosure PrismaSeT G, IP55, 15 Modules, W 600 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08314 extension enclosure for PrismaSeT G, IP55, 15 modules high, width 600 mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08314
- EAN / GTIN
- 3606481884763
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 15 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Rear panel
- Device application
- Low voltage electrical distribution
- Enclosure type
- Functional enclosure delivered in kit form
- Additional information
- Can be combined side by side and one on top of another
- type of front plate
- Without
- Number of vertical modules [50 mm]
- 15
- Number of 18 mm modules per row
- 24
- [Ui] rated insulation voltage
- 1000 V on main rear busbars conforming to IEC 61439-2
- Network frequency
- 50/60 Hz
- [In] rated current
- 630 A at 40 °C conforming to IEC 61439-2
- [Icw] rated short-time withstand current
- 25 kA 1 s conforming to IEC 61439-2
- [Ipk] rated peak withstand current
- 53 kA conforming to IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Smooth; Matt
- Colour
- White (RAL 9001)
- Width
- 600 mm
- Height
- 850 mm
- Depth
- 260 mm
- Product weight
- 7.28 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 with door
- IK degree of protection
- IK10 with door conforming to EN/IEC 62262
- Mechanical robustness
- Seismic tests - 2.5G conforming to IEC 60068-2-57
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 850 mm
- Material
- Metal
- RAL-number
- 9003
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481884763
- SAP 1200547511
- Code 82879213
