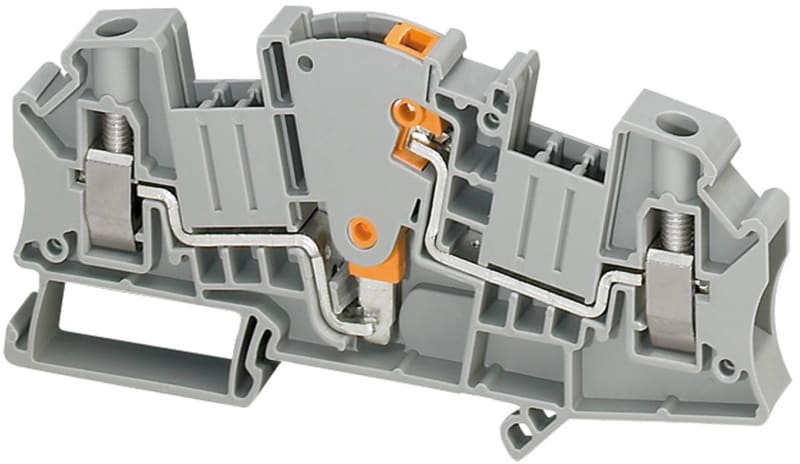

Schneider Electric NSYTRV62TTD Linergy TR Blade-Disconnect Terminal Block 6 mm² 2P

Schneider Electric NSYTRV62TTD is a Linergy TR blade-disconnect terminal block for 6 mm² conductors, offering two screw terminals per pole in a clip-on 35 mm DIN-rail body. Rated 30 A / 500 V (600 V UL/CSA) per EN/IEC 60947-7-1, with V0 flame retardance on 0.8 mm sections and a polyamide 6/6 insulating case. Accepts 0.2–10 mm² solid or flexible conductors; grey; supplied in packs of 50.

Manufacturer part number (MPN)

NSYTRV62TTD

EAN / GTIN

3606480532399

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

6 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRV

Accessory / separate part category

Connection accessory

Terminal block type

Blade disconnect

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

6 mm²

Length

100.8 mm

Colour

Grey

Quantity per set

Set of 50

Width

8.2 mm

Height

49.6 mm

Connections - terminals

1 x screw terminal: upstream; 1 x screw terminal: downstream

number of connections

2

Connection position

Inclined

Number of measurement input

6

Cable cross section

0.2…10 mm², solid; 0.2…10 mm², flexible without cable end; 0.2…6 mm², flexible with cable end

Tightening torque

1.5…1.8 N.m

Wire stripping length

10 mm

Tool type

Connection: screwdriver; Disconnection: screwdriver

[Ue] rated operational voltage

500 V conforming to EN/IEC 60947-7-1; 600 V UL; 600 V CSA

[In] rated current

30 A conforming to EN/IEC 60947-7-1; 30 A UL; 30 A CSA

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

28.2 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Product certifications

UL; CSA

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

400

Country of origin

PL

Warranty (in months)

18

Connectable conductor cross section solid-core

0.2–10 mm²

Connectable conductor cross section multi-wired

0.2–10 mm²

Rated current In

30 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

1

Internally connected stages

No

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

8.2 mm

Depth

100.8 mm

Closing plate required

Yes

Type of slitting

Swivelling

Type of cross disconnection

Swivelling

With integrated test socket

No

HS Code

8536.90
