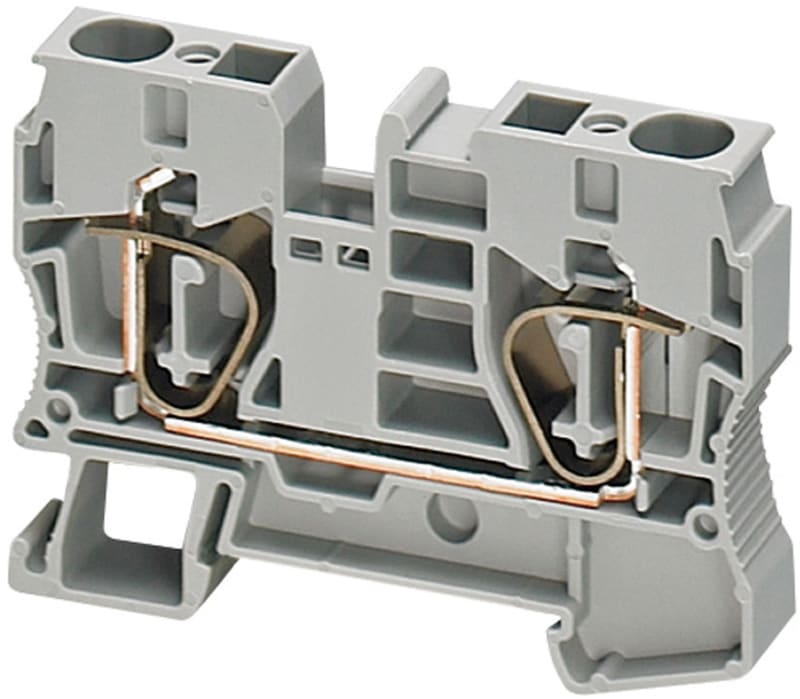

Terminal block, spring 10mm² grey 2P

Schneider Electric NSYTRR102 Terminal block spring 10mm² grey 2p.

Manufacturer part number (MPN)

NSYTRR102

EAN / GTIN

3606480532832

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

10 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRR

Accessory / separate part category

Connection accessory

Terminal block type

Passthrough

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

10 mm²

Length

71.5 mm

Colour

Grey

Quantity per set

Set of 50

Width

10.2 mm

Height

50.5 mm

Connections - terminals

1 x spring terminal: upstream; 1 x spring terminal: downstream

number of connections

2

Connection position

Top

Number of measurement input

2

Cable cross section

0.2…10 mm², flexible without cable end; 0.2…16 mm², solid with cable end; 0.5…10 mm², flexible with cable end; 0.2…16 mm², solid without cable end

Wire stripping length

18 mm

Tool type

Connection: flat screwdriver; Disconnection: flat screwdriver

[Ue] rated operational voltage

600 V CSA; 800 V conforming to EN/IEC 60947-7-1; 600 V UL

[In] rated current

57 A conforming to EN/IEC 60947-7-1; 65 A CSA; 65 A UL

Material

Polyamide 6/6: insulating case; Copper alloy: connector and screw; Copper alloy: commoning link; Chromium-nickel steel: spring

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

25.3 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

VDE; CSA; GL; DNV; UL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

400

Country of origin

PL

Warranty (in months)

18

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.2–16 mm²

Connectable conductor cross section multi-wired

0.2–10 mm²

Rated current In

57 A

Rated voltage

800 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

10.2 mm

Depth

71.5 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Internally connected stages

No

HS Code

8536.90

• EAN 3606480532832
• SAP 1000402139
• Code 81113290
