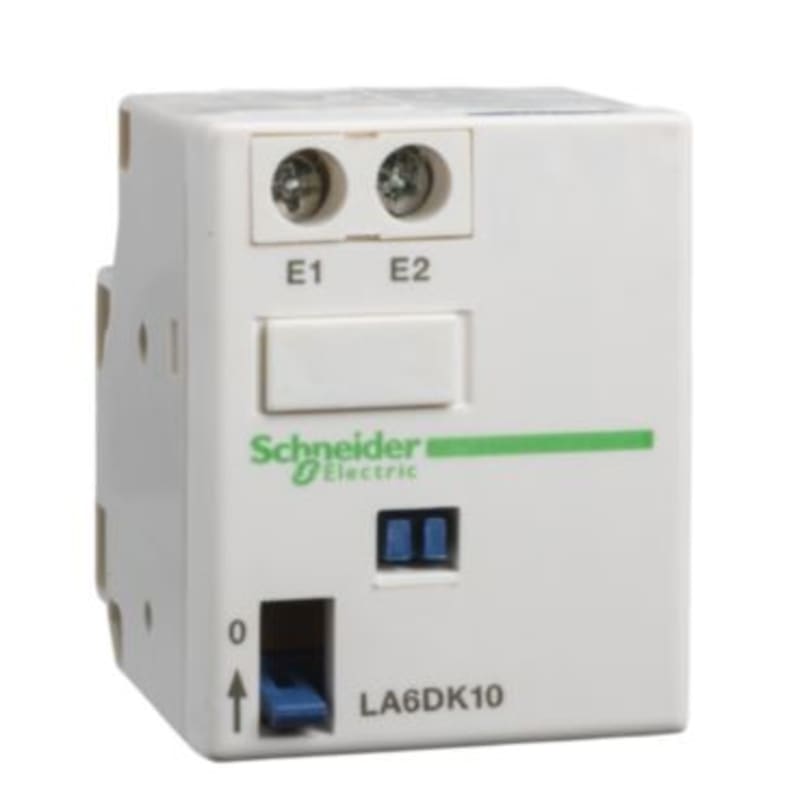

Interlock Block 24VAC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LAD6K10B Sperreblokk 24VAC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- LAD6K10B
- EAN / GTIN
- 3389110842364
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Voltage
- 24 V AC
- Range
- TeSys
- Product or component type
- Mechanical latch block
- Product compatibility
- LC1D09...D38 AC/DC; LC1DT20...DT40 AC/DC; LC1D40A...D80A 3 phases AC/DC; LC1DT60A 3 phases + neutral AC/DC; LC1DT80A 3 phases + neutral AC/DC
- [Uc] control circuit voltage
- 24 V DC; 24 V AC 50/60 Hz
- Mounting location
- Front side
- Tripping control
- Manual; Electrical
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
- Power required in VA
- 25 for AC circuit
- Power required in W
- 30 W for DC circuit
- Mechanical durability
- 500000 cycles
- Maximum operating rate
- 1200 cyc/h
- On-load factor
- 10 %
- Product weight
- 0.07 kg
- Product certifications
- UL; CSA
- IP degree of protection
- IP2X conforming to VDE 0106
- Protective treatment
- TH conforming to IEC 60068
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 32
- Country of origin
- FR
- Warranty (in months)
- 18
- Type of accessory/spare part
- Mechanical locking
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110842364
- SAP 1000259831
- Code 8173195
