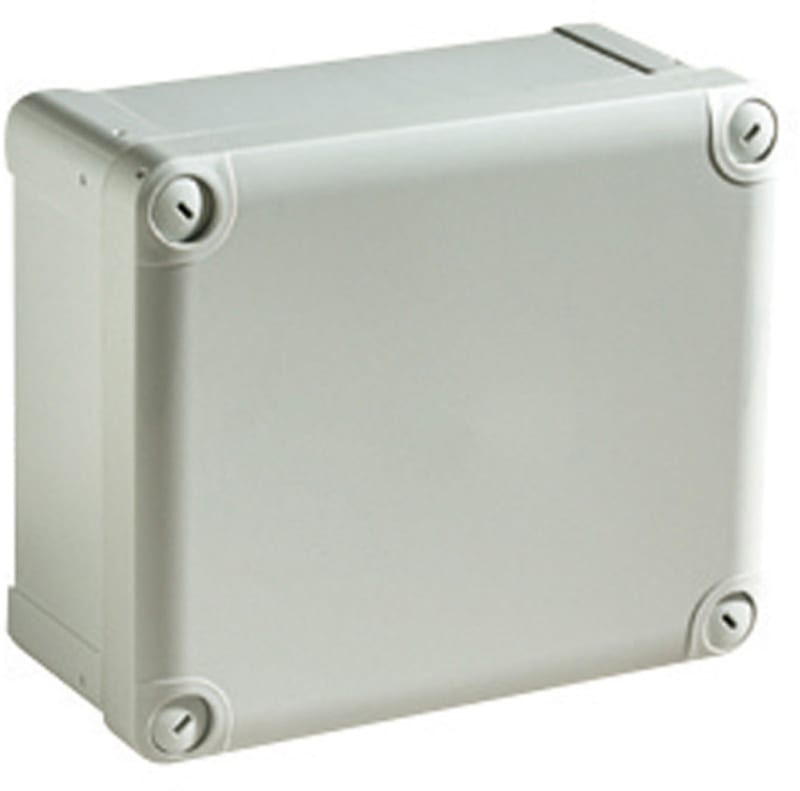

Schneider Electric ABS industrial box, PanelSeT TBS, 89X54X89MM, int. 80X47X80MM, low plain cover, IP66, IK07, RAL 7035 NSYTBS885
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS885 85004 Abs Box 89X89X51 T.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS885
- EAN / GTIN
- 3606480165214
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Dimensions
- 89×89×51
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 89 mm
- Width
- 89 mm
- Depth
- 54 mm
- Internal height
- 80 mm
- Internal width
- 80 mm
- Internal depth
- 47 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Quantity per set
- Set of 5
- Body type
- One piece moulded
- Type of front cover
- Low plain cover
- Cover fixing
- Metal screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 0.096 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 160
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Material quality
- Acrylonitrile butadiene styrene (ABS)
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480165214
- SAP 1000090269
- Code 8893677
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LV432559 — Escutcheon for toggle with trip-unit access, fixed NSX400/630, IP30
Schneider Electric
Schneider Electric Hexagonal spacers, PrismaSeT G and P, M5, H23 mm, Set of 4 LVS03186
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250B, 25KA/415VAC, 4 poles, MicroLogic 2.2 trip unit 100A C25B42D100
Schneider Electric
Schneider Electric LXM52 single drive 10A/30A LXM52DD30C41000
Schneider Electric
Lock sportype (6)for PLS
NSYTCD276
Schneider Electric
Lock sportype (8)for PLS
NSYTCD278
Schneider Electric

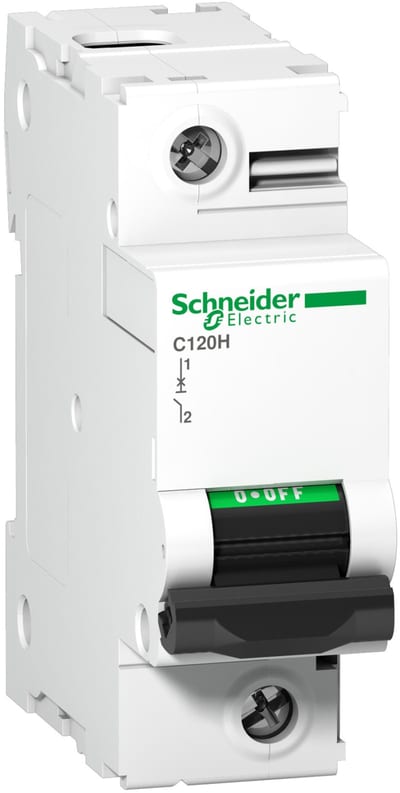

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 1P, 80A, C curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18446
Schneider Electric

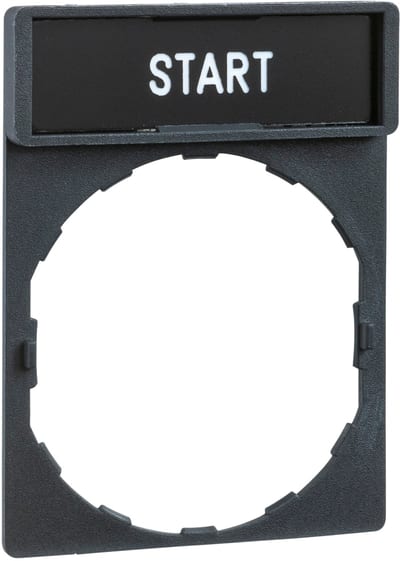

Sign Holder with Sign 30X40 ENG.
