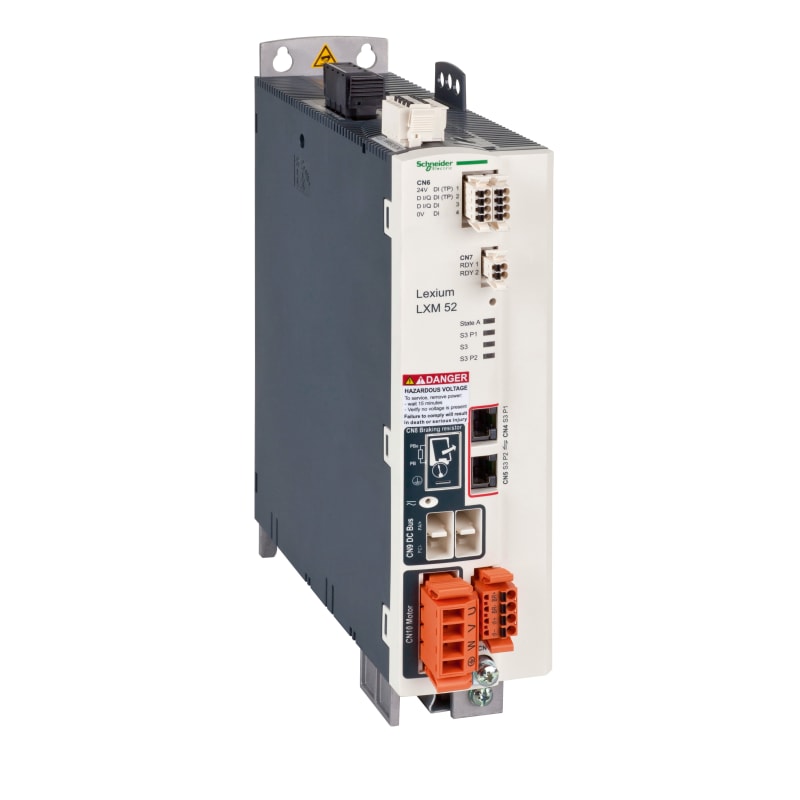

Schneider Electric LXM52 single drive 10A/30A LXM52DD30C41000

Schneider Electric LXM52DD30C41000 Pack drive 3 Motion driver 10/30A continuous/topplast 208-480V.

Manufacturer part number (MPN)

LXM52DD30C41000

EAN / GTIN

3606480517327

HS code

8504.40

Sales unit

pcs

Package quantity

2 pcs

Rated current

30 A

Range of product

PacDrive 3

Device short name

LXM 52

Product or component type

Single drive

Product compatibility

Servo motor SH3 (100 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (100 mm, 4 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (140 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (100 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (140 mm, 1 motor stacks)optimized in terms of torque and speed

Component name

LXM52

Network number of phases

Three phase

[Us] rated supply voltage

208...480 V - 15...10 %

Supply frequency

50...60 Hz - 5...5 %

Continuous output current

10 A at 8 kHz

Output current 3s peak

30 A

Continuous power

5.6 kW

Nominal power

3 kW

Switching frequency

8 kHz

Overvoltage category

III

Electrical connection

Terminal, clamping capacity: 0.75...5.3 mm², 18 AWG...10 AWG (CN1); Terminal, clamping capacity: 0.75...5.3 mm², 18 AWG...10 AWG (CN10)

Tightening torque

CN1: 0.68 N.m; CN10: 0.68 N.m

Number of inputs

4 digital; 4 touch probe

Discrete input voltage

24 V DC

Number of outputs

2 digital

Discrete output voltage

24 V DC

Contact bounce time

> 1 ms for compliment of STO_A, compliment of STO_B

Communication interface

SERCOS III, integrated

Width

68 mm

Height

270 mm

Depth

217 mm

Product weight

2.7 kg

Standards

IEC 61800-3; IEC 61800-5-1

Product certifications

CE; UL

IP degree of protection

IP20 conforming to IEC 60721-3-3

Vibration resistance

10 m/s² conforming to IEC 60721-3-3

Shock resistance

100 m/s² conforming to IEC 60721-3-3

Pollution degree

2

Environmental characteristic

3K3 conforming to IEC 60721-3-3

Relative humidity

5…95 %

Ambient air temperature for operation

0…50 °C

Country of origin

ID

Warranty (in months)

18

HS Code

8504.40
