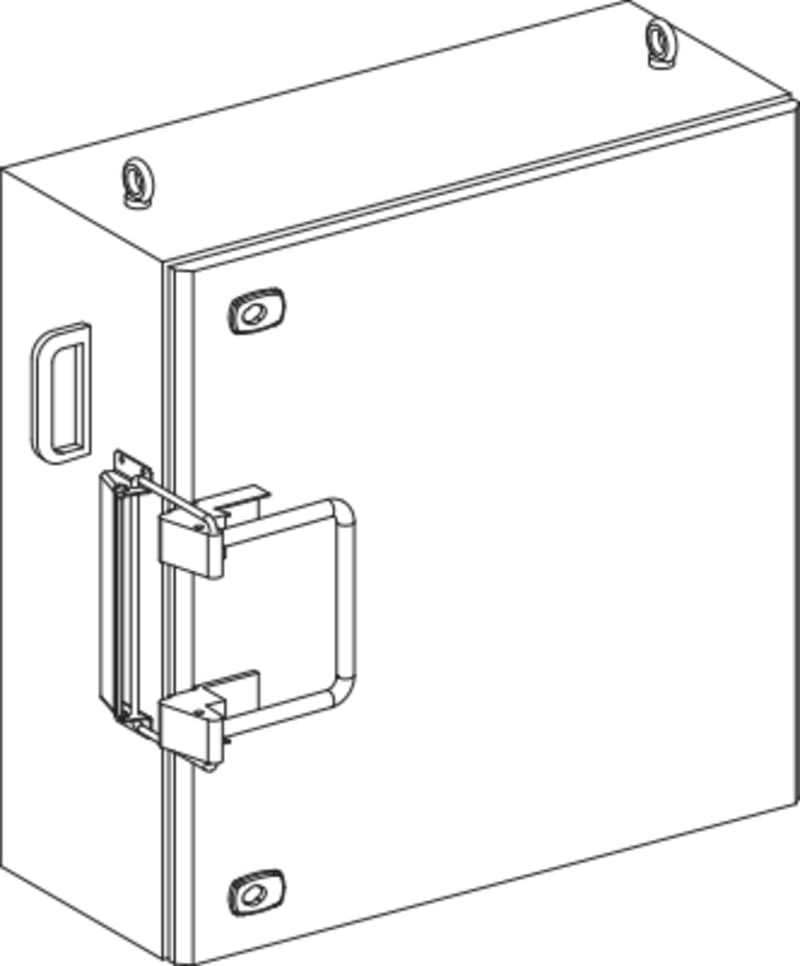

BOX 400A 3L+N NH2 (KSB400SE4)

Schneider Electric KSB400SE4 Box 400A 3L+N Nh2.

Manufacturer part number (MPN)

KSB400SE4

EAN / GTIN

3606480005817

Sales unit

pcs

Package quantity

3 pcs

Rated current

400 A

Range of product

Canalis

Range compatibility

Canalis KT busbar trunking; Canalis KS busbar trunking

Product or component type

Tap-off unit

busbar trunking compatibility

Canalis KS busbar trunkingplug-in; Canalis KT busbar trunking with KS type plug-in

[Ie] rated operational current

400 A at 35 °C

protection type

fuse insulator: for aM blade type fuse, size 2 - 400 A conforming to NF; fuse insulator: for gG blade type fuse, size 2 - 400 A conforming to NF

Provided equipment

fuse to be ordered separately

Mounting mode

Plug-in with fixed polarity

Tap-off unit polarity

3L+N+PE

Colour

White (RAL 9001)

Device application

Medium power distribution

[Ue] rated operational voltage

230...690 V depending on protective device

[Uimp] rated impulse withstand voltage

6.8 kV

[Ui] rated insulation voltage

500 V depending on protective device

Network frequency

50/60 Hz

Electrical connection

Copper cable lug - ISO50 240 mm² flexible; Copper cable lug - ISO50 240 mm² rigid

door/cover opening side

Right

Tap-off unit disconnection mode

By opening the door

Standards

IEC 61439-1; IEC 61439-6

Body material

Metal

Width

600 mm

Depth

316 mm

depth (door open)

855 mm

Height

600 mm

Product weight

29.2 kg

Earthing system

TT; TN-S; IT

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

3

Country of origin

FR

Warranty (in months)

18

RAL-number

9001

With locking

No

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Number of poles

5

Length

600 mm

Degree of protection (IP)

IP55

Branch off type

Pipe in-lead

Rated voltage AC 50 Hz

230–690 V

Rated current AC 50 Hz

400 A

HS Code

8536.90

• EAN 3606480005817
• SAP 1000470846
• Code 8932418
