Schneider Electric A9E18036 Acti9 iPB Push-Button 1NO with Green LED, 110-230 V AC

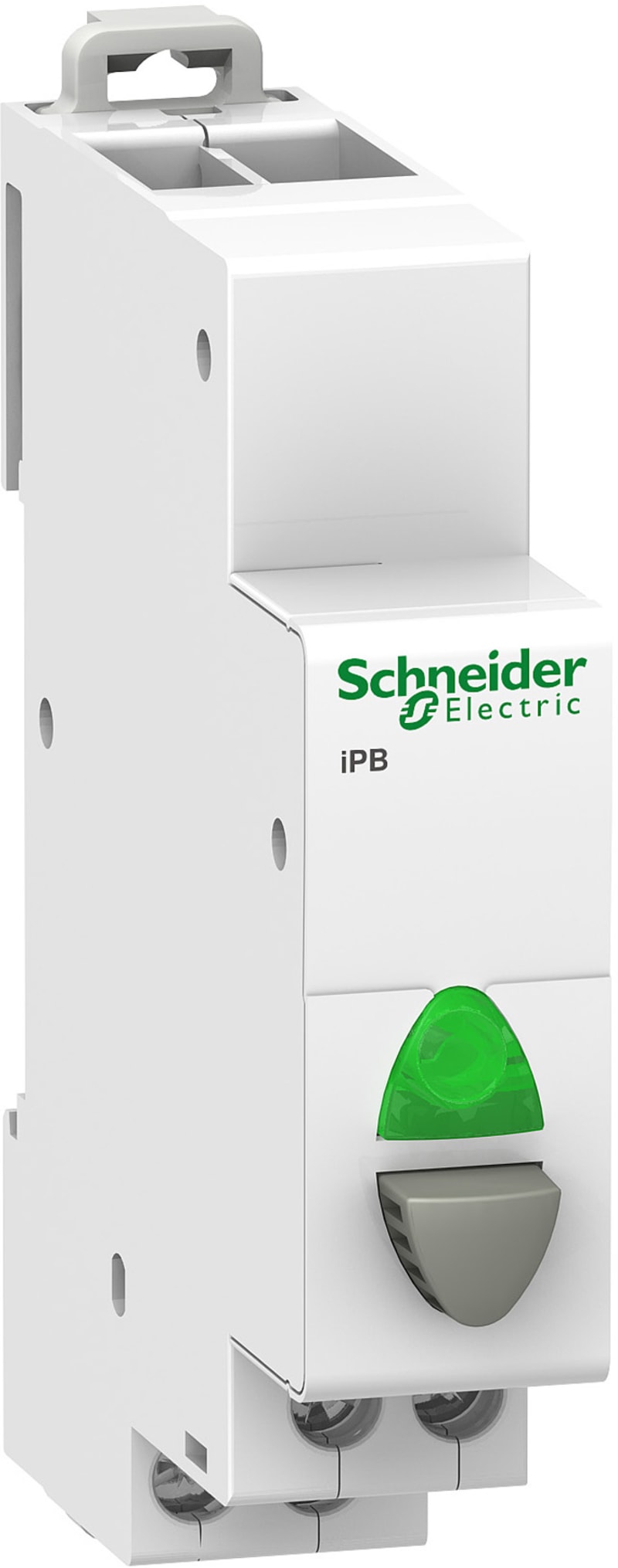

Schneider Electric A9E18036 is an Acti9 iPB modular push-button, single 1NO contact in grey with a green LED indicator light for 110-230 V AC control circuits. DIN-rail mounted, 2 x 9 mm modular pitches, rated 20 A at 250 V AC.

Manufacturer part number (MPN)

A9E18036

EAN / GTIN

3606480088285

Sales unit

pcs

Package quantity

12 pcs

Contact configuration

1 NO

range of product

Acti9

Product name

Acti9 iPB

Product or component type

Push-button

Device short name

iPB

Standards

IEC 60669-1; IEC 60947-5-1

Contacts type and composition

1 NO

[Ie] rated operational current

20 A

[Ue] rated operational voltage

250 V AC

Control type

1 push-button grey

Local signalling

LED indicator green, service life 100000 h of constant lighting efficiency (consumption 0.3 W)

Signalling circuit voltage

AC: 110...230 V 50/60 Hz

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

Comb busbar and distribution block compatibility

Upside: Clario; Upside: Librio; Upside: ProDis

9 mm pitches

2

Height

82 mm

Width

18 mm

Depth

71.5 mm

Colour

White

Electrical durability

AC-22: 30000 cycles AC 50/60 Hz

Connections - terminals

Staggered tunnel terminal1 cable(s) 0.5 mm² rigid; Staggered tunnel terminal1 cable(s) 0.5 mm² flexible; Staggered tunnel terminal1 cable(s) 0.5 mm² flexible with ferrule; Staggered tunnel terminal2 cable(s) 2.5 mm² rigid; Staggered tunnel terminal2 cable(s) 2.5 mm² flexible; Staggered tunnel terminal2 cable(s) 2.5 mm² flexible with ferrule

Wire stripping length

9 mm

Tightening torque

1 N.m

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

108

Warranty (in months)

18

Number of contacts as normally open contact

1

Switching current

20 A

Switching voltage

250 V

Voltage type

AC

With signal lamp

Yes

Colour calotte

Green

Lamp type

LED

Max. lamp power

0.3 W

Lamp voltage

110–230 V

Colour button

Grey

Width in number of modular spacings

1

Built-in depth

50 mm

Degree of protection (IP)

IP20

Country of origin

Belgium

HS Code

8531.80
