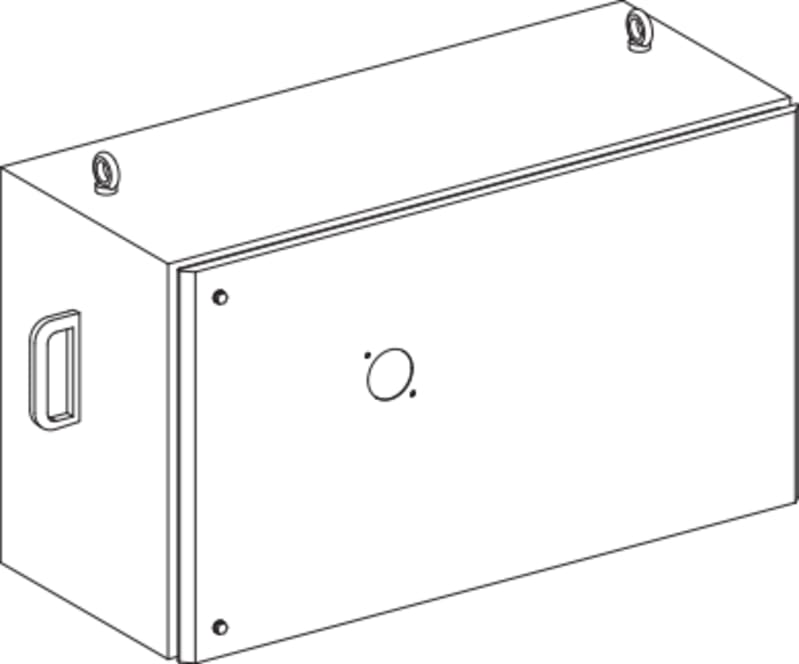

BOX 400A 3L+N NS400 (KSB400DC4)

Schneider Electric KSB400DC4 Box 400A 3L+N Ns400.

Manufacturer part number (MPN)

KSB400DC4

EAN / GTIN

3606480005794

Sales unit

pcs

Package quantity

4 pcs

Rated current

400 A

Range of product

Canalis

Range compatibility

Canalis KS busbar trunking; Canalis KT busbar trunking

Offer type

Classic

Product or component type

Tap-off unit

[Ie] rated operational current

400 A at 35 °C

Protection type

Circuit breaker: Compact NSX400

Provided equipment

circuit-breaker to be ordered separately

Mounting mode

Plate with fixed polarity

Tap-off unit polarity

3L+N+PE

Colour

White (RAL 9001)

Device application

Medium power distribution

[Ue] rated operational voltage

400 V depending on protective device; 500 V depending on protective device

[Uimp] rated impulse withstand voltage

6.8 kV

[Ui] rated insulation voltage

400 V depending on protective device; 500 V depending on protective device

Network frequency

50/60 Hz

Control type

Extended rotary handle

Electrical connection

Crimp lug - ISO50 240 mm² flexible; Crimp lug - ISO50 240 mm² rigid

door/cover opening side

Right

Tap-off unit disconnection mode

By rotary operating handle

Number of openings

2 openings for FL21 gland plate

Standards

IEC 61439-6; IEC 61439-1

Body material

Metal

Width

700 mm

Depth

350 mm

depth (door open)

976.5 mm

Height

400 mm

Product weight

19 kg

Earthing system

TT; TN-S; IT

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

4

Country of origin

FR

Warranty (in months)

18

RAL-number

9001

With locking

No

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Number of poles

3

Length

732 mm

Degree of protection (IP)

IP55

Branch off type

Pipe in-lead

Rated voltage AC 50 Hz

230–690 V

Rated current AC 50 Hz

400 A

HS Code

8536.90

• EAN 3606480005794
• SAP 1200721831
• Code 83845669
