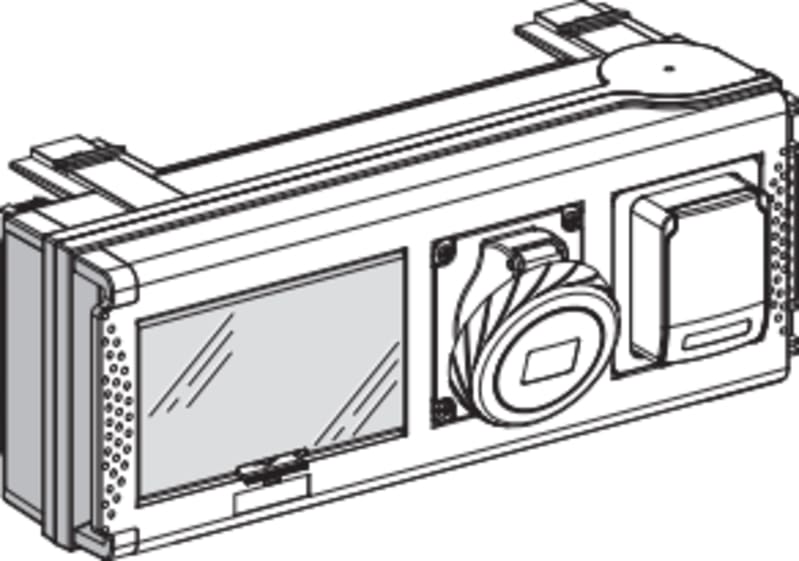

Schneider Electric Tap off unit, Canalis KS 100A to 1000A, 8 modules of 18mm, 32A, DIN rail, 3L+N+PE, 2 Schuko power sockets, IP55, RAL9001 KSB32CP11D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSB32CP11D Box with 2Xute 2X16+Pe.
Technical Specifications
- Manufacturer part number (MPN)
- KSB32CP11D
- EAN / GTIN
- 3606480005992
- Sales unit
- pcs
- Package quantity
- 29 pcs
- Range of product
- Canalis
- Product name
- KS
- Product or component type
- Tap-off unit
- Product compatibility
- Modular device
- [Ie] rated operational current
- 32 A at 35 °C
- Tap-off unit socket description
- Domestic Schuko10/16A 2P+T230V
- Tap-off unit 2nd socket description
- Domestic Schuko10/16A 2P+T230V
- Tap-off unit polarity
- 3L+N+PE
- Provided equipment
- Blanking plate
- Colour
- White (RAL 9001)
- Device application
- Power socket distribution; Low power distribution
- [Ue] rated operational voltage
- 230...690 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 6.8 kV
- [Ui] rated insulation voltage
- 400 V depending on protective device; 500 V depending on protective device; 690 V depending on protective device
- Network frequency
- 50/60 Hz
- Protection type
- Without protection
- Tap-off unit disconnection mode
- By drawing out
- Tap-off unit connector type
- With phase selection
- Standards
- IEC 60439-2; IEC 61439-6
- Body material
- Plastic
- number of 18mm modules
- 8
- Width
- 437.5 mm
- Depth
- 108 mm
- Height
- 165 mm
- Product weight
- 2.9 kg
- Earthing system
- TT - busbar trunking; TN-S - busbar trunking; TN-C - busbar trunking; TT - tap-off unit; TN-S - tap-off unit
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 29
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- No
- Number of poles
- 5
- Length
- 437.5 mm
- Degree of protection (IP)
- IP55
- Number of other socket outlets
- 2
- Branch off type
- Socket outlet
- Rated voltage AC 50 Hz
- 230–690 V
- Type of socket outlets
- Socket outlet with protective contact CEE 7/3 (type F) 16 A
- Rated current AC 50 Hz
- 32 A
- Country of origin
- Italy
