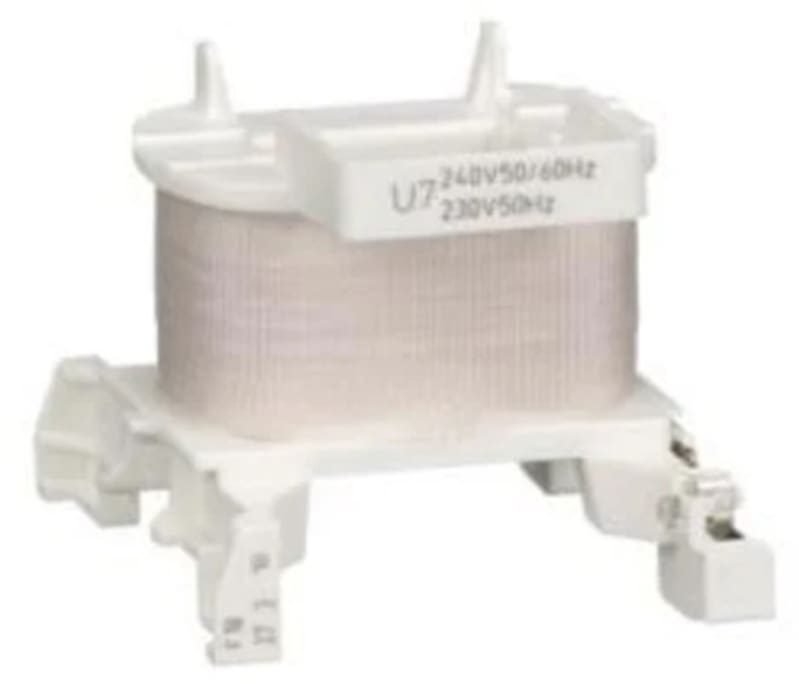

Schneider Electric Replacement contactor coil, TeSys D, 240 V AC 50/60 Hz, for LC1D09...D38 and LC1DT20...DT40 contactors and CAD relays LXD1U7

Replacement control coil for TeSys D contactors and CAD control relays. Rated control circuit voltage [Uc] 240 V AC at 50/60 Hz, average coil resistance 562.3 Ohm at 20 °C, closed-circuit inductance 22 H. Inrush 70 VA at cos phi 0.75, hold-in 7...7.5 VA at cos phi 0.3, heat dissipation 2...3 W. Fits LC1D09 to LC1D38 and LC1DT20 to LC1DT40 contactors and CAD relays. Supplied without a built-in suppressor module, so a separate surge suppressor is required where the control circuit calls for one. Operating limits 0.8...1.1 Uc at 50 Hz and 0.85...1.1 Uc at 60 Hz, drop-out 0.3...0.6 Uc, ambient air temperature -5...60 °C, mechanical durability 15 million cycles at up to 3600 operating cycles/h. Weight 0.07 kg. Country of origin FR. HS code 8536.90. Schneider reference: SAP 1000005946, code 834803.

Manufacturer part number (MPN)

LXD1U7

EAN / GTIN

3389110467949

HS code

8536.90

Sales unit

pcs

Package quantity

100 pcs

Voltage

240

Range

TeSys

Product or component type

Contactor coil

Device short name

LXD1

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

240 V AC 50/60 Hz

Average resistance

562.3 Ohm at 20 °C

Inductance of closed circuit

22 H

Product compatibility

CAD; LC1DT20...DT40; LC1D09...D38

Mechanical durability

15 Mcycles

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in VA

70 VA 60 Hz cos phi 0.75 (at 20 °C); 70 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

7.5 VA 60 Hz cos phi 0.3 (at 20 °C); 7 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

2…3 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Product weight

0.07 kg

Number of Units in Package 1

1

Number of Units in Package 2

100

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110467949
• SAP 1000005946
• Code 834803
