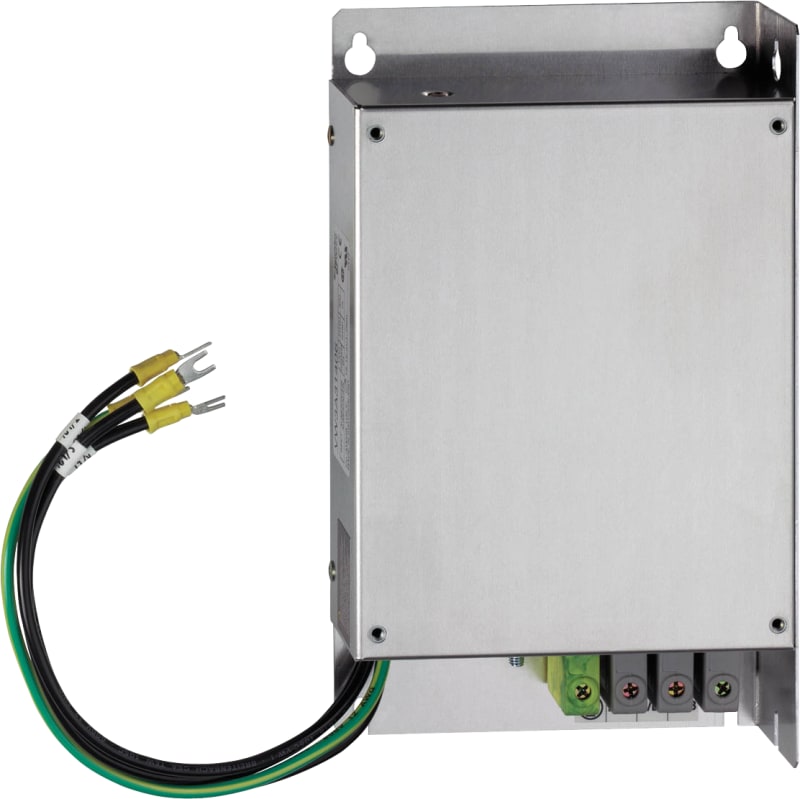

Schneider Electric additionnal EMC input filter - 3-Phase supply - 25 A VW3A31406

Schneider Electric VW3A31406 EMC FILTER S7 M3-S7 N4.

Manufacturer part number (MPN)

VW3A31406

EAN / GTIN

3389110689488

Sales unit

pcs

Package quantity

11 pcs

Range of product

Altivar

Product or component type

EMC input filter

Range compatibility

Altivar Machine ATV320; Lexium 23 Plus; Altivar 212; Altivar 31C; Lexium 05; Altivar 312; Altivar 312 Solar

Product compatibility

Servo drive LXM23 motor: 4.5 kW; Servo drive LXM23 motor: 5.5 kW; ATV212HU30M3X; ATV212HU30N4; ATV212HU40M3X; ATV212HU40N4; ATV212HU55N4; ATV31CU22N4; ATV31CU30N4; ATV31CU40N4; LXM05AD22N4; LXM05AD34N4; LXM05AD42M3X; LXM05BD22N4; LXM05BD34N4; LXM05BD42M3X; LXM05CD22N4; LXM05CD34N4; ATV312HU22N4; ATV312HU30N4; ATV312HU40N4; ATV312HU30M3; ATV312HU40M3; Variable speed drive ATV320...C motor: 2.2 kW, 380...500 V three phase; Variable speed drive ATV320...C motor: 3 kW, 380...500 V three phase; Variable speed drive ATV320...C motor: 4 kW, 380...500 V three phase; Variable speed drive ATV320...C motor: 3 kW, 200...240 V three phase; Variable speed drive ATV320...C motor: 4 kW, 200...240 V three phase; Variable speed drive ATV320...W/ATV320...WS motor: 2.2 kW, 380...500 V three phase; Variable speed drive ATV320...W/ATV320...WS motor: 3 kW, 380...500 V three phase; Variable speed drive ATV320...W/ATV320...WS motor: 4 kW, 380...500 V three phase

Product specific application

Radio interference input filter

[In] rated current

25 A

Thermal losses

1 W for ATV21HU30N4; 3 W for ATV21HU55N4; 1.6 W for ATV21HU40N4; 15.8 W for ATV31CU22N4; 3.6 W for ATV21HU30M3X; 6.2 W for ATV21HU40M3X

Network number of phases

Three phase

Electrical connection

Terminal 10 mm² 6 AWG

Tightening torque

1.8 N.m

maximum earth leakage current

35 mA 50 Hz; 37 mA at 480 V 60 Hz; 17.8 mA at 480 V 60 Hz

power supply voltage

380…500 V; 200…240 V

Tolerance

10 %

Product weight

1.65 kg; 1.35 kg

IP degree of protection

IP20; IP41 (upper part)

Relative humidity

0…93 % conforming to IEC 68-2-3

Ambient air temperature for operation

-10…50 °C

Ambient air temperature for storage

-25…70 °C

Operating altitude

<= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m

Vibration resistance

1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Standards

IEC 61800-3

Number of Units in Package 1

1

Number of Units in Package 2

11

Number of Units in Package 3

44

Country of origin

TH

Warranty (in months)

18

Type of accessory/spare part

Filter

Accessory

Yes

Spare part

No

HS Code

8548.90
