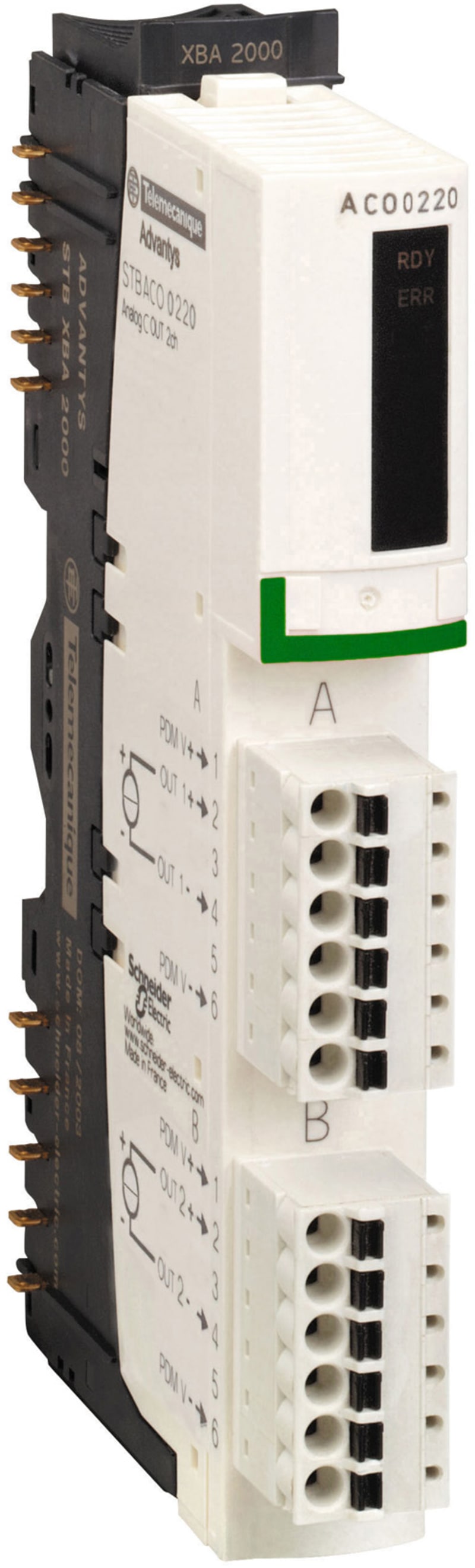

Schneider Electric standard analog output kit STB - 4..20 mA - 2 O - 15 bits + sign STBACO0220K
Part numberSTBACO0220KEAN / GTIN3595863948769HS code8536.90
Tools
Hand Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric STBACO0220K STB kit 2 out analog, 4-20mA, 16bit.
Technical Specifications
- Manufacturer part number (MPN)
- STBACO0220K
- EAN / GTIN
- 3595863948769
- Sales unit
- pcs
- Package quantity
- 17 pcs
- Output signal
- 4–20 mA
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Standard analog output kit
- Kit composition
- STBXTS2100, 6-terminal spring clamp connector; STBXTS1100, 6-terminal screw type connector; STBXBA2000 base; STBACO0220 module
- Product compatibility
- Power distribution module STBPDT3100/3105; Mounting base STBXBA1000
- Analogue input number
- 0
- Analogue output number
- 2
- Analogue output current
- 0.02 A
- Update time
- 8 ms
- Conversion time
- 4 ms
- Analogue output type
- Current: 4...20 mA
- Height
- 18.4 mm
- Width
- 128.3 mm
- Depth
- 70 mm
- Marking
- CE
- Relative humidity
- 95 % at 60 °C without condensation
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Number of Units in Package 3
- 448
- Country of origin
- ID
- Warranty (in months)
- 18
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Input, current
- No
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- No
- Resolution of the analogue inputs
- 15 Bit
- Output, current
- Yes
- Output, voltage
- No
- Output signal configurable
- No
- Resolution of the analogue outputs
- 15 Bit
- Number of analogue outputs
- 2
- Analogue inputs configurable
- No
- Analogue outputs configurable
- Yes
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3595863948769
- SAP 1000039987
- Code 8758506
Product Documentation
Document preview: Schneider Electric STBACO0220K — OEM Product Page
More from Schneider Electric
Schneider Electric

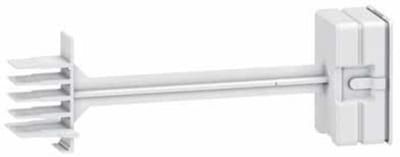

End termination (KBA40AF)
Schneider Electric

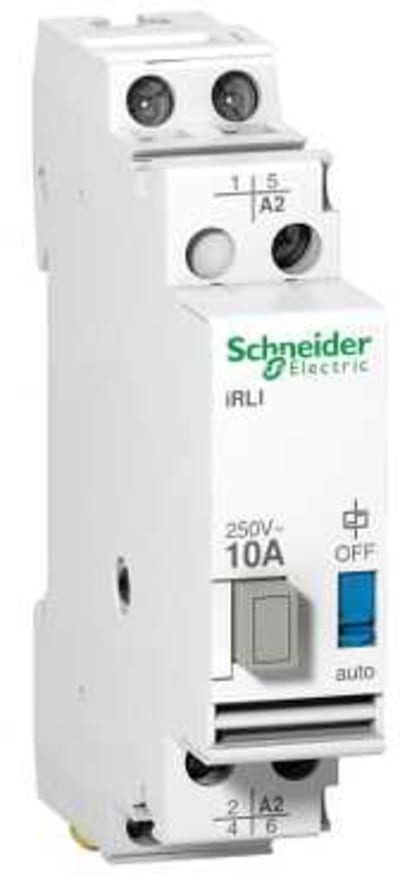

Schneider Electric Changeover relay iRLI 10A 2P Uc 24VAC Ue 250VAC A9E15537
Schneider Electric

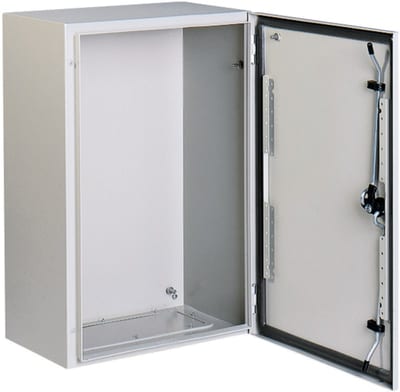

Schneider Electric PanelSet S3D ATEX. H300XW300XD200 .IP66 IK10 RAL7035. NSYS3DEX3320
Schneider Electric

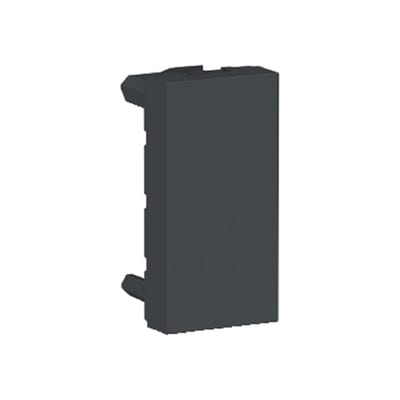

OL45 Blanking Cover 1 Module Anthracite
NU986554
Schneider Electric

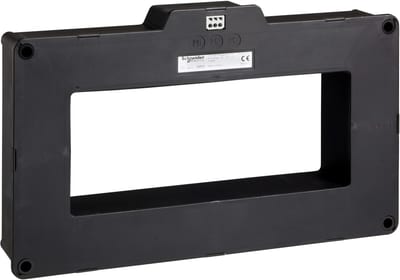

Toroid FOR JORF.VARSL. 470 X 1
33574
Schneider Electric

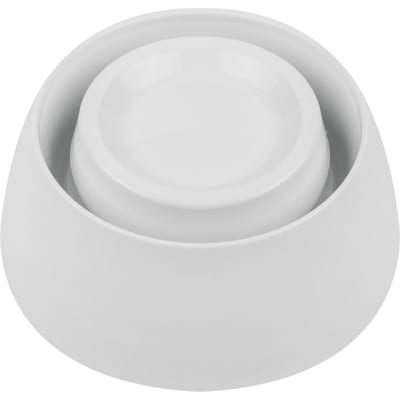

Esmi Impresia White Wall Mounted Sounder
FFS06741014
Schneider Electric

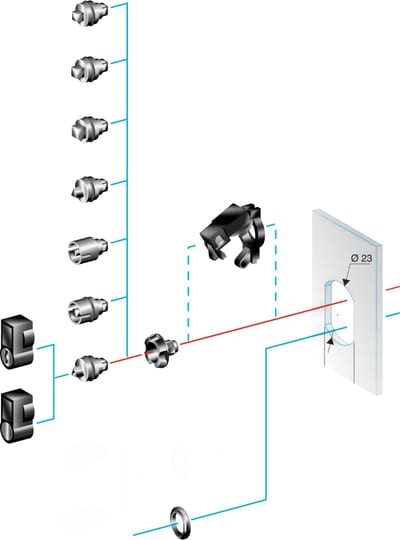

Lock insert 6.5mm (NSYTT6CRN)
Schneider Electric

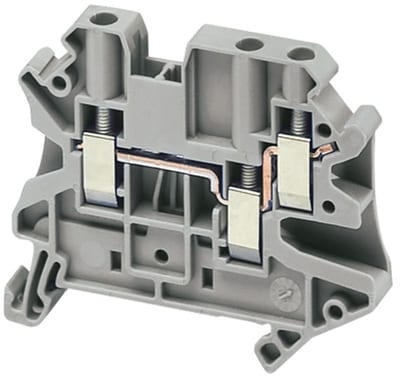

DIN-rail terminal 4mm² grey 3P
