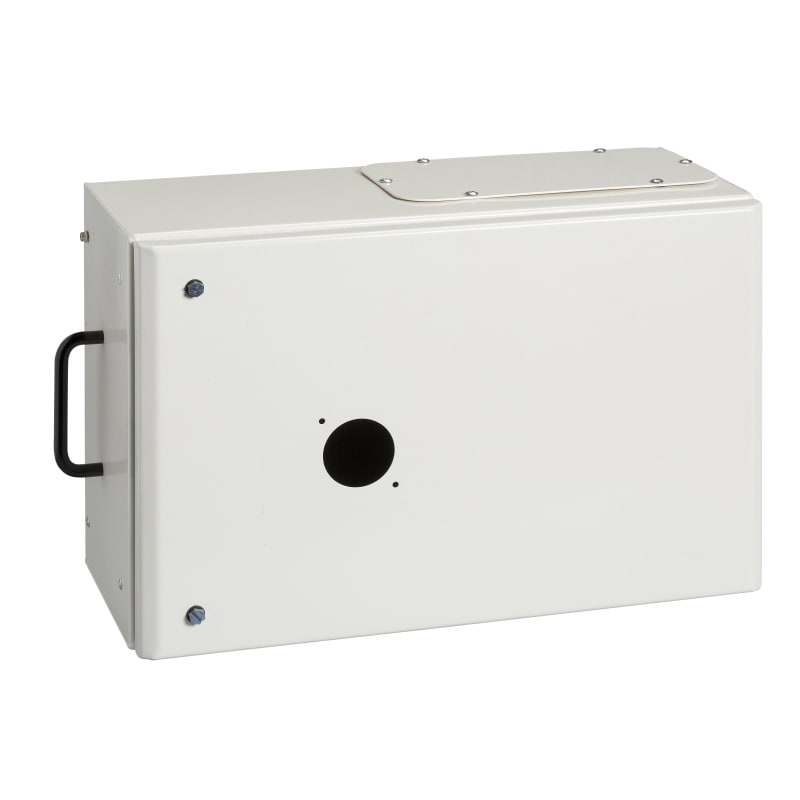

Schneider Electric KSB160DC4 TAP OFF UNIT 160A COMPACT NS

Schneider Electric KSB160DC4 TAP OFF UNIT 160A COMPACT NS is listed under Electrical Components / Moulded Case Circuit Breakers. Sales unit: pcs; Rated current: 160 A; Range of product: Canalis; Offer type: Classic; Product or component type: Tap-off unit; [Ie] rated operational current: 160 A at 35 °C.

Manufacturer part number (MPN)

KSB160DC4

EAN / GTIN

3606480005688

Sales unit

pcs

Rated current

160 A

Range of product

Canalis

Range compatibility

Canalis KS busbar trunking; Canalis KT busbar trunking

Offer type

Classic

Product or component type

Tap-off unit

[Ie] rated operational current

160 A at 35 °C

Protection type

Circuit breaker: Compact NSX100; Circuit breaker: Compact NSX160

Provided equipment

circuit-breaker to be ordered separately

Mounting mode

Plate with fixed polarity

Tap-off unit polarity

3L+N+PE

Colour

White (RAL 9001)

Device application

Medium power distribution

[Ue] rated operational voltage

400 V depending on protective device; 500 V depending on protective device

[Uimp] rated impulse withstand voltage

6.8 kV

[Ui] rated insulation voltage

400 V depending on protective device; 500 V depending on protective device

Network frequency

50/60 Hz

Control type

Extended rotary handle

Electrical connection

Crimp lug - ISO32 70 mm² flexible; Crimp lug - ISO32 70 mm² rigid

door/cover opening side

Right

Tap-off unit disconnection mode

By rotary operating handle

Number of openings

1 opening for FL21 gland plate

Standards

IEC 61439-6; IEC 61439-1

Body material

Metal

Width

450 mm

Depth

246 mm

depth (door open)

625.5 mm

Height

310 mm

Product weight

9.5 kg

Earthing system

TT; TN-S; IT

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

26.000 cm

Package 1 Width

34.000 cm

Package 1 Length

49.000 cm

Package 1 Weight

9.554 kg

Unit Type of Package 2

P12

Number of Units in Package 2

8

Package 2 Height

71.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

88.432 kg

Country of origin

FR

Warranty (in months)

18

RAL-number

9001

With locking

No

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Number of poles

4

Length

482 mm

Degree of protection (IP)

IP55

Branch off type

Pipe in-lead

Rated voltage AC 50 Hz

230–690 V

Rated current AC 50 Hz

160 A

HS Code

8536.90
