Canalis KS Switchboard Connection 500–630 A
Pricing
Request a quote
We reply within 24 hours
Product Description

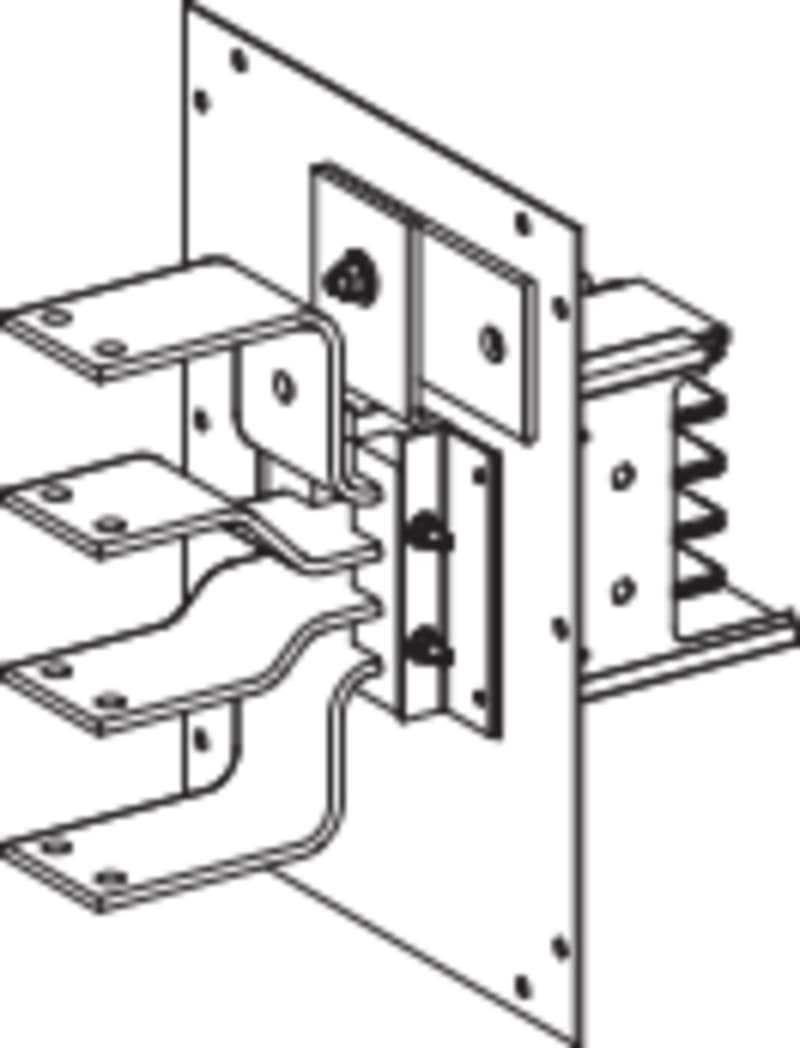

Schneider Electric KSA630AE4 Canalis KS busbar trunking switchboard (panel) connection unit, 500–630 A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA630AE4
- EAN / GTIN
- 3606480005060
- Sales unit
- pcs
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Offer type
- Advanced; Rising main
- Product or component type
- Flange feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 630 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Left; Right
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Bar
- Width
- 338 mm
- Depth
- 290 mm
- Height
- 370 mm
- Product weight
- 10.6 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 22.000 cm
- Package 1 Width
- 39.300 cm
- Package 1 Length
- 50.500 cm
- Package 1 Weight
- 13.210 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 12
- Package 2 Height
- 90.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 170.520 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 4
- Length
- 338 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 690 V
- Rated current AC 50 Hz
- 630 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005060
- SAP 1200721767
- Code 83832390
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Modicon X80 Hardened 40-Pin Removable Spring Terminal Block
BMXFTB4020H
Schneider Electric
Push-button flush green with text (ZB4FA336)
Schneider Electric
Schneider Electric TMC4PACK01 Analogue Input Cartridge M241, packaging, 2 inputs
Schneider Electric

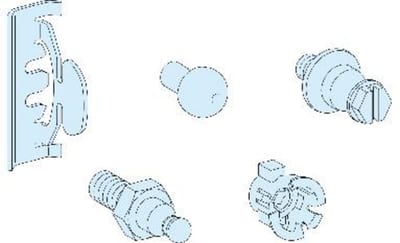

Schneider Electric PrismaSeT P Door Locking Kit
LVS01105
Schneider Electric

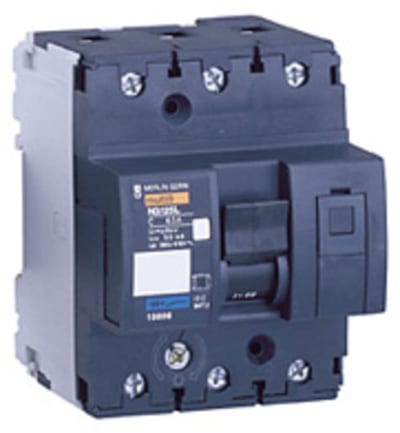

NG125L/B 16-3 Modular Power Switch
18760
Schneider Electric

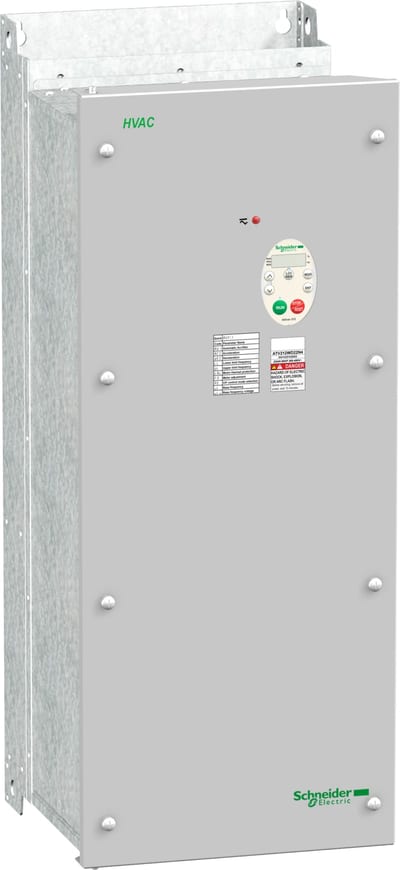

Schneider Electric variable speed drive ATV212 - 30kW - 40hp - 480V - 3PH - EMC class C1 - IP55 ATV212WD30N4C
Schneider Electric

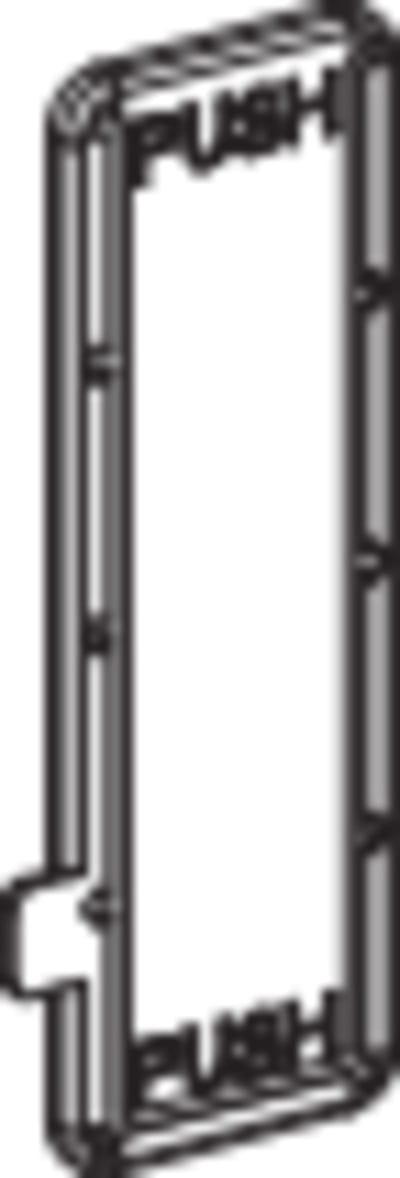

Cover Outletspunkt IP55 (KSB400ZB1)
Schneider Electric

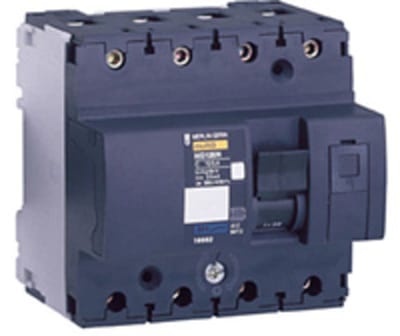

NG125L/B 32-4 Modular Power Switch
