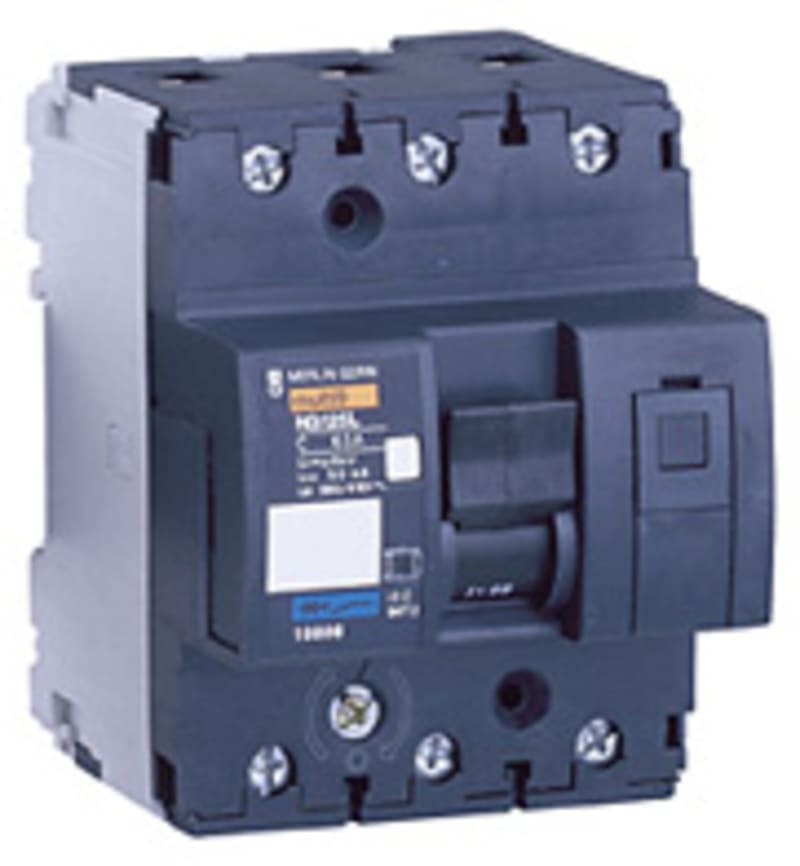

NG125L/B 16-3 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18760 NG125L/B 16-3 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18760
- EAN / GTIN
- 3303430187608
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Power loss
- 2.4 W
- Built-in depth
- 47 mm
- Release characteristic
- B
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 16 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187608
- SAP 1000032359
- Code 8235730
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive ATV212 - 30kW - 40hp - 480V - 3PH - EMC class C1 - IP55 ATV212WD30N4C
Schneider Electric
Cover Outletspunkt IP55 (KSB400ZB1)
Schneider Electric
NG125L/B 32-4 Modular Power Switch
18772
Schneider Electric
NG125L/C 16-3 Modular Power Switch
18800
Schneider Electric
Schneider Electric TransferPacT Remote, 160A, 400V, 3P, Remote, frame 250A TR25D3R1604TPE
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100M AC/DC, 25KA/415VAC, 2 poles, TMD trip unit 25A C10M2TM025
Schneider Electric

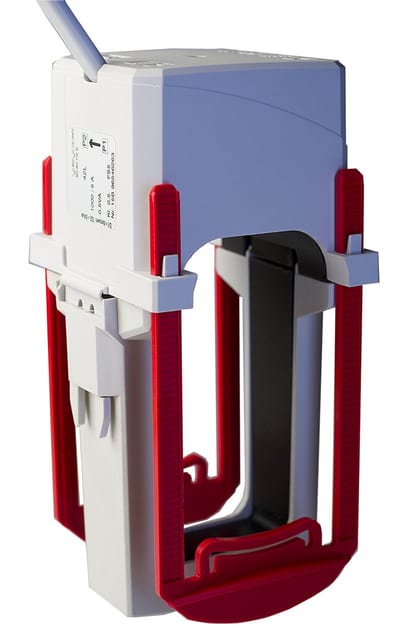

Divisible current transformer HM030 300/5A
