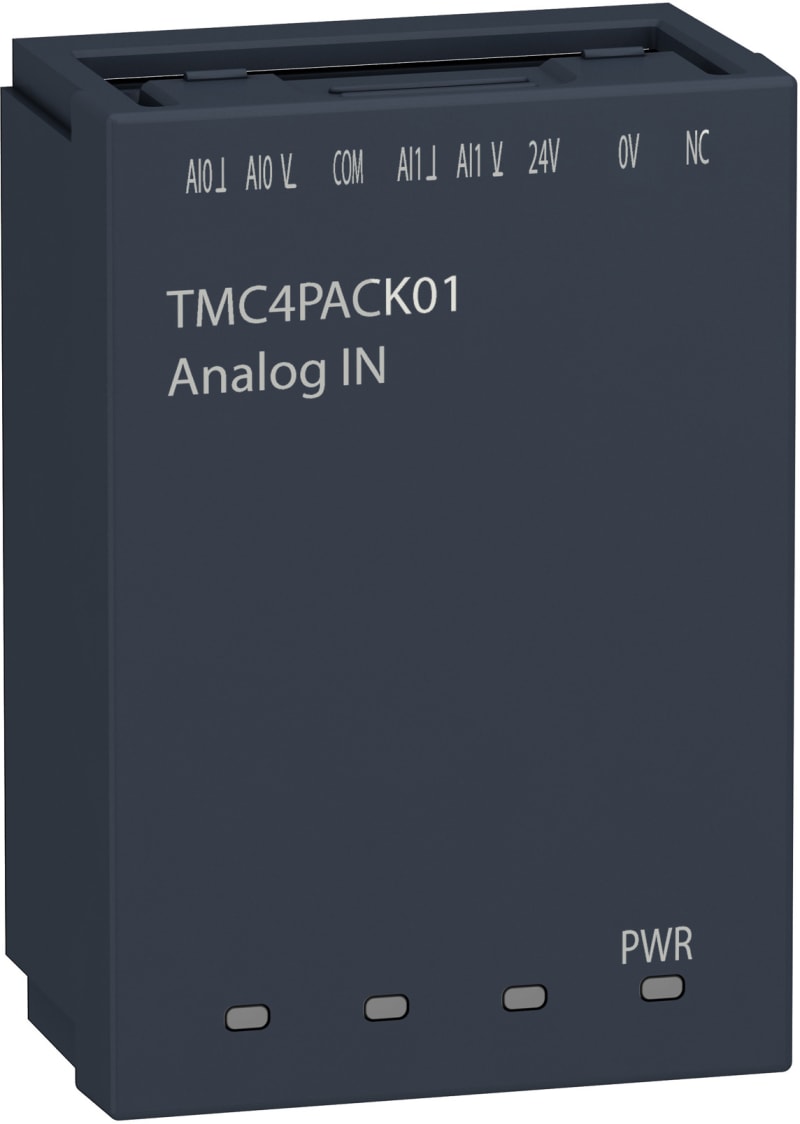

Schneider Electric TMC4PACK01 Analogue Input Cartridge M241, packaging, 2 inputs

Schneider Electric TMC4PACK01 Accessories Modicon PLC - M241 cassette - "Packaging" 2 analogue inputs.

Manufacturer part number (MPN)

TMC4PACK01 EAN / GTIN: 3606480649196 Sales unit: pcs Package quantity: 27 pcs Range of product: Modicon M241 Product or component type: Analogue input cartridge Product specific application: Packaging Product compatibility: Modicon M241C Analogue input number: 2 Analogue input type: current 4...20 mA; current 0...20 mA; voltage 0...10 V Analogue input resolution: 16 bits LSB value: 1 mVvoltage 0...10 V; 2 µAcurrent 0...20 mA; 2 µAcurrent 4...20 mA Sampling duration: 10 ms Absolute accuracy error: +/- 0.2 % of full scale at 25 °C Temperature drift: +/- 0.006 %FS/°C Repeat accuracy: +/- 0.2 %FS Non-linearity: +/- 0.05 %FS Cross talk: 80 dB Type of cable: Twisted shielded pairs cable Electrical connection: 1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for inputs and supply Maximum cable distance between devices: Twisted shielded pairs cable: <30 m for input Insulation: Between input and internal logic at 500 V DC; Non-insulated between inputs Supply voltage limits: 20.4…28.8 V Local signalling: 1 LED (green) for PWR Height: 50 mm Depth: 21 mm Width: 34 mm Product weight: 0.055 kg Permissible continuous overload: 40 mA, analogue input type: current; 30 V, analogue input type: voltage Input impedance: = 1 MOhm voltage Immunity to microbreaks: 10 ms Number of Units in Package 1: 1 Country of origin: ID Warranty (in months): 18 Power consumption: 1.1 W Number of analogue inputs: 2 Analogue inputs configurable: No Analogue outputs configurable: No Input, current: Yes Input, voltage: Yes Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: No Resolution of the analogue inputs: 12 Bit Output, current: No Output, voltage: No Output signal configurable: No Type of electric connection: Screw connection Suitable for safety functions: No SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: None Explosion safety category for dust: None

HS Code

8538.90

• EAN 3606480649196
• SAP 1000601538
• Code 8162846
