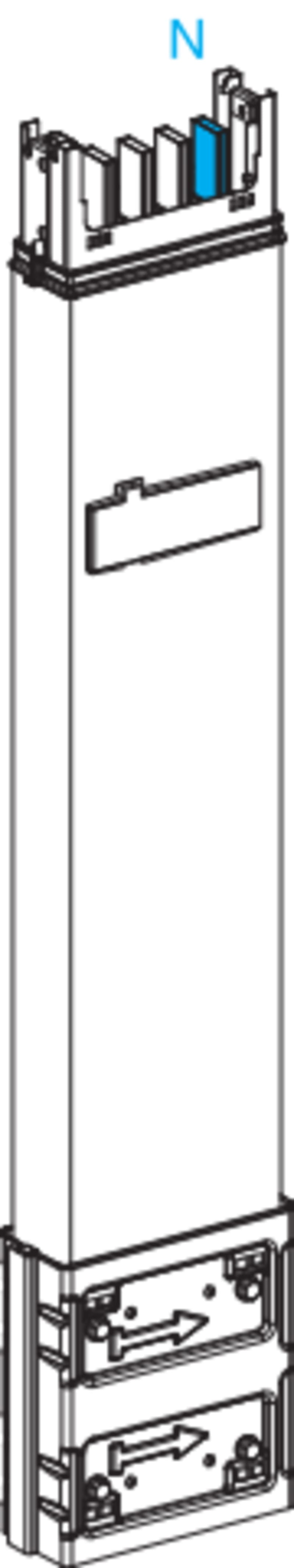

Ladders 400A 0,8M 1 Outlet

Schneider Electric KSA400ED4081 Ladders 400A 0,8M 1 outlet.

Manufacturer part number (MPN)

KSA400ED4081

EAN / GTIN

3606480004797

Sales unit

pcs

Rated current

400 A

Range

Canalis

Device short name

KSA

Offer type

Rising main

Product or component type

Busbar trunking

Busbar description

Vertical distribution length

Product compatibility

Canalis KSA busbar trunking 400 A

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

Number of tap-off outlets

1

[Ie] rated operational current

400 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

mounting mode

By screws

Dimension type

Fix

Length

0.8 m

Colour

White (RAL 9001)

Number of poles

4

Neutral position

Right

Mounting position

Vertical

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ui] rated insulation voltage

690 V

[Icw] rated short-time withstand current

18.8 kA

[Ipk] rated peak withstand current

49.2 kA

Electrical connection

Lubricated sliding contact

Width

54 mm

Height

146 mm

Product weight

7.8 kg

Radiated magnetic field

1 µT

Thermal stress limit

354000 kA².s

THDI

0…15 % 400 A; 15…33 % 315 A; 33…100 % 250 A

Maximum voltage drop

<0.022 V with power factor = 0.9 at 50 Hz with 1A for 100 m long; <0.022 V with power factor = 0.8 at 50 Hz with 1A for 100 m long; <0.021 V with power factor = 0.7 at 50 Hz with 1A for 100 m long; <0.018 V with power factor = 1 at 50 Hz with 1A for 100 m long

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for operation

35 °C (without derating); 55 °C (with derating factor)

Number of Units in Package 1

1

Country of origin

FR

Warranty (in months)

18

Number of conductors (without earthing)

4

Rated current AC 50 Hz

400 A

Rated voltage AC 50 Hz

230–690 V

Number of tap-off units

1

Expansion equalization

No

Fireproof bulkhead

No

RAL-number

9001

Degree of protection (IP)

IP55

HS Code

8536.90

• EAN 3606480004797
• SAP 1200721750
• Code 83832372
