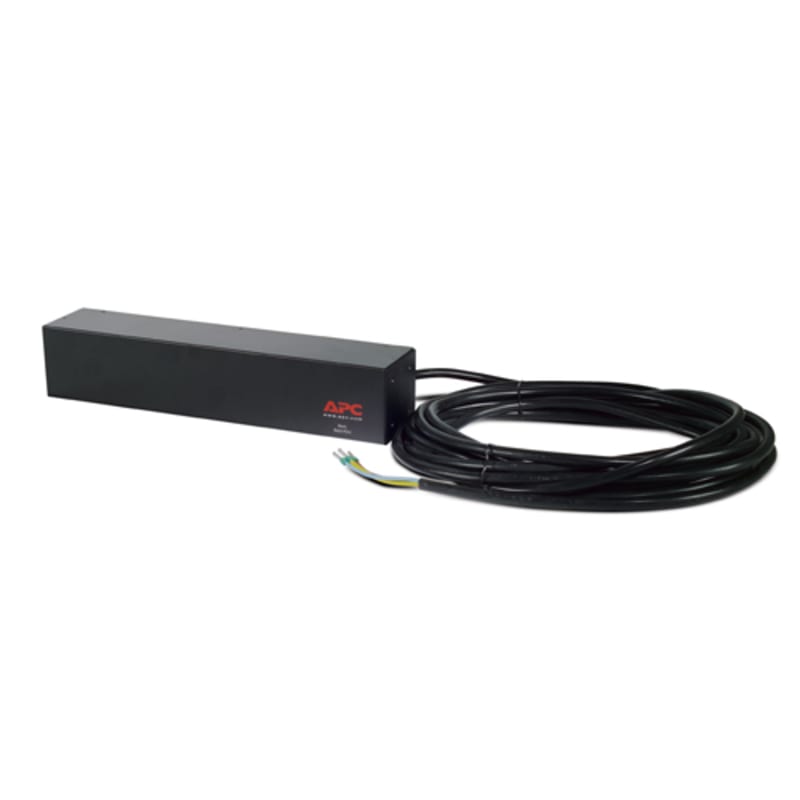

Schneider Electric Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC C19 AP7585
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP7585 Rack PDU Extender, Basic, 2U, 32A, 230V,.
Technical Specifications
- Manufacturer part number (MPN)
- AP7585
- EAN / GTIN
- 0731304224181
- Sales unit
- pcs
- Voltage
- 230 V
- Rated current
- 32 A
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Cord length
- 8.53 m
- Number of cables
- 1
- Provided equipment
- Installation guide; Rack mounting brackets
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 89 mm
- Width
- 437 mm
- Output Voltage
- 230 V
- Depth
- 89 mm
- Product weight
- 4.09 kg
- Mounting location
- Front; Rear
- Mounting preference
- Lower
- mounting mode
- Rack-mounted
- Rack units
- 2U
- Mounting position
- Horizontal
- Input current limits
- 32 A
- Load capacity
- 7360 VA
- Network frequency
- 50/60 Hz
- Number of input connectors
- 1 hard wire 3-wire
- Outlet type and quantity
- 4 IEC 60320 C19
- Product certifications
- CE; GOST; VDE
- Ambient air temperature for operation
- 0…45 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 32 A
- Mounting direction
- Horizontal
- Electrical connection
- Connection cable with plug
- Cable length
- 8.5 m
- Number of C19 socket outlets
- 4
- Number of height units
- 2
- Length
- 89 mm
- Supply voltage
- 230 V
- Overvoltage category
- 1
- Interface ethernet
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304224181
- SAP 1000455549
- Code 8217942
