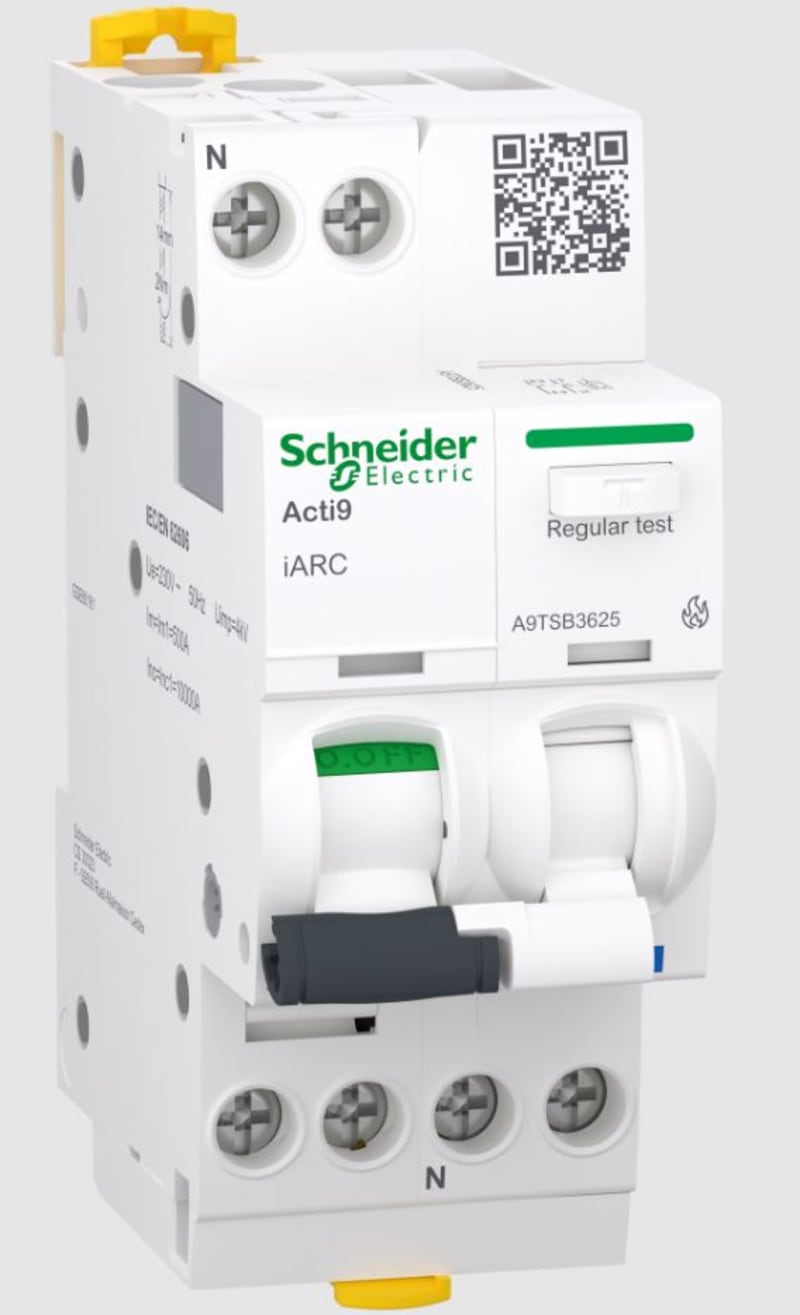

Schneider Electric Arc fault detection switch, ACTI9 iARC, 1P+N, 25A A9TSB3625
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9TSB3625 Arc-fault protection - with load-break switch - iARC 2P/1+N 25A.
Technical Specifications
- Manufacturer part number (MPN)
- A9TSB3625
- EAN / GTIN
- 3606481906137
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Rated current
- 25 A
- Number of poles
- 2P
- range of product
- Acti9
- Product or component type
- Arc fault detection switch
- Product specific application
- Arc fault detection
- Product name
- Acti9 iARC
- Device short name
- iARC
- Poles description
- 1P + N
- Neutral position
- Left
- Network type
- AC
- Rated breaking and making capacity
- Im = 500 A; Im1 = 500 A
- Rated conditional short-circuit current
- Inc 10000 A; Icn1 10000 A
- Device location in system
- Outgoer
- [In] rated current
- 25 A
- Network frequency
- 50 Hz
- [Ue] rated operational voltage
- 230 V AC 50 Hz conforming to IEC 62606
- [Ui] rated insulation voltage
- 250 V
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to IEC 62606
- Threshold tripping voltage
- 275 V for +/- 5 V
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON, OFF, fault trip; LED arc fault diagnostic
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Colour
- White (RAL 9003)
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles 230 V AC 50 Hz conforming to IEC 62606
- Connections - terminals
- Tunnel type terminal1…16 mm² rigid; Tunnel type terminal1…10 mm² flexible
- cable entry
- Top and bottom
- Locking options description
- Padlocking device
- Wire stripping length
- 14 mm
- Tightening torque
- 2 N.m
- 9 mm pitches
- 4
- Height
- 91 mm
- Width
- 36 mm
- Depth
- 73 mm
- Product weight
- 210 g
- Pollution degree
- 2 conforming to IEC 62606
- Overvoltage category
- III
- Tropicalisation
- Severity B conforming to IEC 60068-2-30 for 28 d
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…40 °C
- Ambient air temperature for storage
- -40…80 °C
- Standards
- IEC 62606
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481906137
- SAP 1200617792
- Code 83022933
Product Documentation
