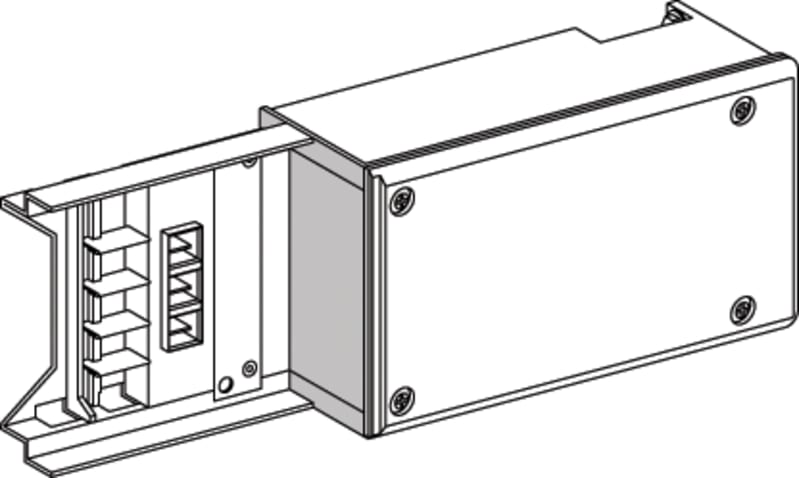

End feed 100A LH/PURE WHITE (KNT100AB4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KNT100AB4 End feed 100A V/H.
Technical Specifications
- Manufacturer part number (MPN)
- KNT100AB4
- EAN / GTIN
- 3606480003301
- Sales unit
- pcs
- Package quantity
- 45 pcs
- Rated current
- 100 A
- Range of product
- Canalis
- Product name
- KN
- Device short name
- KNT
- Product compatibility
- Canalis KNT busbar trunking 100 A
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 100 A
- [Ue] rated operational voltage
- 230...500 V
- Number of circuits
- 1
- Protection type
- Without protection
- Control type
- Remote control
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Left; Right
- mounting mode
- By clips
- Mounting support
- Busbar
- Connections - terminals
- Lug for 35 mm² flexible; Lug for 50 mm² rigid
- Width
- 340 mm
- Depth
- 112 mm
- Height
- 127 mm
- Product weight
- 1.12 kg
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 45
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 4
- Length
- 340 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–500 V
- Rated current AC 50 Hz
- 100 A
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606480003301
- SAP 1200270017
- Code 82238252
Product Documentation
More from Schneider Electric
Schneider Electric

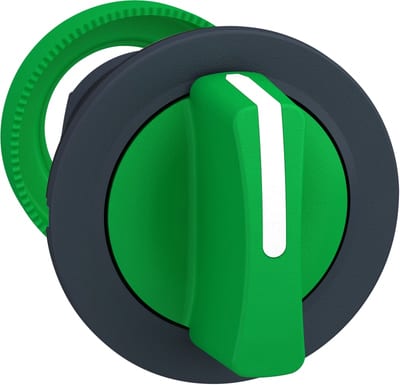

Schneider Electric flush mounted green selector switch head 3 pos return left to center ZB5FD703
Schneider Electric

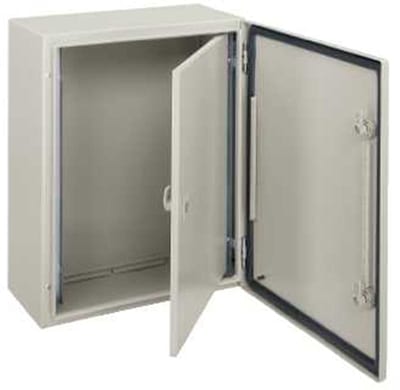

Innerdoor 12 X 6 (NSYPIN126)
Schneider Electric

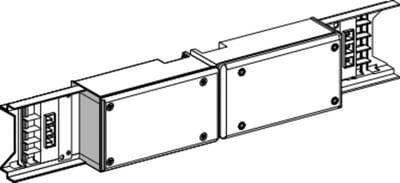

Center feed 100A (KNA100ABT4)
Schneider Electric

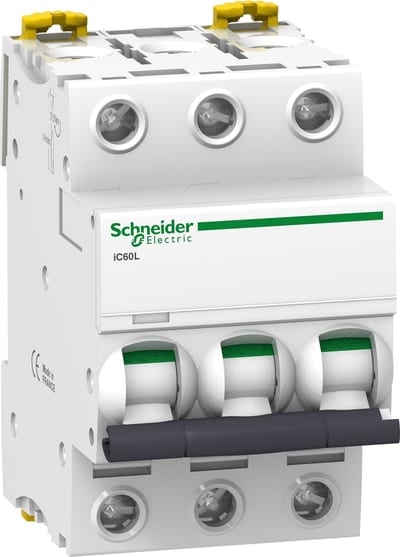

Schneider Electric A9F95301 ACTI9 IC60L Miniature Circuit Breaker 3P 1 A, Curve K
Schneider Electric

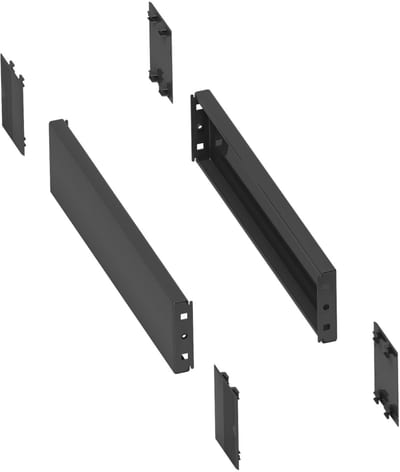

Schneider Electric PanelSet SF side panel plinth - 100X600X1000 mm NSYSPS10100
Schneider Electric

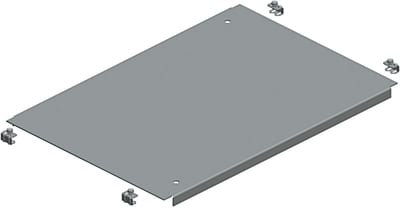

Gland Plate 8X8 (NSYEC88)
Schneider Electric

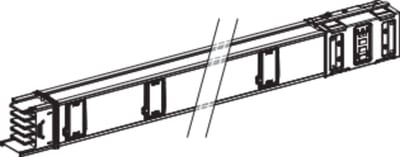

RAIL 1000A 3M 6 Outlet
KSA1000ED4306
Schneider Electric

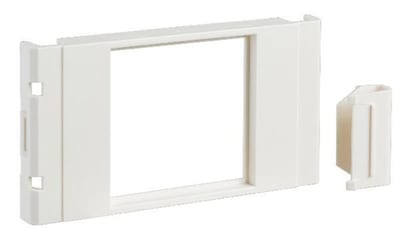

Mounting plate with Cut-Out 72X72 PrismaSeT G/P
