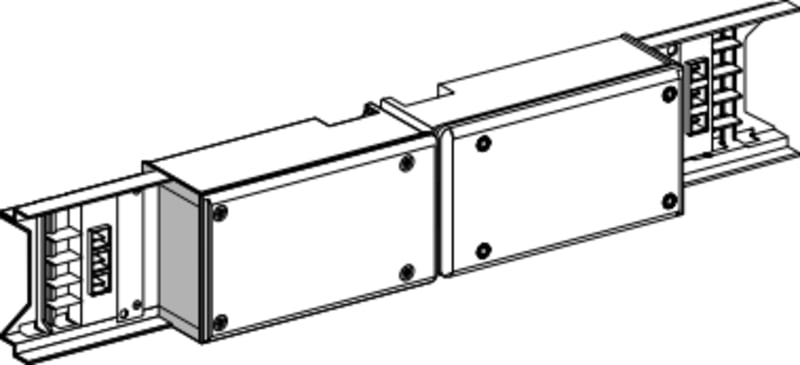

Center feed 100A (KNA100ABT4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KNA100ABT4 Center feed 100A.
Technical Specifications
- Manufacturer part number (MPN)
- KNA100ABT4
- EAN / GTIN
- 3606480003004
- Sales unit
- pcs
- Rated current
- 100 A
- Range of product
- Canalis
- Product name
- KN
- Device short name
- KNA
- Product compatibility
- Canalis KNA busbar trunking 100 A
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 100 A
- [Ue] rated operational voltage
- 230...500 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Central
- mounting mode
- By clips
- Mounting support
- Busbar
- Connections - terminals
- Lug for 35 mm² flexible; Lug for 35 mm² rigid
- Width
- 685 mm
- Depth
- 112 mm
- Height
- 127 mm
- Product weight
- 2.94 kg
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 4
- Length
- 685 mm
- Degree of protection (IP)
- IP55
- Power supply position
- Centre
- Rated voltage AC 50 Hz
- 230–500 V
- Rated current AC 50 Hz
- 100 A
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480003004
- SAP 1000571968
- Code 8689431
Product Documentation
