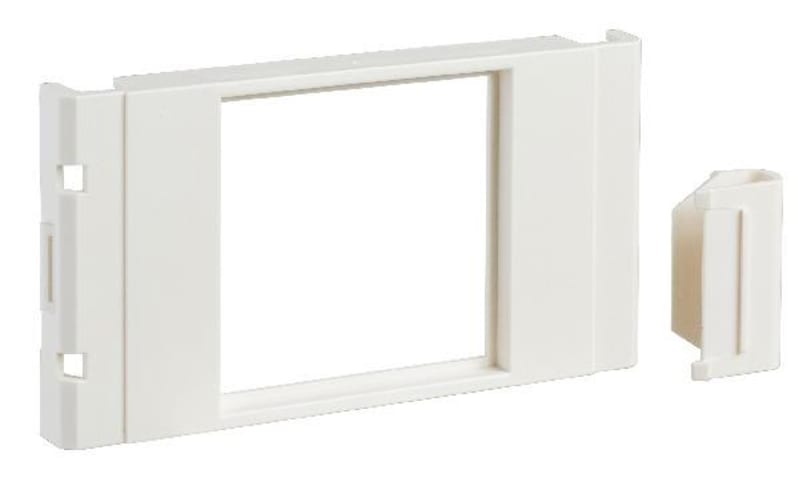

Mounting plate with Cut-Out 72X72 PrismaSeT G/P

Schneider Electric LVS03902 Perforated mounting plate For 72X72 Instrumenter-PrismaSeT G/P.

Manufacturer part number (MPN)

LVS03902

EAN / GTIN

3606481885678

Sales unit

pcs

Package quantity

200 pcs

Range

PrismaSeT

Range of product

PrismaSeT G; PrismaSeT P

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 400 mm depth 400 mm; Cubicle - width 650 mm depth 400 mm; Cubicle duct - width 300 mm depth 400 mm

Installed device

Human-switchboard interface: 72 x 72 mm device; Vigirex: RH10; Vigirex: RH21; Vigirex: RH99

Number of vertical modules [50 mm]

3 module(s): 72 x 72 mm device in 600 mm Widefloor-standing enclosure; 3 module(s): 72 x 72 mm device in 600 mm Widewall-mounted enclosure; 3 module(s): 72 x 72 mm device in 650 mm Widecubicle; 3 module(s): 72 x 72 mm device in 300 mm Widecubicle duct; 3 module(s): 72 x 72 mm device in 400 mm Widecubicle; 3 module(s): RH10 in 600 mm Widefloor-standing enclosure; 3 module(s): RH10 in 600 mm Widewall-mounted enclosure; 3 module(s): RH10 in 650 mm Widecubicle; 3 module(s): RH10 in 300 mm Widecubicle duct; 3 module(s): RH10 in 400 mm Widecubicle; 3 module(s): RH21 in 600 mm Widefloor-standing enclosure; 3 module(s): RH21 in 600 mm Widewall-mounted enclosure; 3 module(s): RH21 in 650 mm Widecubicle; 3 module(s): RH21 in 300 mm Widecubicle duct; 3 module(s): RH21 in 400 mm Widecubicle; 3 module(s): RH99 in 600 mm Widefloor-standing enclosure; 3 module(s): RH99 in 600 mm Widewall-mounted enclosure; 3 module(s): RH99 in 650 mm Widecubicle; 3 module(s): RH99 in 300 mm Widecubicle duct; 3 module(s): RH99 in 400 mm Widecubicle

Standards

IEC 61439-2

Product certifications

ASTA

Material

Plastic

Colour

White (RAL 9001)

Width

81 mm

Height

150 mm

Depth

15 mm

Product weight

0.04 kg

Functional unit

600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 72 x 72 mm device 5 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 72 x 72 mm device 5 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 72 x 72 mm device 5 3; 300 mm 400 mm PrismaSeT P cubicle duct human-switchboard interface 72 x 72 mm device 5 3; 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface 72 x 72 mm device 5 3; 600 mm PrismaSeT G floor-standing enclosure Vigirex 5 3; 600 mm PrismaSeT G wall-mounted enclosure Vigirex 5 3; 650 mm 400 mm PrismaSeT P cubicle Vigirex 5 3; 300 mm 400 mm PrismaSeT P cubicle duct Vigirex 5 3; 400 mm 400 mm PrismaSeT P cubicle Vigirex 5 3

Number of Units in Package 1

1

Number of Units in Package 2

200

Warranty (in months)

18

Model

Blind plate

RAL-number

9001

Country of origin

France

HS Code

3926.90
