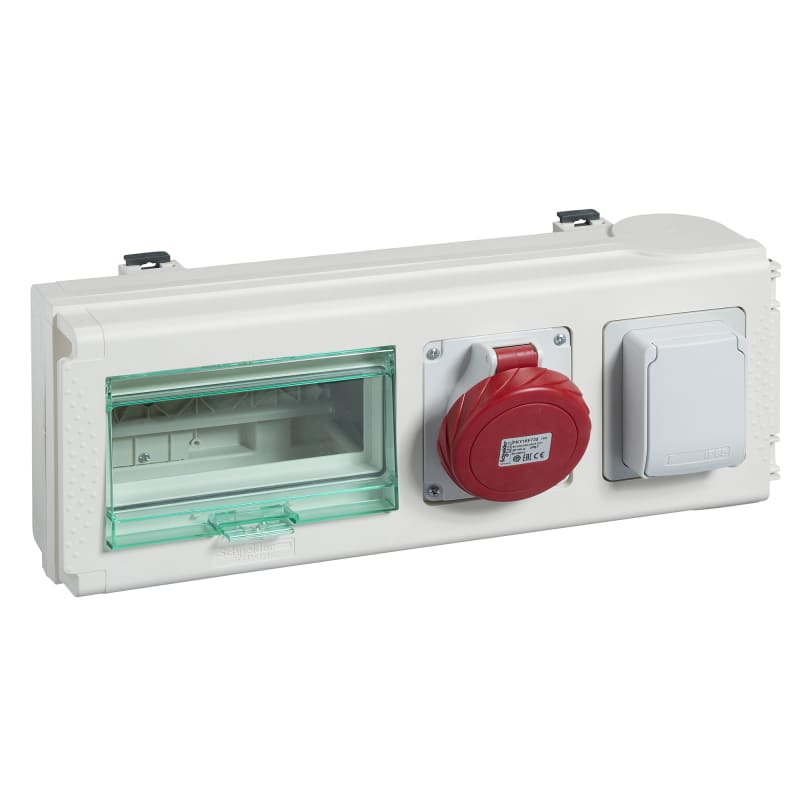

BOX 10/16A 2XDIN Connector

Schneider Electric KNB32CP11D BOX 10/16A 2XDIN CONNECTOR.

Manufacturer part number (MPN)

KNB32CP11D

EAN / GTIN

3606480006210

Sales unit

pcs

Range of product

Canalis

Product name

KN

Product or component type

Tap-off unit

Product compatibility

Modular device

[Ie] rated operational current

32 A at 35 °C

Tap-off unit socket description

Domestic Schuko10/16A 2P+T230V

Tap-off unit 2nd socket description

Domestic Schuko10/16A 2P+T230V

Tap-off unit polarity

3L+N+PE

Provided equipment

Blanking plate; Socket-outlet

Colour

White (RAL 9001)

Device application

Power socket distribution; Low power distribution

[Ue] rated operational voltage

230...500 V depending on protective device

[Uimp] rated impulse withstand voltage

6 kV

[Ui] rated insulation voltage

400 V depending on protective device; 500 V depending on protective device

Network frequency

50/60 Hz

Protection type

Without protection

Tap-off unit disconnection mode

By drawing out

Standards

IEC 61439-6; IEC 60439-2

number of 18mm modules

8

Width

434 mm

Depth

141 mm

Height

165 mm

Product weight

2.9 kg

Earthing system

TT - busbar trunking; TN-S - busbar trunking; TN-C - busbar trunking; IT - busbar trunking; TT - tap-off unit; TN-S - tap-off unit; IT - tap-off unit

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

33

Warranty (in months)

18

RAL-number

9001

With locking

No

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Number of poles

4

Length

434 mm

Degree of protection (IP)

IP55

Number of other socket outlets

2

Branch off type

Socket outlet

Rated voltage AC 50 Hz

230–500 V

Type of socket outlets

Socket outlet with protective contact CEE 7/3 (type F) 16 A

Rated current AC 50 Hz

32 A

Country of origin

Italy

HS Code

8536.90

• EAN 3606480006210
• SAP 1200502774
• Code 82626414
