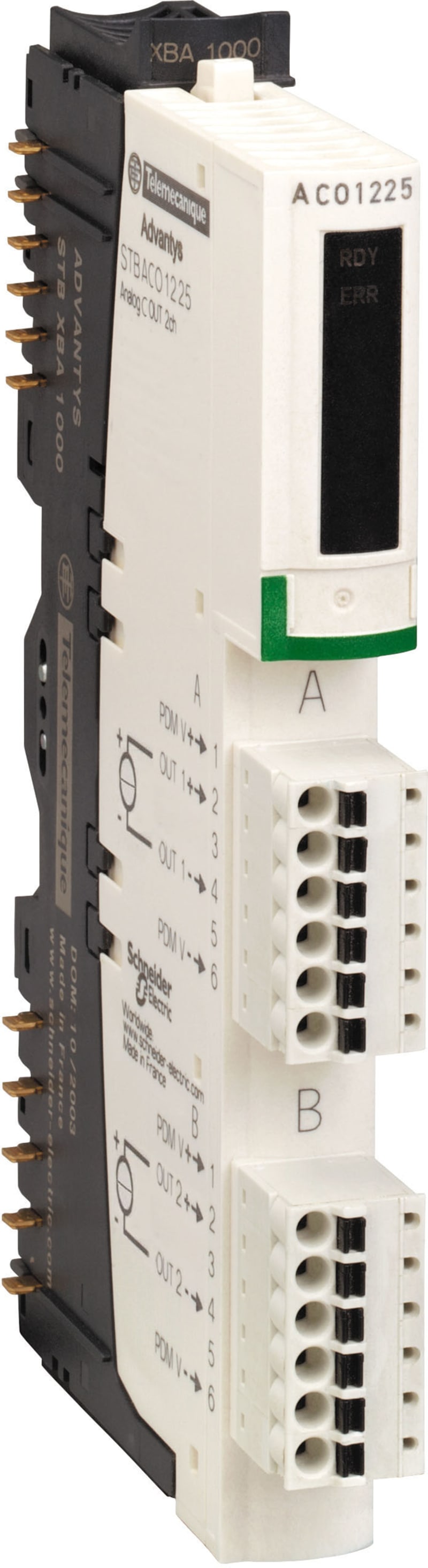

Schneider Electric basic analog output kit STB - 4..20 mA - 2 O - 10 bits STBACO1225K
Part numberSTBACO1225KEAN / GTIN3595863948790HS code8538.90
Tools
Hand Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric STBACO1225K STB kit 2 out analog, 4-20mA, 10bit, basic.
Technical Specifications
- Manufacturer part number (MPN)
- STBACO1225K
- EAN / GTIN
- 3595863948790
- Sales unit
- pcs
- Output signal
- 4–20 mA
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Basic analog output kit
- Kit composition
- STBXBA1000 base; STBACO1225 module; STBXTS2100, 6-terminal spring clamp connector; STBXTS1100, 6-terminal screw type connector
- Product compatibility
- Power distribution module STBPDT3100/3105; Mounting base STBXBA1000
- Analogue input number
- 0
- Analogue output number
- 2
- Analogue output current
- 0.02 A
- Update time
- 25 ms
- Conversion time
- 900 ms
- Analogue output type
- Current: 4...20 mA
- Height
- 13.9 mm
- Width
- 128.3 mm
- Depth
- 70 mm
- Marking
- CE
- Relative humidity
- 95 % at 60 °C without condensation
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Number of Units in Package 3
- 448
- Country of origin
- ID
- Warranty (in months)
- 18
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Input, current
- No
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- No
- Resolution of the analogue inputs
- 10 Bit
- Output, current
- Yes
- Output, voltage
- No
- Output signal configurable
- No
- Resolution of the analogue outputs
- 10 Bit
- Number of analogue outputs
- 2
- Analogue inputs configurable
- No
- Analogue outputs configurable
- Yes
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595863948790
- SAP 1000014998
- Code 8116043
Product Documentation
Document preview: Schneider Electric STBACO1225K — OEM Product Page
More from Schneider Electric
Schneider Electric

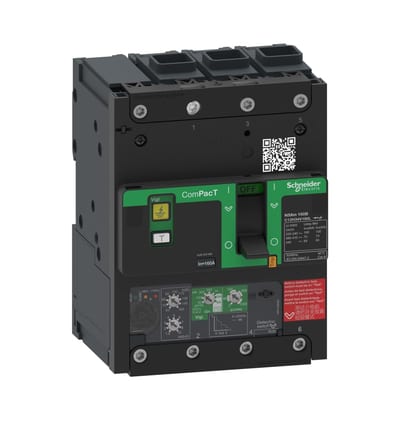

Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 3 poles, MicroLogic 4.1 trip unit 50A, EverLink lugs C11B34V050L
Schneider Electric

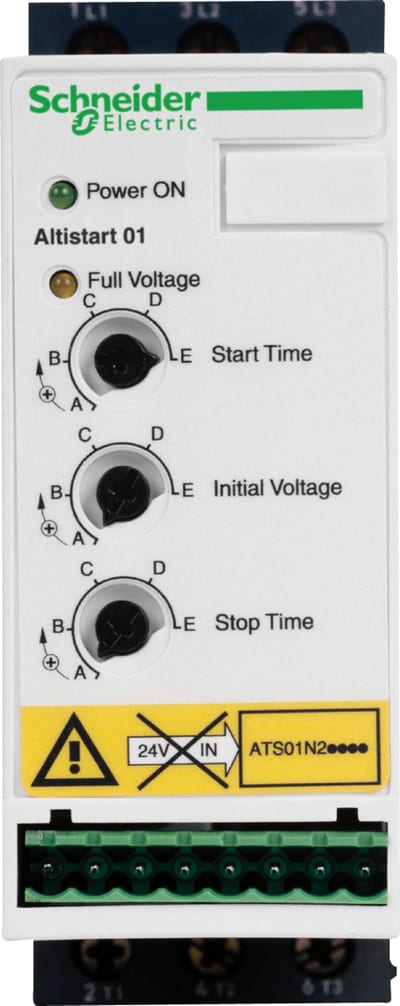

Soft start/stop 12A 440-480V
ATS01N212RT
Schneider Electric

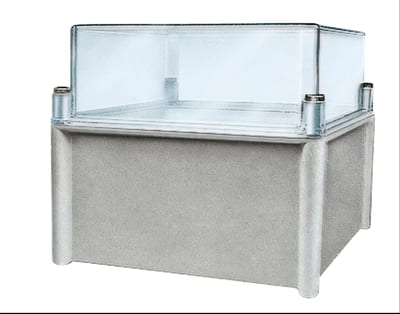

Schneider Electric PLS box, polyester rear, transparent PC cover IP65 27X36X18CM NSYPLS2736G
Schneider Electric

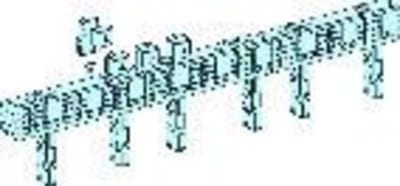

Schneider Electric Distribution block, LINERGY FM, 4P, 200A, 36M, 81HOLES LVS04026
Schneider Electric

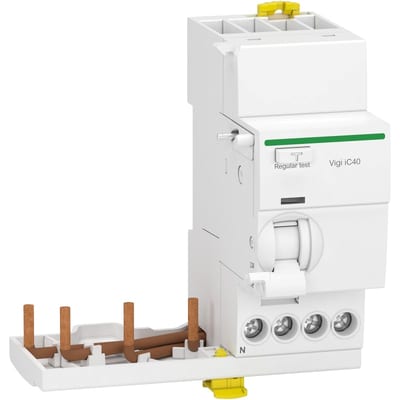

Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 3P+N, 40A, A-SI type, instantaneous, 300MA, 400VAC A9Y85740
Schneider Electric

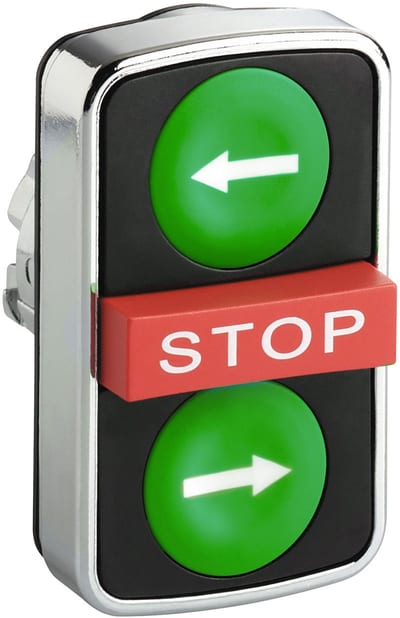

Triple.push button arrow h/v and STOP
ZB4BA73133
Schneider Electric

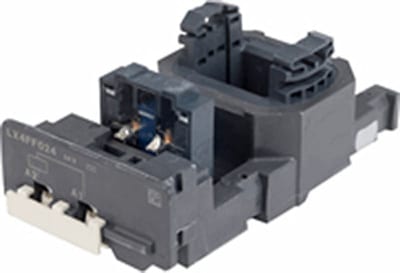

Schneider Electric TeSys F - contactor coil - LX4FF - 24 V DC LX4FF024
Schneider Electric

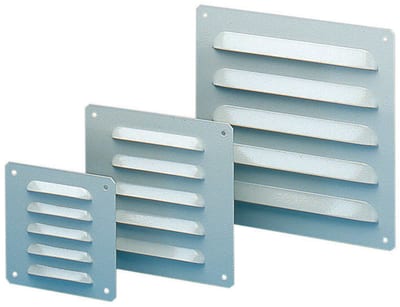

Schneider Electric Metal outlet grille cut-out 104X80MM ext dim 120X120MM IP23 NSYCAG170X190LM
