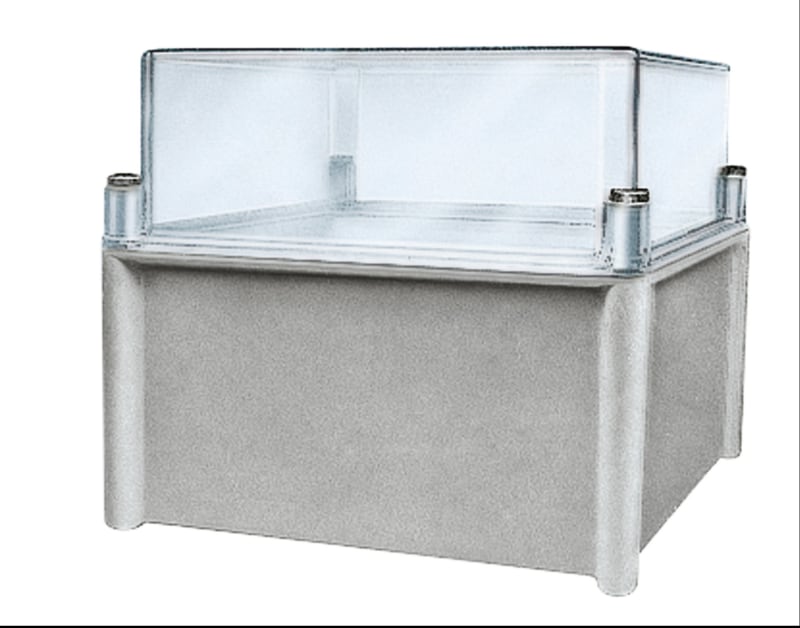

Schneider Electric PLS box, polyester rear, transparent PC cover IP65 27X36X18CM NSYPLS2736G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLS2736G Transp PLS 7035 box27x36x18.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLS2736G
- EAN / GTIN
- 3606480776878
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT PLS
- Device short name
- PLS
- Enclosure type
- Multi-purpose
- Category
- Insulating modular box
- Nominal height
- 270 mm
- Nominal width
- 360 mm
- Nominal depth
- 180 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 cover: on enclosure; 1 rear part: on enclosure; locking screws
- Body type
- One piece moulded
- Type of front cover
- Low transparent cover
- Lock type
- Slot screw
- Removable parts
- Cover locking screw
- Material
- Cover: polycarbonate; Rear: polyester reinforced with fibreglass
- Colour
- Body: grey (RAL 7035)
- Standards
- NEMA classification 13; IEC 62208; NEMA 4X
- Product certifications
- UL
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK09 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -30…70 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.000 cm
- Package 1 Width
- 29.000 cm
- Package 1 Length
- 38.000 cm
- Package 1 Weight
- 2.080 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 90
- Package 2 Height
- 186.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 200.430 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 360 mm
- Height
- 270 mm
- Depth
- 180 mm
- RAL-number
- 7035
- With mounting plate
- No
- Material quality
- Polyester
- Impact strength
- IK09
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776878
- SAP 1000752659
- Code 8488850
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Distribution block, LINERGY FM, 4P, 200A, 36M, 81HOLES LVS04026
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 3P+N, 40A, A-SI type, instantaneous, 300MA, 400VAC A9Y85740
Schneider Electric
Triple.push button arrow h/v and STOP
ZB4BA73133
Schneider Electric
Schneider Electric TeSys F - contactor coil - LX4FF - 24 V DC LX4FF024
Schneider Electric
Schneider Electric Metal outlet grille cut-out 104X80MM ext dim 120X120MM IP23 NSYCAG170X190LM
Schneider Electric

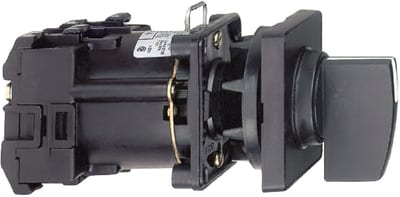

Cam switch 3 steps 1-Pole bottom
K1C003NCH
Schneider Electric

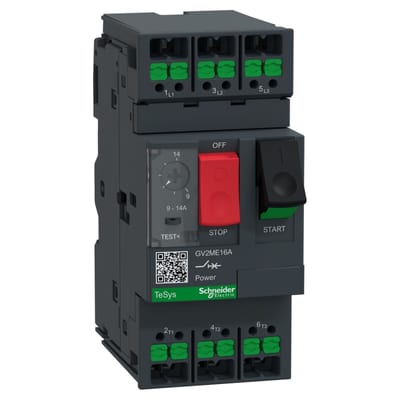

Schneider Electric Motor circuit breaker, TeSys Deca, 3P, AC-3/AC-3E, 9 to 14A, thermal magnetic, snap-in terminals, push button GV2ME16A
Schneider Electric

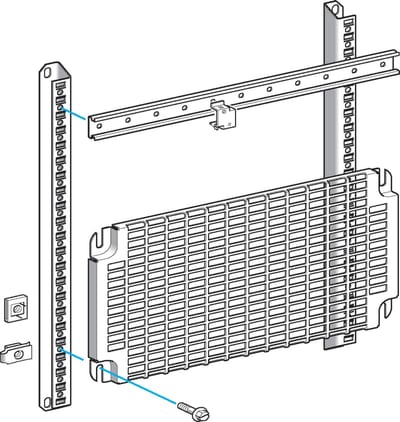

Schneider Electric Combined support bracket in vertical, PanelSeT SFN, PanelSeT SF, PanelSeT SM, steel DZ5MS10
