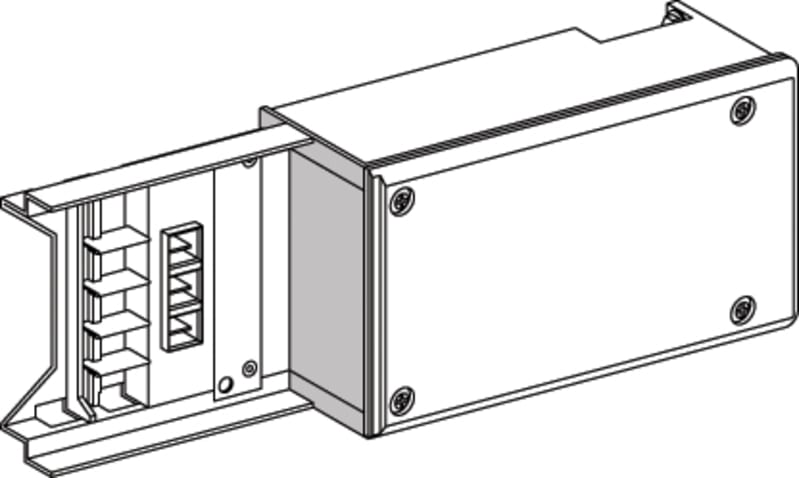

Schneider Electric KNA160AB4 END FEED UNIT 160 A

Schneider Electric KNA160AB4 END FEED UNIT 160 A is listed under Electrical Components. Sales unit: pcs; Rated current: 160 A; Range of product: Canalis; Product name: KN; Device short name: KNA; Product compatibility: Canalis KNA busbar trunking 160 A.

Manufacturer part number (MPN)

KNA160AB4

EAN / GTIN

3606480003073

Sales unit

pcs

Rated current

160 A

Range of product

Canalis

Product name

KN

Device short name

KNA

Product compatibility

Canalis KNA busbar trunking 160 A

Product or component type

Feed unit

Conductors material

Aluminium

[Ie] rated operational current

160 A

[Ue] rated operational voltage

230...500 V

Number of circuits

1

Busbar trunking polarity

3L + N + PE; L + N + PE

Protection type

Without protection

Control type

Without

Colour

White (RAL 9001)

Provided equipment

End cover

Mounting location

Left; Right

mounting mode

By clips

Mounting support

Busbar

Connections - terminals

Lug for 95 mm² flexible; Lug for 95 mm² rigid

Width

356 mm

Depth

130 mm

Height

185 mm

Product weight

2.8 kg

Standards

IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

16.000 cm

Package 1 Width

20.000 cm

Package 1 Length

38.000 cm

Package 1 Weight

3.100 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

24

Package 2 Height

85.000 cm

Package 2 Width

62.000 cm

Package 2 Length

92.000 cm

Package 2 Weight

85.000 kg

Country of origin

FR

Warranty (in months)

18

Model

Single

RAL-number

9001

Number of poles

4

Length

356 mm

Degree of protection (IP)

IP55

Power supply position

End

Rated voltage AC 50 Hz

230–500 V

Rated current AC 50 Hz

160 A

HS Code

8536.90

• EAN 3606480003073
• SAP 1000470787
• Code 8580326
