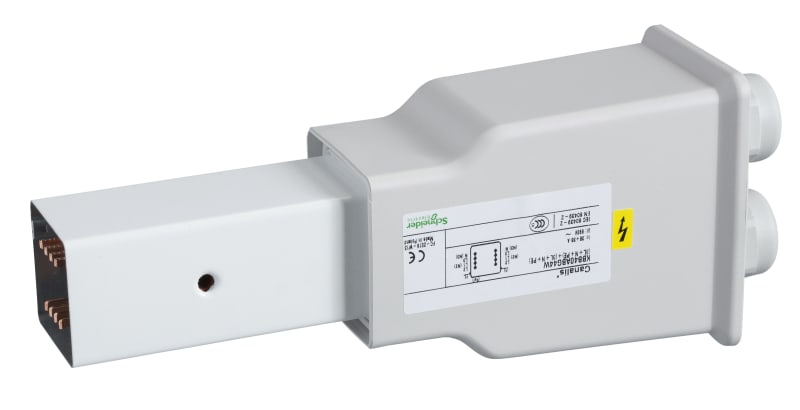

End feed 40A RH/LH 2X3L+N W
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KBB40ABG44W End feed 40A H/V 2X3L+N W.
Technical Specifications
- Manufacturer part number (MPN)
- KBB40ABG44W
- EAN / GTIN
- 3606480001062
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 40 A
- Range of product
- Canalis
- Device short name
- KBB
- Product compatibility
- Canalis KBB busbar trunking 25…40 A
- Offer type
- Classic; Control system
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 40 A; 25 A
- [Ue] rated operational voltage
- 230...400 V
- Number of circuits
- 2
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Communicating
- Communication port protocol
- DALI
- Colour
- White (RAL 9003)
- Provided equipment
- End cover
- Mounting location
- Left
- mounting mode
- By clips
- Mounting support
- Busbar
- Connections - terminals
- Terminal block - Pg 21 - screw clamp connector for 6…10 mm²
- Width
- 244 mm
- Depth
- 103.5 mm
- Height
- 75.5 mm
- Product weight
- 400 g
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- Country of origin
- CZ
- Warranty (in months)
- 18
- Model
- Double
- RAL-number
- 9001
- Number of poles
- 10
- Length
- 244 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–400 V
- Rated current AC 50 Hz
- 40 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480001062
- SAP 1000571964
- Code 8685197
Product Documentation
