U-DEL TEK-123 PV 2,5M - Black
Pricing
Request a quote
We reply within 24 hours
Product Description

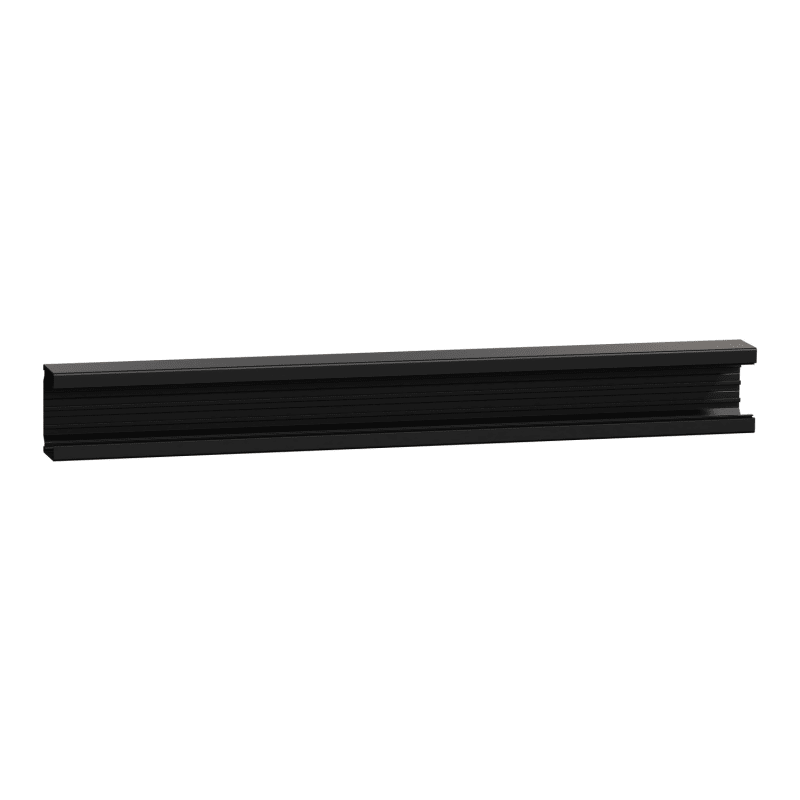

Schneider Electric INS60600 Thorsman - TEK-U123 - base - 72 mm - Black - 2,5 m.
Technical Specifications
- Manufacturer part number (MPN)
- INS60600
- EAN / GTIN
- 3606481069238
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Width
- 123 mm
- Depth
- 72 mm
- Length
- 2500 mm
- Covers included
- No
- Cover width 1
- 80 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Material
- Plastic
- Material quality
- Polyvinyl chloride (PVC)
- Halogen free
- No
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Colour
- Black
- RAL-number
- 9005
- Construction rear wall (inner side)
- Continuous other profile
- With protective foil
- Yes
- Number of plug-in partitions
- 3
- With duct connector
- No
- Bottom perforation
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Usable cross section
- 6449 mm²
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -5–60 °C
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606481069238
- SAP 1200696676
- Code 83551872
Product Documentation
More from Schneider Electric
Schneider Electric

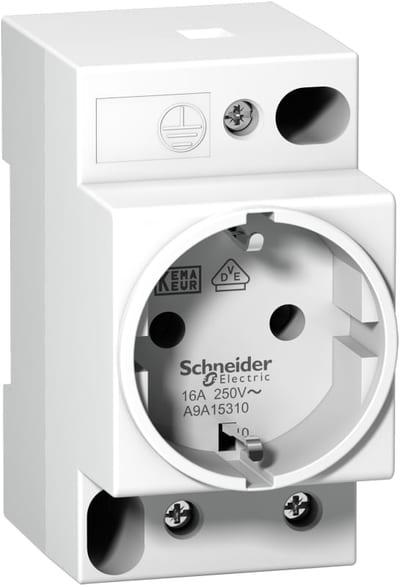

Schneider Electric DIN socket, ACTI9 iPC, 2P+E, 16A, 250VAC, german A9A15310
Schneider Electric

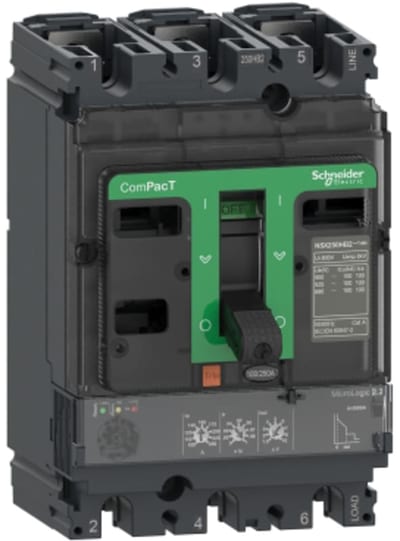

Schneider Electric Circuit breaker, ComPacT NSX160N, 50KA/415VAC, 3 poles, MicroLogic 2.2 trip unit 160A C16N32D160
Schneider Electric

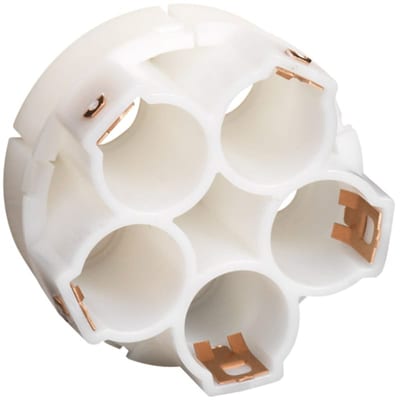

Enclosure coupling Combi 5X16MM
IMT36050
Schneider Electric
C60B 63-3 Selective RCBO A9
A9N26265
Schneider Electric
Schneider Electric Actassi KDB - Wall-Mounted KD Box 12U D600 F 19" Glazed NSYKDB12U6F
Schneider Electric
Schneider Electric iQuick PRD20R modular surge arrester - 3 poles + N - 350V - with remote transfer A9L16297
Schneider Electric

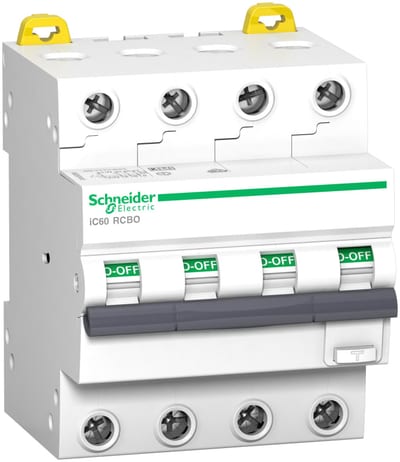

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 4P, 32A, C curve, 6000A/6KA, A type, 30MA A9D67432
Schneider Electric

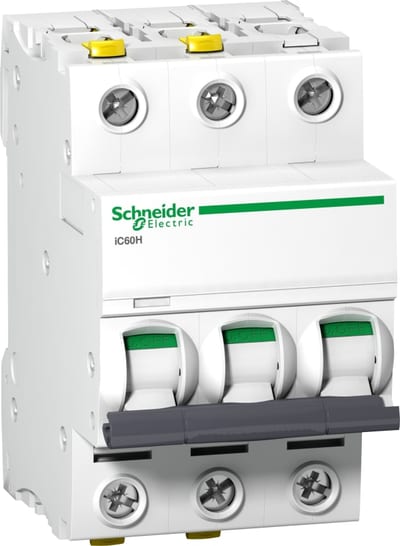

Schneider Electric A9F07332 ACTI9 IC60H Miniature Circuit Breaker 3P 32 A, Curve C
