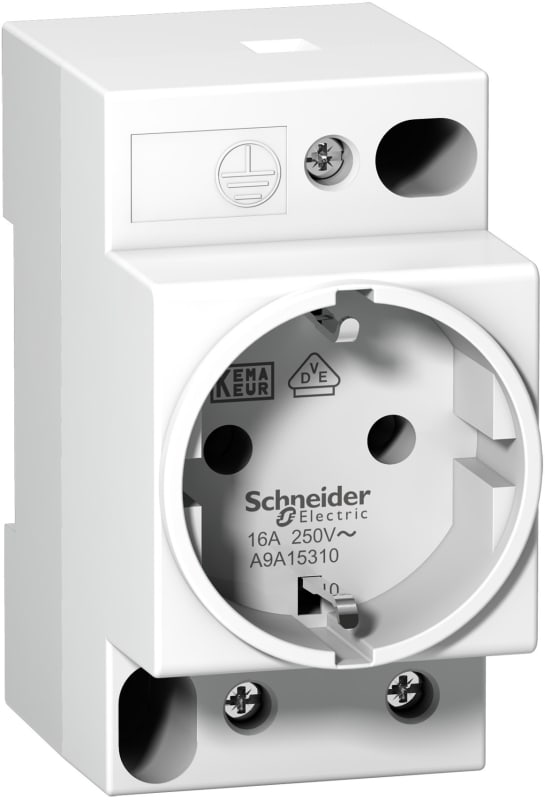

Schneider Electric DIN socket, ACTI9 iPC, 2P+E, 16A, 250VAC, german A9A15310
Pricing
Request a quote
We reply within 24 hours
Product Description
Socket outlet, PC, for DIN rail, 16A PNJ. Single socket outlet with earth, 16A, for DIN-rail mounting.
Technical Specifications
- Manufacturer part number (MPN)
- A9A15310
- EAN / GTIN
- 3606480097782
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- range of product
- Acti9
- Product name
- Acti9 iPC
- Product or component type
- Modular socket-outlet
- Device short name
- iPC
- Poles description
- 2P + E
- Outlet standard
- German
- [In] rated current
- 16 A
- [Ue] rated operational voltage
- 250 V AC 50/60 Hz
- mounting mode
- Fixed
- Mounting support
- Symmetrical DIN rail
- 9 mm pitches
- 5
- Height
- 81 mm
- Width
- 45 mm
- Depth
- 55 mm
- Product weight
- 100 g
- Colour
- White
- Connections - terminals
- Tunnel type terminal1 cable(s) 1…6 mm² flexible; Tunnel type terminal1 cable(s) 1…10 mm² rigid
- Wire stripping length
- 13 mm
- Tightening torque
- 1.2 N.m
- Standards
- VDE 0620; UNE 20315-1-1
- Quality labels
- EAC; KEMA; VDE
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- IK degree of protection
- IK03
- Tropicalisation
- 2 conforming to IEC 60068-1
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 75
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480097782
- SAP 1000325962
- Code 81294867
