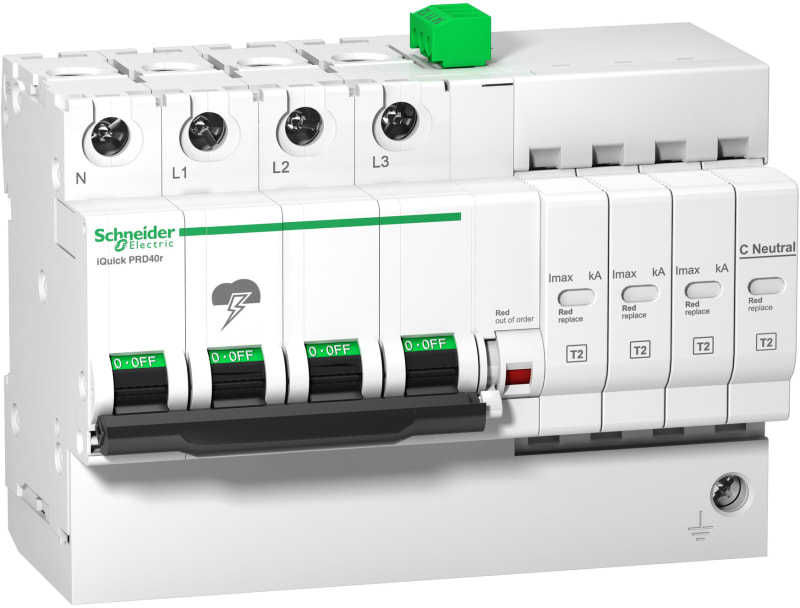

Schneider Electric iQuick PRD20R modular surge arrester - 3 poles + N - 350V - with remote transfer A9L16297
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9L16297 Surge protection device iQuick PRD 20r 3P+N.
Technical Specifications
- Manufacturer part number (MPN)
- A9L16297
- EAN / GTIN
- 3606480387098
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Number of poles
- 3P+N
- Range of product
- IQuick PRD
- Product name
- Acti9 iQuick PRD
- Product or component type
- Surge arrester with pluggable cartridge
- Device short name
- iQuick PRD20r
- Device application
- Distribution
- Standards
- EN 61643-11:2012; IEC 61643-11:2011
- Product certifications
- CE
- Quality labels
- KEMA-KEUR; NF
- Poles description
- 3P + N
- Remote signalling
- With
- Signal contacts composition
- 1 SD (1 C/O)
- Surge arrester type
- Electrical distribution network
- Earthing system
- TT; TN-S
- Surge arrester class type
- Type 2
- Surge arrester technology
- MOV + GDT
- [Ue] rated operational voltage
- 230/400 V AC (+/- 10 %) at 50/60 Hz
- Nominal discharge current
- Common mode: 5 kA (L/PE); Common mode: 5 kA (N/PE); Differential mode: 5 kA (L/N)
- Maximum discharge current
- Common mode: 20 kA L/PE; Common mode: 20 kA N/PE; Differential mode: 20 kA L/N
- [Uc] maximum continuous operating voltage
- Common mode: 264 V N/PE; Common mode: 350 V L/PE; Differential mode: 350 V L/N
- Maximum [Up] voltage protection level
- Common mode 1.5 kV type 2 L/PE; Common mode 1.5 kV type 2 N/PE; Differential mode 1.5 kV type 2 L/N
- Disconnector device type
- Integrated circuit breaker - Icu 25 kA
- Signalling circuit voltage
- 2 A/250 V AC 50/60 Hz
- Mounting mode
- Clip-on (DIN rail)
- 9 mm pitches
- 14.6
- Height
- 94 mm
- Width
- 131.5 mm
- Depth
- 75.9 mm
- Product weight
- 0.84 kg
- Colour
- White (RAL 9003)
- Connections - terminals
- Tunnel type terminal (downside) 2.5…25 mm²; Tunnel type terminal (upside) 2.5…25 mm²
- Tightening torque
- 2.5 N.m
- Compatibility code
- IQuick PRD20r
- IK degree of protection
- IK05 conforming to IEC 62262
- Relative humidity
- 5…95 %
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Warranty (in months)
- 18
- System configuration
- TT
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- Yes
- System configuration other
- No
- Number of conductors (without earthing)
- 4
- Nominal discharge surge current (8/20)
- 5 kA
- Max. discharge surge current (8/20)
- 20 kA
- Short-circuit-proof
- Yes
- Nominal voltage AC
- 400 V
- Max. continuous voltage AC
- 350 V
- Voltage protection level
- 1.5 kV
- Voltage protection level L-N
- 1.5 kV
- Voltage protection level N-PE
- 1.5 kV
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated short-circuit protection
- Yes
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Hungary
