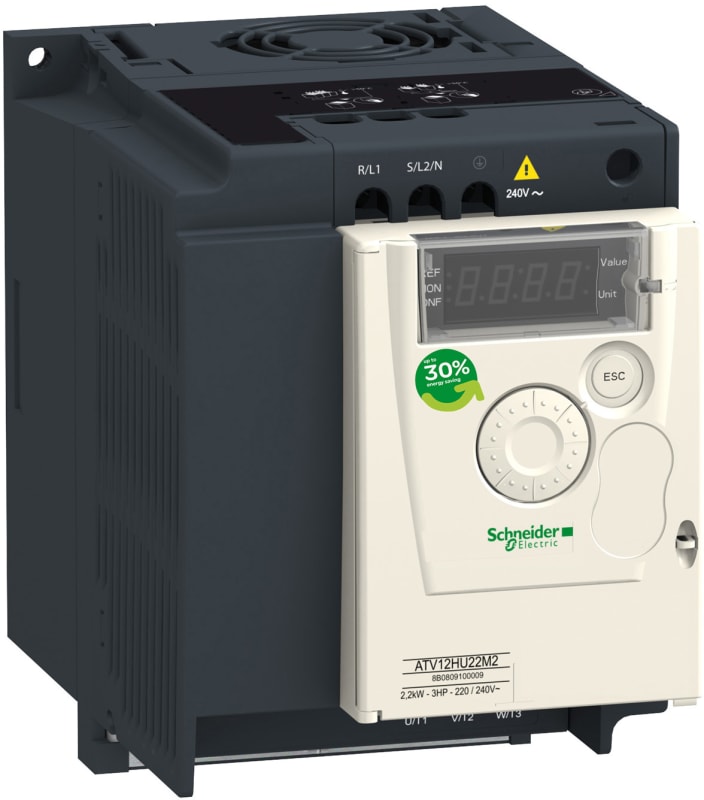

Schneider Altivar 12 ATV12 1.5kW 1PH 200-240V Drive

Schneider Electric ATV12HU15M2 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Altivar 12 variable speed drive, 1.5kW (2HP), single-phase 200-240V input, three-phase motor output. Integrated EMC filter, Modbus RTU.

Series

Altivar 12 (ATV12), Rated Power: 1.5kW (2HP), Supply Voltage: 1-phase 200-240V AC, 50/60Hz, Output Voltage: 3-phase, equal to supply, Control Type: V/f and sensorless flux vector, Communication: Modbus RTU integrated, Emc Filter: Class B integrated, Ip Rating: IP20, Mounting: Wall or DIN rail (with kit)

Power

1.5 kW

Range of product

Altivar 12

Product or component type

Variable speed drive

Product specific application

Simple machine

mounting mode

Cabinet mount

Communication port protocol

Modbus

Supply frequency

50/60 Hz +/- 5 %

[Us] rated supply voltage

200...240 V - 15...10 %

nominal output current

7.5 A

Motor power kW

1.5 kW

Motor power hp

2 hp

EMC filter

Integrated

IP degree of protection

IP20

Discrete input number

4

Discrete output number

2

Analogue input number

1

Analogue output number

1

Relay output number

1

Physical interface

2-wire RS 485

Connector type

1 RJ45

Continuous output current

7.5 A at 4 kHz

Method of access

Server Modbus serial

Speed drive output frequency

0.5…400 Hz

Speed range

1…20

Sampling duration

20 ms, tolerance +/- 1 ms for logic input; 10 ms for analogue input

Linearity error

+/- 0.3 % of maximum value for analogue input

Frequency resolution

Analog input: converter A/D, 10 bits; Display unit: 0.1 Hz

Time constant

20 ms +/- 1 ms for reference change

Transmission rate

9.6 kbit/s; 19.2 kbit/s; 38.4 kbit/s

Transmission frame

RTU

Number of addresses

1…247

Data format

8 bits, configurable odd, even or no parity

Communication service

Read holding registers (03) 29 words; Write single register (06) 29 words; Write multiple registers (16) 27 words; Read/write multiple registers (23) 4/4 words; Read device identification (43)

Type of polarization

No impedance

4 quadrant operation possible

False

Asynchronous motor control profile

Sensorless flux vector control; Quadratic voltage/frequency ratio; Voltage/frequency ratio (V/f)

Maximum output frequency

4 kHz

Transient overtorque

150…170 % of nominal motor torque depending on drive rating and type of motor

Acceleration and deceleration ramps

U; S; Linear from 0 to 999.9 s

Motor slip compensation

Adjustable; Preset in factory

Switching frequency

2...16 kHz adjustable; 4...16 kHz with derating factor

Nominal switching frequency

4 kHz

Braking to standstill

By DC injection

Brake chopper integrated

False

Line current

17.8 A at 100 V (heavy duty); 14.9 A at 120 V (heavy duty)

Maximum input current

14.9 A

Maximum output voltage

240 V

Apparent power

3.6 kVA at 240 V (heavy duty)

Maximum transient current

11.2 A during 60 s (heavy duty); 12.4 A during 2 s (heavy duty)

Network frequency

50...60 Hz

Relative symmetric network frequency tolerance

5 %

Prospective line Isc

1 kA

Base load current at high overload

7.5 A

Power dissipation in W

Forced cooling: 72.0 W

With safety function Safely Limited Speed (SLS)

False

With safety function Safe brake management (SBC/SBT)

False

With safety function Safe Operating Stop (SOS)

False

With safety function Safe Position (SP)

False

With safety function Safe programmable logic

False

With safety function Safe Speed Monitor (SSM)

False

With safety function Safe Stop 1 (SS1)

False

With sft fct Safe Stop 2 (SS2)

False

With safety function Safe torque off (STO)

False

With safety function Safely Limited Position (SLP)

False

With safety function Safe Direction (SDI)

False

Protection type

Line supply overvoltage; Line supply undervoltage; Overcurrent between output phases and earth; Overheating protection; Short-circuit between motor phases; Against input phase loss in three-phase; Thermal motor protection via the drive by continuous calculation of I²t

Tightening torque

1.2 N.m

Insulation

Electrical between power and control

Quantity per set

Set of 1

Width

105 mm

Height

142 mm

Depth

156.2 mm

Product weight

1.4 kg

Operating altitude

> 1000...2000 m with current derating 1 % per 100 m; <= 1000 m without derating

Operating position

Vertical +/- 10 degree

Product certifications

NOM; CSA; C-Tick; UL; GOST; RCM; KC

Marking

CE

Standards

UL 508C; UL 618000-5-1; IEC 61800-5-1; IEC 61800-3

Assembly style

With heat sink

Electromagnetic compatibility

Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2; Immunity to conducted disturbances level 3 conforming to IEC 61000-4-6; Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3; Surge immunity test level 3 conforming to IEC 61000-4-5; Voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Environmental class (during operation)

Class 3C3 according to IEC 60721-3-3; Class 3S2 according to IEC 60721-3-3

Maximum acceleration under shock impact (during operation)

150 m/s² at 11 ms

Maximum deflection under vibratory load (during operation)

1.5 mm at 2...13 Hz

Volume of cooling air

16 m3/h

Overvoltage category

Class III

Regulation loop

Adjustable PID regulator

Electromagnetic emission

Radiated emissions environment 1 category C2 conforming to IEC 61800-3 2...16 kHz shielded motor cable; Conducted emissions with integrated EMC filter environment 1 category C1 conforming to IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m; Conducted emissions with additional EMC filter environment 1 category C1 conforming to IEC 61800-3 4...12 kHz shielded motor cable <20 m; Conducted emissions with additional EMC filter environment 1 category C2 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m; Conducted emissions with additional EMC filter environment 2 category C3 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m; Conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 4...16 kHz shielded motor cable <5 m; Conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <10 m

Vibration resistance

1 gn (f = 13…200 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f = 3…13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6

Shock resistance

15 gn conforming to IEC 60068-2-27 for 11 ms

Relative humidity

5…95 % without condensation conforming to IEC 60068-2-3; 5…95 % without dripping water conforming to IEC 60068-2-3

Noise level

45 dB

Pollution degree

2

Ambient air transport temperature

-25…70 °C

Ambient air temperature for operation

-10…50 °C without derating; 50…60 °C with current derating 2.2 % per °C

Ambient air temperature for storage

-25…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

ID

Warranty (in months)

18

EAN

3606480071096

Standard

IEC 61800-5-1; IEC 61800-3

Classification / Approval

CE, UL, CSA, RCM, EAC

HS Code

8504.40
