Schneider Acti 9 IC60N MCB 1P 6A C-Curve

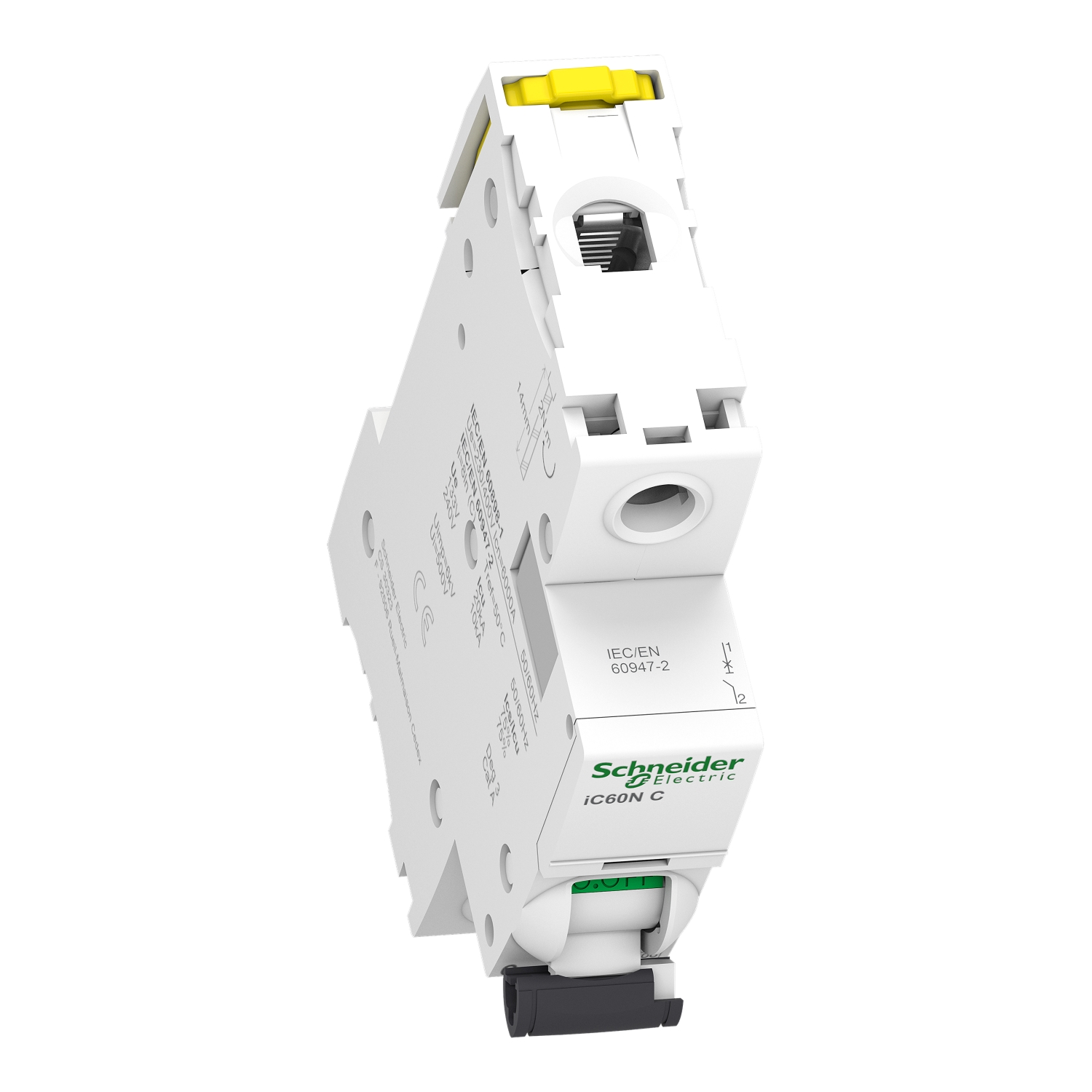

Schneider Electric A9F77106 — Acti9 iC60 MCB. Miniature circuit breaker per IEC 60898, DIN-rail modular. Acti 9 iC60N single-pole miniature circuit breaker, 6A C-curve, 10kA breaking capacity at 230/400V AC per IEC 60947-2 and 6kA per IEC 60898-1. Installed as the primary motor branch-circuit protection device between the incoming feeder and the contactor.

Series

Acti 9 iC60N, Poles: 1P, Rated Current: 6A, Curve: C, Breaking Capacity: 10kA at 415V (IEC 60947-2), 6kA at 230/400V (IEC 60898-1), Rated Voltage: 230/400V AC, Width: 18mm (1 module), Mounting: 35mm DIN rail, Terminal Capacity: 1-25 mm2, Operating Temperature: -25C to +60C

Number of poles

1

Rated current

6 A

Range

Acti9

Product name

Acti9 iC60

Product or component type

Miniature circuit-breaker

Device short name

IC60N

Device application

Distribution

Poles description

1P

Number of protected poles

1

[In] rated current

6 A

Network type

AC; DC

Trip unit technology

Thermal-magnetic

Curve code

C

Utilisation category

Category A conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to EN/IEC 60898-1; Yes conforming to EN/IEC 60947-2

Standards

EN/IEC 60947-2; EN/IEC 60898-1

Quality labels

NF

Network frequency

50/60 Hz

[Ue] rated operational voltage

12...60 V AC 50/60 Hz; 100...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 12...60 V DC; 60...72 V DC

Magnetic tripping limit

8 x In +/- 20 %

Breaking capacity

36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2; 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2; 10 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2; 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1

[Ics] rated service breaking capacity

27 kA 75 % x Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA 75 % x Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2; 7.5 kA 75 % x Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA 100 % x Icu at 12...60 V DC conforming to EN/IEC 60947-2; 10 kA 100 % x Icu at 60...72 V DC conforming to EN/IEC 60947-2

Limitation class

3 conforming to EN/IEC 60898-1

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

Trip indicator

mounting mode

Clip-on; Removable comb busbar installed

Mounting support

35 mm DIN rail

Comb busbar and distribution block compatibility

Top or bottom: YES

Connection pitch

18 mm between devices

9 mm pitches

2

Height

85 mm

Width

18 mm

Depth

78.5 mm

Product weight

0.215 kg

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible with ferrule, copper; Single terminal (top or bottom) , for 1.0 cable(s) , flexible, copper or aluminium, with ring terminal and accessory

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Without

IP degree of protection

IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

0...2000 m

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

132

Warranty (in months)

18

Standard

IEC 60898-1; IEC 60947-2

Classification / Approval

CE, CB, RoHS, EAC

HS Code

8536.20
