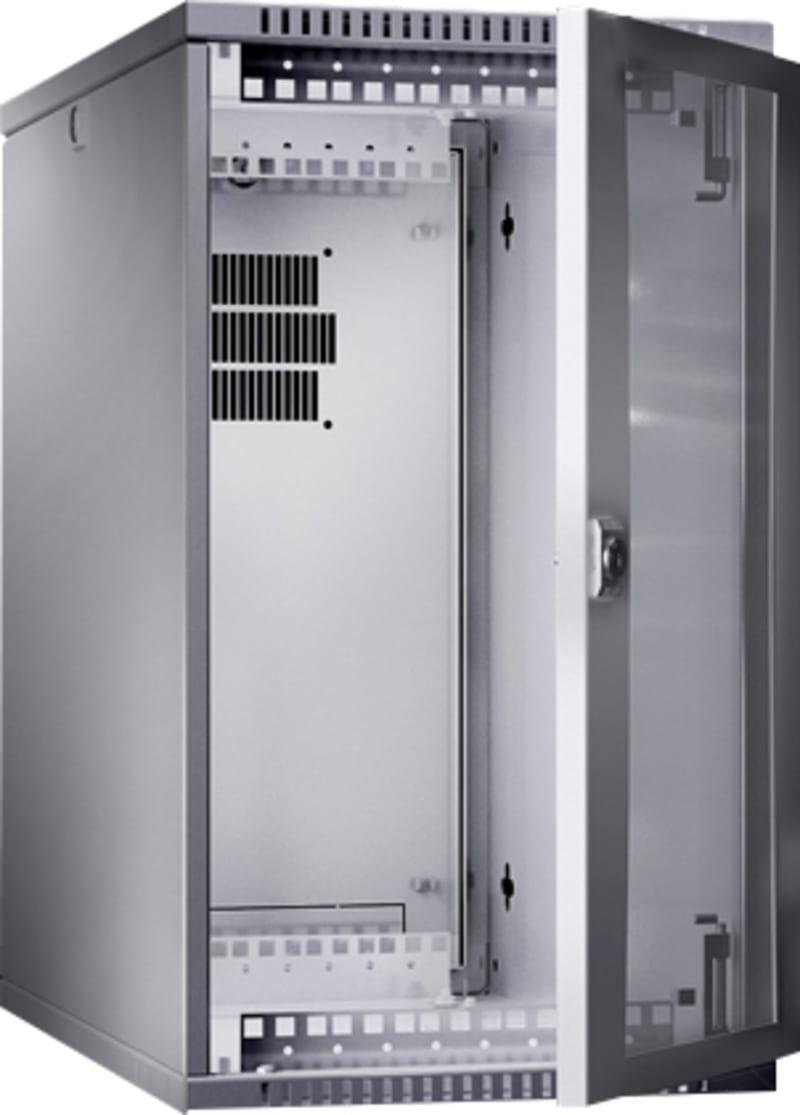

Verticalbox, 5U with glassdoor
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7501000 Manufacturer description: DK VerticalBox, compact 19" case for small networks, with vent slots for passive ventilation, 5 U, WHD: 300x540x600 mm. Verticalbox, 5U with glass door.
Technical Specifications
- Manufacturer part number (MPN)
- 7501000
- EAN / GTIN
- 4028177625426
- Sales unit
- pcs
- Model designation
- DK 7501.000
- Product type
- VerticalBox
- Material
- Carbon steel; Viewing window: Single-pane safety glass, 3 mm
- Surface finish
- Powder-coated
- Color
- RAL 7035
- Supply includes
- Housing with viewing door; Side panels (1 x fixed, 1 x slot-in) with vent slots; Knockouts for cable entry via roof or base; Slot-in rear panel with knockouts for cable entry and fan accommodation; 19" mounting level, 5 U, horizontal front and rear, depth-variable, distance between levels 434 – 489 mm; Security lock 12321 on the door, side and rear panel; 4 plastic feet, self-adhesive
- Height units
- 5U
- Dimensions
- Width: 300 mm; Height: 540 mm; Depth: 600 mm
- Installation height for components
- 5U
- Base material
- Carbon steel
- Load capacity
- 250 N
- Packaging unit
- 1 pc(s).
- Net weight
- 16.188 kg
- Gross weight
- 17.04 kg
- PCF/VE (cradle-to-gate)
- 64.9 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002500
- ECLASS 8.0
- 27180208
- Mounting level
- Front side
- Type of profile rail
- L-shape
- Number of doors
- 1
- Type of ventilation
- None
- Width
- 300 mm
- Height
- 540 mm
- Depth
- 600 mm
- Number of height units
- 5
- Max. load capacity
- 45 kg
- With roof plate
- No
- With earthing
- No
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- No
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177625426
- SAP 1000716080
- Code 8252219
Product Documentation
More from Rittal
Rittal
Cable Gland M25X1,5 10/frp
2411831
Rittal

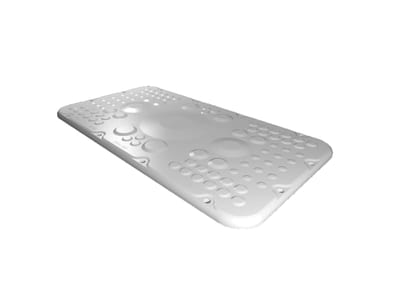

Rittal 2566300 SZ Plastic Gland Plate with Diaphragms for AX, 401 x 221 mm, Size 6
