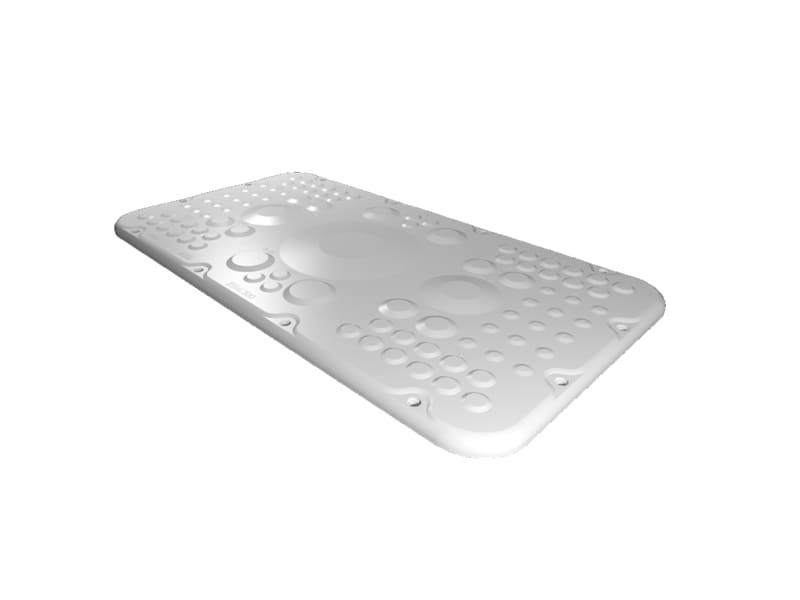

Rittal 2566300 SZ Plastic Gland Plate with Diaphragms for AX, 401 x 221 mm, Size 6
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SZ 2566.300 is a UL 94-V0 plastic gland plate with pre-fitted diaphragms for AX enclosures, gland-plate size 6, dimensions 401 x 221 mm and 95 connector-hole positions accepting 30 cable entries at Ø 5-11 mm. Rated IP66 when correctly installed, UL Type 1/Type 12, colour similar to RAL 7035. Supplied in packs of 17.
Technical Specifications
- Manufacturer part number (MPN)
- 2566300 EAN / GTIN: 4028177935709 Sales unit: pcs Package quantity: 17 pcs Model designation: SZ 2566.300 Product type: Plastic Cable Gland Plates material: Plastic to UL 94-V0 Color: Similar to RAL 7035 Dimensions: Width: 401 mm; Depth: 221 mm Gland plate: Size: 6 Protection category IP to EN 60 529: IP 66 if correctly installed Type rating according to UL 50E: Type 1; Type 12 Quantity of cable entries and Ø: 30 x 5-11 Packaging unit: 1 pc(s). Net weight: 0.752 kg Gross weight: 0.76 kg Customs tariff number: 39269097 ETIM 9: EC000211 ETIM 8: EC000211 ECLASS 8.0: 27142421 Approvals: UL + C-UL - FTTA Width: 401 mm Depth: 221 mm Surface protection: Untreated Pre-stamping: No Thread type: None Number of connector holes: 95 Country of origin: Finland
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177935709
- SAP 1200380138
- Code 82389178
