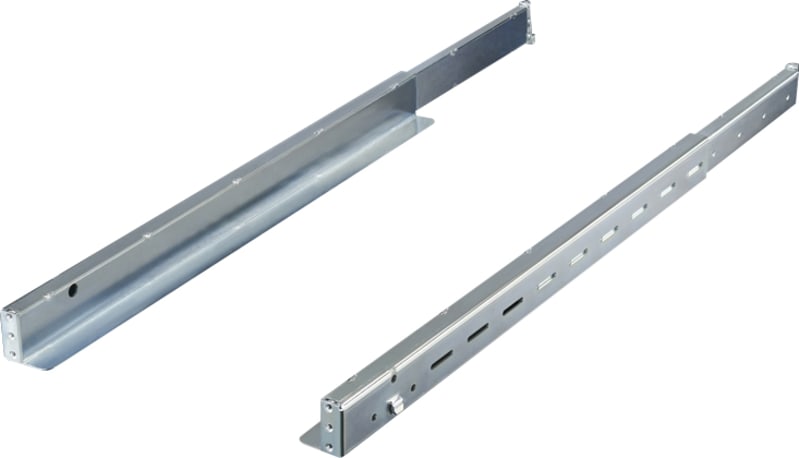

Gliderail TS IT (5501460)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5501460 Manufacturer description: DK Slide rail, support surface width: 25 mm, depth-variable, 80 kg, For two 482.6 mm (19")-mounting angles (front+rear), distance between levels:: 400-600 mm. Glideskinne TS IT Pack of 2 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- 5501460
- EAN / GTIN
- 4028177679016
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- DK 5501.460
- Product type
- Slide Rails, 1U, Depth-Variable
- Applications
- For assembly on the front mounting level; To support heavy installed equipment.; To adapt to individual distances between 19" levels
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Installation options
- 482.6 mm (19") L-profile rails, front and rear; 482.6 mm (19") mounting frames, front and rear for 19" standard profile rails
- Load capacity
- 800 N
- Distance between levels
- 400 ‐ 600 mm
- Packaging unit
- 2 pc(s).
- Net weight
- 2.164 kg
- Gross weight
- 2.34 kg
- PCF/VE (cradle-to-gate)
- 9 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Model
- Sliding rail
- Width
- 35 mm
- Depth
- 500 mm
- Max. load capacity
- 80 kg
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177679016
- SAP 1000508112
- Code 8765247
Product Documentation
More from Rittal
Rittal
Rittal AX 6315.350 Operating Housing with Handle, 380 x 380 x 210 mm
6315350
Rittal
2 stkVX IT Mountingsvinkl std FRONT 42HE
5302106
Rittal

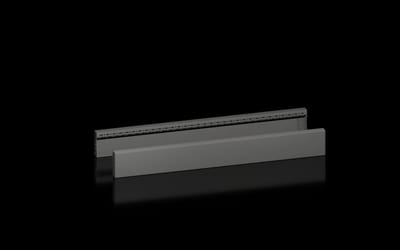

Base panels VX on the side 100X1000
8660035
Rittal

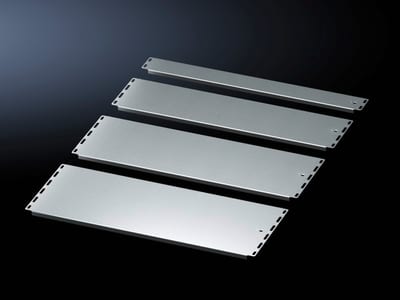

VX IT Gland Plate 800X1200 mm
5301347
Rittal
VX IT-Mountingsvinkler std rear 15HE
5302101
Rittal

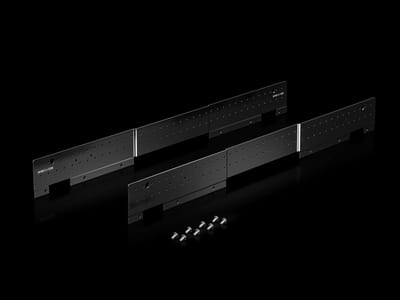

VX IT Depth Stay Profile B600 D1000
5302161
Rittal

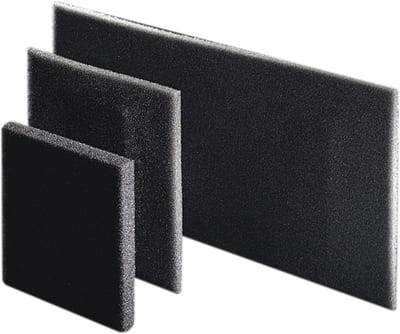

Filter Mat for 3302/3303
