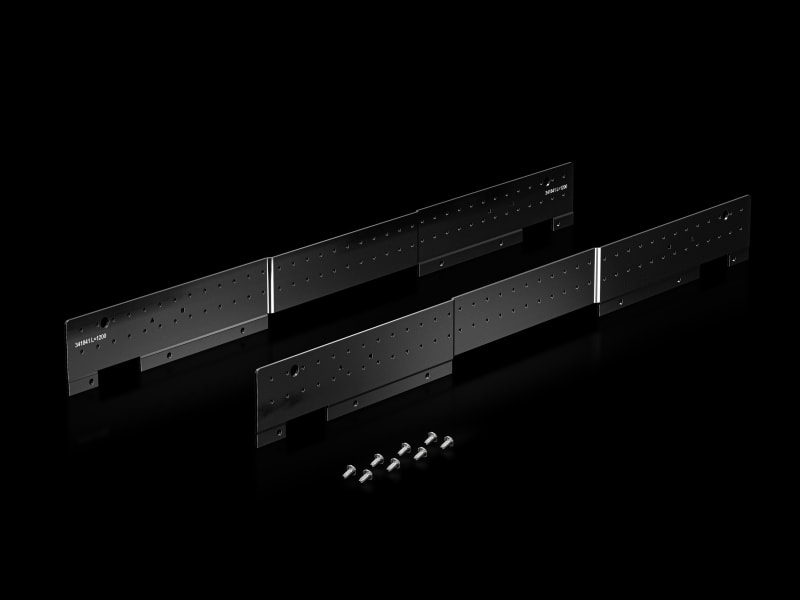

VX IT Depth Stay Profile B600 D1000
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5302161 VX IT depth stay for 19-inch dynamic enclosures, sized for 600 mm wide by 1000 mm deep frames. Sheet steel construction with spray-finished RAL 9005 coating; assembly parts and four support strips (2 top, 2 bottom) included. Required for enclosures deeper than 1000 mm and wider than 600 mm to secure the mounting angles.
Technical Specifications
- Manufacturer part number (MPN)
- 5302161
- EAN / GTIN
- 4028177955585
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- VX 5302.161
- Product type
- Depth stays
- Design
- for VX IT 482.6 mm (19") mounting angles, dynamic
- Material
- Sheet steel
- Surface finish
- Spray-finished
- Colour
- RAL 9005
- Supply includes
- Depth stays; Assembly parts; 4 support strips (2 top, 2 bottom)
- Assembly instruction
- For the attachment of mounting angles in enclosures that are greater than 1000 mm deep and greater than 600 mm wide, an additional support rail for VX IT is required
- To fit
- Enclosure type: VX IT, dynamic; Width: > 600 mm; Depth: = 1,000 mm
- Net weight
- 10 kg
- Gross weight
- 10.36 kg
- PCF per pack (cradle-to-gate)
- 39.5 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 2000 mm
- Suitable for enclosure building depth
- 1000 mm
- Width
- 600 mm
- RAL-number
- 9005
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177955585
- SAP 1200493101
- Code 82691257
Product Documentation
