Rittal
GA aluminium box 58X64X36
Part number9101210EAN / GTIN4028177145337HS code8487.90
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

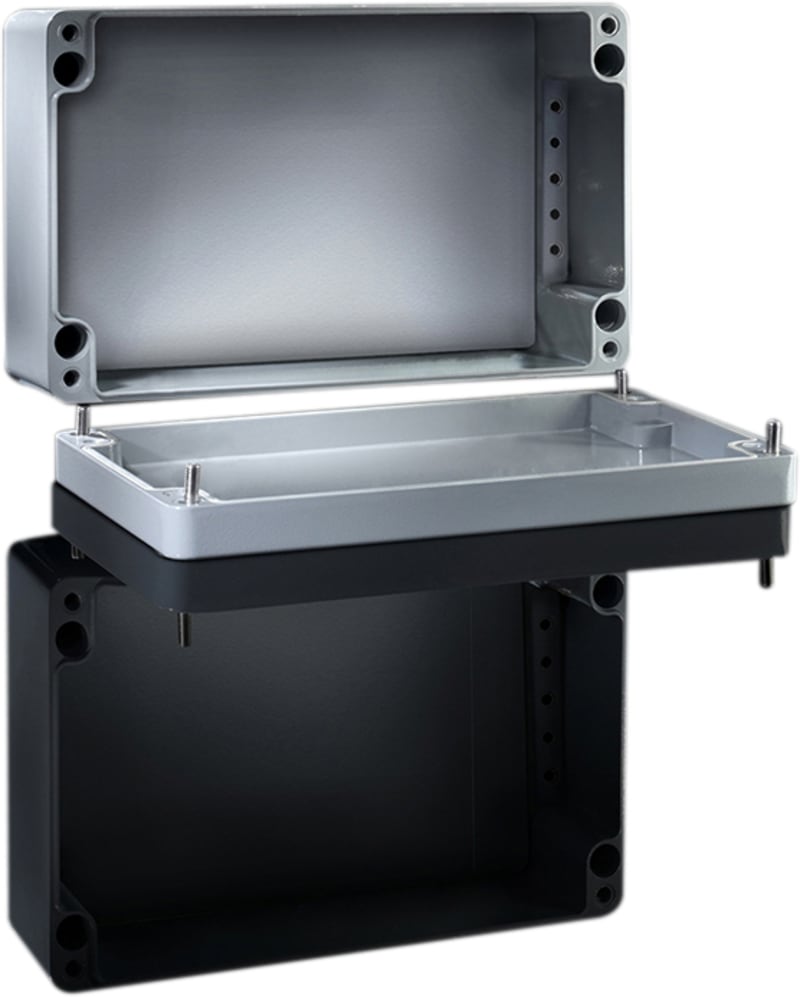

Rittal 9101210 Manufacturer description: GA Cast aluminium enclosure, WHD: 58x64x34 mm, Cast aluminum, without mounting plate, with cover. Rittal GA aluminium box.
Technical Specifications
- Manufacturer part number (MPN)
- 9101210
- EAN / GTIN
- 4028177145337
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Model designation
- GA 9101.210
- Product type
- Cast aluminum housing GA
- Material
- Housing: Cast aluminum; Cover: cast aluminum, all-round CR foam rubber round core seal
- Surface finish
- Textured paint
- Color
- RAL 7001
- Supply includes
- Housing with cover; Cover screws, captive; Screws for attaching support rails; Screw for connection of the PE conductor
- Protection category NEMA
- NEMA 4
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Dimensions
- Width: 58 mm; Height: 64 mm; Depth: 36 mm
- Base material
- Cast aluminum
- Packaging unit
- 5 pc(s).
- Net weight
- 0.825 kg
- Gross weight
- 0.875 kg
- Customs tariff number
- 84879090
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Colour
- Grey
- Width
- 58 mm
- Height
- 64 mm
- Depth
- 36 mm
- RAL-number
- 7001
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 31.3 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- India
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177145337
- SAP 1000282915
- Code 8985749
Product Documentation
Document preview: Rittal 9101210 — Data Sheet (OEM)
