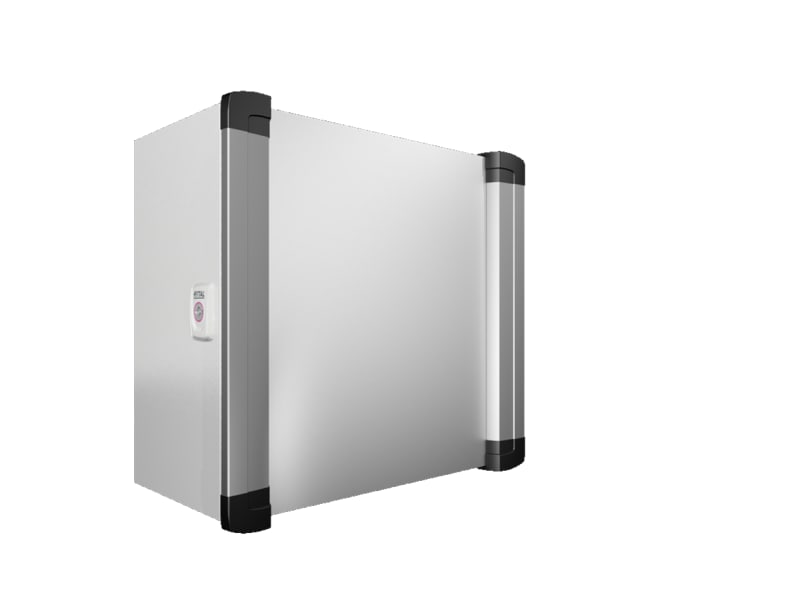

Rittal AX 6315.350 Operating Housing with Handle, 380 x 380 x 210 mm

Rittal 6315350 is an AX operating housing with aluminium handle strips, sized 380 x 380 x 210 mm (W x H x D). The carbon-steel housing has a support-arm connection cut-out (Ø 130 mm) and a front covered by a machinable 3 mm aluminium panel, giving front access for servicing. Protection ratings are NEMA 1/12 and impact rating IK08, with the housing finished in RAL 7035 and the front and handle strips naturally anodised. It is used for HMI and control interfaces mounted on Rittal support-arm systems.

Manufacturer part number (MPN)

6315350

EAN / GTIN

4028177923157

Sales unit

pcs

Model designation

AX 6315.350

Product type

Operating housing AX with handle

Version

Support arm connection Ø 130 mm

Material

Housing: Carbon steel; Door: Carbon steel, all-round foamed-in PU seal; Front panel: Aluminum; Cover caps: Plastic

Surface finish

Housing and door: Dipcoat primed, powder-coated on the outside, textured paint; Handle strip: Natural anodized; Front panel: Natural anodized.

General color

RAL 7035

Color

Housing and door: RAL 7035; Handle strip: Natural anodized; Front panel: Natural anodized.; Cover caps: Similar to RAL 7024

Supply includes

Housing with cut-out and reinforcement for support arm connection; Ø 130 mm; Front with maximum cut-out, covered with easily machinable 3 mm aluminum front panel; Side handle strips with cover caps; Integral interior mounting bracket with system punchings; Cam lock with 3 mm double-bit insert

Dimensions

Width: 380 mm; Height: 380 mm; Depth: 210 mm

Protection category NEMA

NEMA 1; NEMA 12

Type rating according to UL 50E

Type 1; Type 12

IK code

IK08

Base material

Carbon steel

Note on Model No.

Compatible mounting plate 5051.371 with shipping bag 5051.300

Packaging unit

1 pc(s).

Net weight

9.23 kg

Gross weight

9.26 kg

PCF/VE (cradle-to-gate)

40.7 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

94032080

ETIM 9

EC002504

ETIM 8

EC002504

ECLASS 8.0

27180505

Approvals

UL + C-UL (listed)

Width

380 mm

Height

380 mm

Depth

210 mm

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (NEMA)

12

Country of origin

Germany

HS Code

7326.90

• EAN 4028177923157
• SAP 1200380108
• Code 82389448
