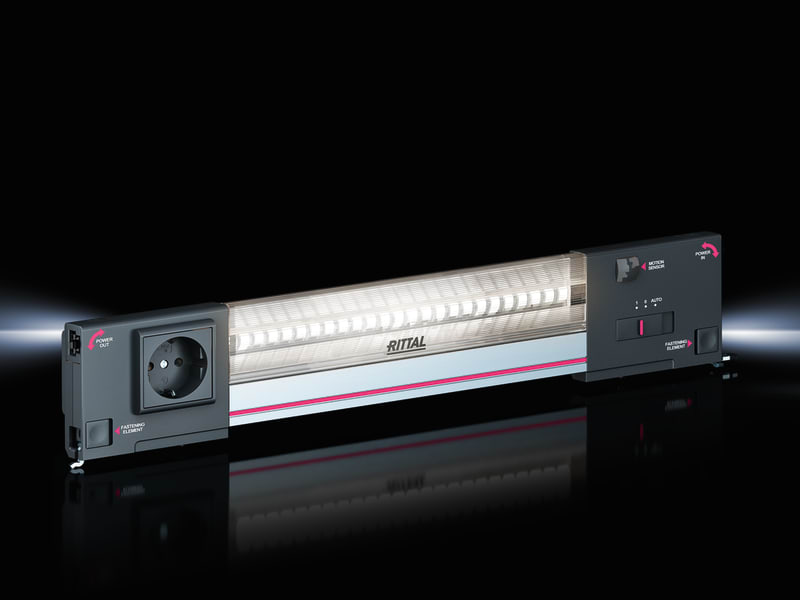

Rittal SZ 2500.200 LED System Light 900 lm 11 W
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2500200 is an SZ 2500.200 LED system light delivering 900 lm at 4000 K neutral white from an 11 W module in an extruded aluminium body with polycarbonate cover. The luminaire operates on 100-230 V AC, 50/60 Hz, offers IP20 protection, class II total insulation, and connects via a three-pole power supply with optional through-wiring and door-operated switching. Tool-free screw, clip or magnetic mounting suits enclosure sections on a 25 mm pitch pattern. Typical application is interior illumination of control cabinets and switchgear enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- 2500200
- EAN / GTIN
- 4028177806955
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Model designation
- SZ 2500.200
- Product type
- LED system light
- Version
- without socket
- Material
- Light body: Extruded aluminum; Light cover: polycarbonate; Light ends: PC-ABS
- Color
- Enclosure: RAL 7016
- Supply includes
- Assembly screws
- Rated power
- 11 W
- Connection options
- Power Supply, 3-pole; Through-wiring, 3-pole; Door-operated switch
- Overvoltage category
- II
- Protection category
- II (total insulation)
- Light – installation type
- Screw fastening; Clip fastening; Magnetic fastener (accessories)
- Rated insulation voltage
- 300 V AC
- Installation options
- Directly onto the enclosure section with 25 mm pitch pattern
- Luminous flux
- 900 lm
- Light color
- 4000 K (neutral white)
- Dimensions
- Width: 437 mm; Height: 75 mm; Depth: 23 mm
- Operating temperature range
- -20 °C...55 °C; -4 °F...131 °F
- Rated operating voltage
- 100 V - 230 V, 1~, 50 Hz/60 Hz
- Protection category IP to IEC 60 529
- IP 20
- Packaging unit
- 1 pc(s).
- Net weight
- 0.426 kg
- Gross weight
- 0.56 kg
- PCF/VE (cradle-to-gate)
- 13.2
- Customs tariff number
- 94054940
- ETIM 9
- EC000321
- ETIM 8
- EC000321
- ECLASS 8.0
- 27189241
- Approvals
- CCC exception letter; ENEC; 30 - KC Korea; UL
- Lamp power
- 11 W
- Voltage type
- AC
- Rated voltage
- 230 V
- With socket outlet
- No
- With on/off switch
- No
- With light sensor
- No
- Length
- 437 mm
- Lamp type
- LED not exchangeable
- Suitable for 19 inch mounting
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 7610.10
Cross References
- EAN 4028177806955
- SAP 1000760257
- Code 8529674
Product Documentation
