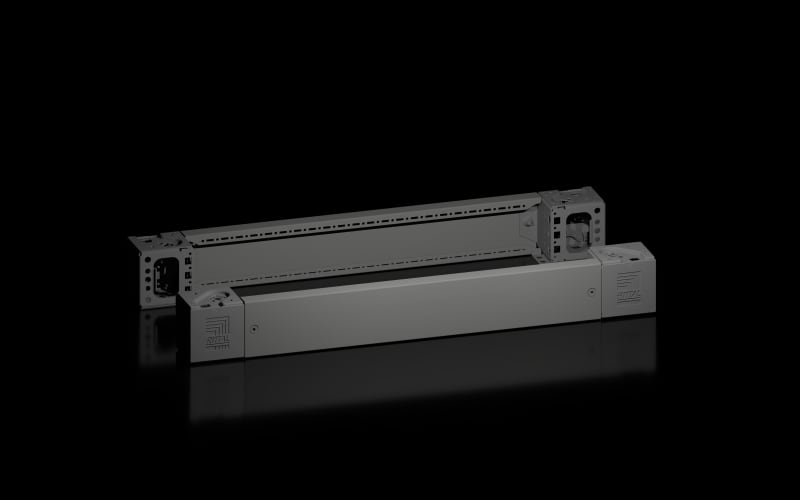

Plinth VX incl. front/rear panel 100X800
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8660003 Manufacturer description: VX base corner piece with base trim panel, front and rear, : 100 mm, for W H: 800 mm, carbon steel. VX plinth corner profile with plinth panel, front and rear, H: 100 mm, for B: 800 mm, steel plate.
Technical Specifications
- Manufacturer part number (MPN)
- 8660003
- EAN / GTIN
- 4028177978058
- Sales unit
- set
- Package quantity
- 2 set
- Model designation
- VX 8660.003
- Material
- Base/plinth corner piece: Carbon steel; Base/plinth trim panels, front/rear: Carbon steel; Corner and baying covers: Plastic
- Color
- RAL 9005
- Supply includes
- 4 x corner covers; Assembly components; 4 x base/plinth corner pieces, 100 mm high; 2 x base/plinth trim panels, front/rear, 100 mm high
- Dimensions
- Height: 100 mm
- Type rating according to UL 50E
- Type 1; Type 12
- Weight/packaging unit
- 5.42 kg; 11.9 lb.
- Packaging unit
- 2 pc(s).
- Net weight
- 5.2 kg
- Gross weight
- 5.218 kg
- PCF/VE (cradle-to-gate)
- 19.38 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94039910
- ETIM 9
- EC000721
- ETIM 8
- EC000721
- ECLASS 8.0
- 27182003
- Approvals
- UL + C-UL - FTTA
- Colour
- Black
- Width
- 800 mm
- Model
- Base front/back
- Height
- 100 mm
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building width
- 800 mm
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- No
- Suitable for outdoor installation
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177978058
- SAP 1200718174
- Code 83833493
Product Documentation
More from Rittal
Rittal
Compact enclosure AX 500X500X300 Rf
1013000
Rittal
Plastic Enclosure AX 400X400X200
1444000
Rittal
Rittal AX 1485.600 Mini-Comfort Rotary Handle for AX Plastic Enclosure
1485600
Rittal
Rittal SZ LED Connection Cable, Power Supply Infeed, 3-Pole, 100-240 V, 3 m, UL
2500500
Rittal
Compact enclosure AX 600X600X250
1054000
Rittal
Plastic Enclosure AX m. window 600X800X300
1469000
Rittal
Plinth VX incl. front/rear panel 200X800
8660023
Rittal
Rain hood filter/fan 3240/3241
3240080
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8660003?
- 8660003 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 8660003.
- What is the HS code for 8660003?
- The customs tariff (HS) code for 8660003 is 9403.99.
- Who manufactures 8660003?
- 8660003 is a Rittal product in the Enclosures range.
- Is a datasheet available for 8660003?
- Yes — the 8660003 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8660003?
- The minimum order quantity is 1.
- Is 8660003 available?
- Yes — 8660003 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
