Rittal

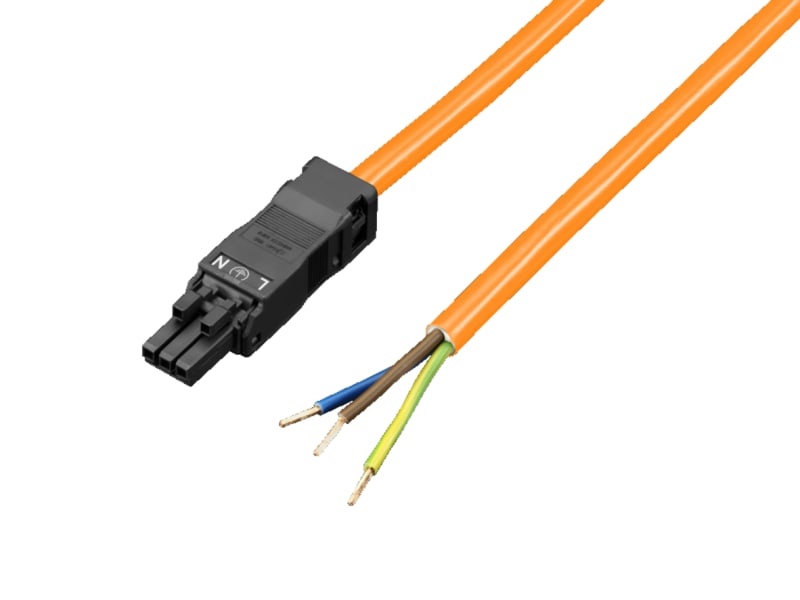

Rittal SZ LED Connection Cable, Power Supply Infeed, 3-Pole, 100-240 V, 3 m, UL
Part number2500500EAN / GTIN4028177811379HS code8544.42
Switchgear & Protection
DIN Rail Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2500500 Manufacturer description: SZ Connection cable, for power supply, 3-pole, 100-240 V, L: 3000 mm, UL. Connection Wire, for power supply, 3-pole, 100-240 V, L: 3000 mm, UL.
Technical Specifications
- Manufacturer part number (MPN)
- 2500500
- EAN / GTIN
- 4028177811379
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Model designation
- SZ 2500.500
- Product type
- Connection cable
- Version
- Infeed, 3-pole (with socket, without connector)
- Color
- Orange
- Length
- 3,000 mm
- AWG
- AWG 16
- Standards
- Mains connection cables: AVLV2; Mains connector: ECBT2
- Dimensions
- Length: 3,000 mm
- Rated operating voltage
- 100 V - 240 V, 1~, 50 Hz/60 Hz
- Packaging unit
- 1 pc(s).
- Net weight
- 0.345 kg
- Gross weight
- 0.359 kg
- Customs tariff number
- 85444290
- ETIM 9
- EC001576
- ETIM 8
- EC001576
- ECLASS 8.0
- 27060402
- Connection 1
- AS/NZS 2 pin plugtop
- Connection 2
- Free conductor end
- System-oriented connector system
- No
- Number of cores
- 3
- Nominal cross section conductor
- 16 mm²
- Temperature resistance
- 0–40 °C
- Nominal voltage
- 240 V
- Frequency
- 50–60 Hz
- Colour outer sheath
- Orange
- Spiralized cable
- No
- Oil resistant according to EN IEC 60811-404
- No
- With cord switch
- No
- Outer diameter approximate
- 8 mm
- Reaction-to-fire according to EN 13501-6
- Class: None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177811379
- SAP 1000794754
- Code 81413591
Product Documentation
Document preview: Rittal 2500500 — Data Sheet (OEM)
